Testing Condition

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

WITH CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

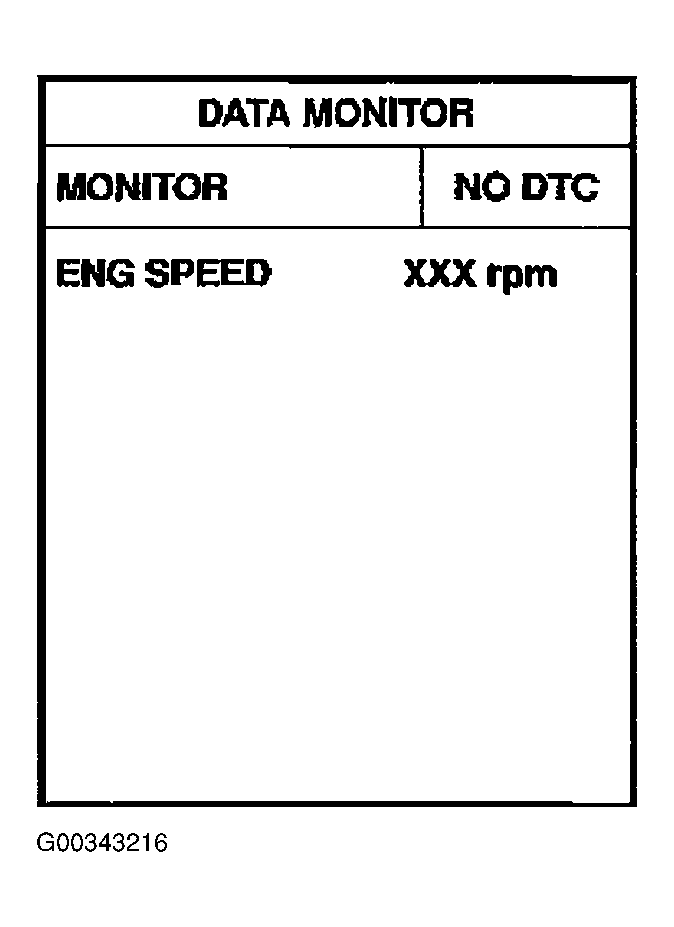

Fig 1: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure "WITH CONSULT-II" above.
