Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and the housing.
  OK or NG
  1. OK: GO TO 2.
  2. NG: Remove the foreign matter and clean the electric throttle control actuator inside.

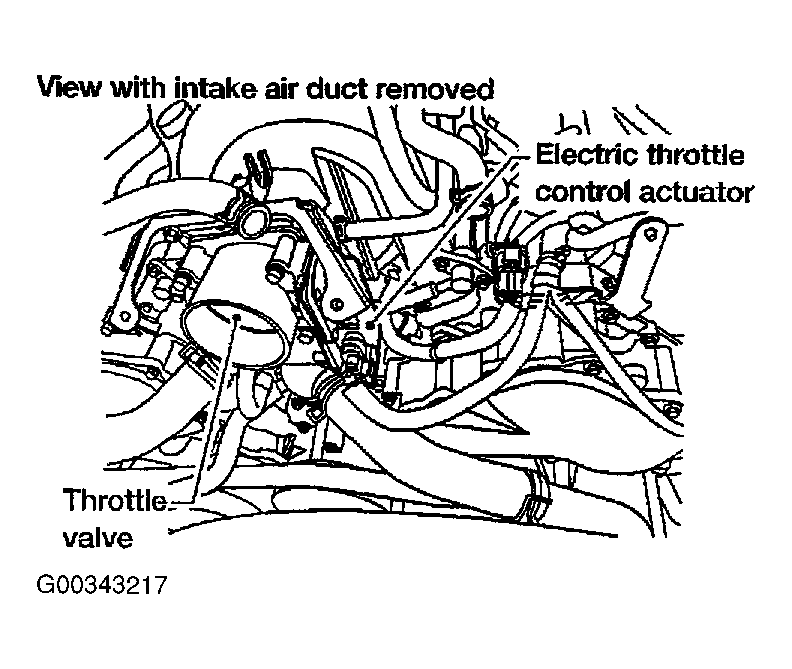

  Fig 1: Locating Electric Throttle Control Actuator
  Courtesy of NISSAN MOTOR CO., U.S.A.
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform THROTTLE VALVE CLOSED POSITION LEARNING in BASIC DIAGNOSTIC PROCEDURES - TITAN article.
3. Perform IDLE AIR VOLUME LEARNING in BASIC DIAGNOSTIC PROCEDURES - TITAN article.
  1. : INSPECTION END
