Testing Condition

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

With CONSULT-II

Start engine (VDC switch OFF).
Select "DATA MONITOR" mode with CONSULT-II.
Drive the vehicle at more than 40 km/h (25 MPH).
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

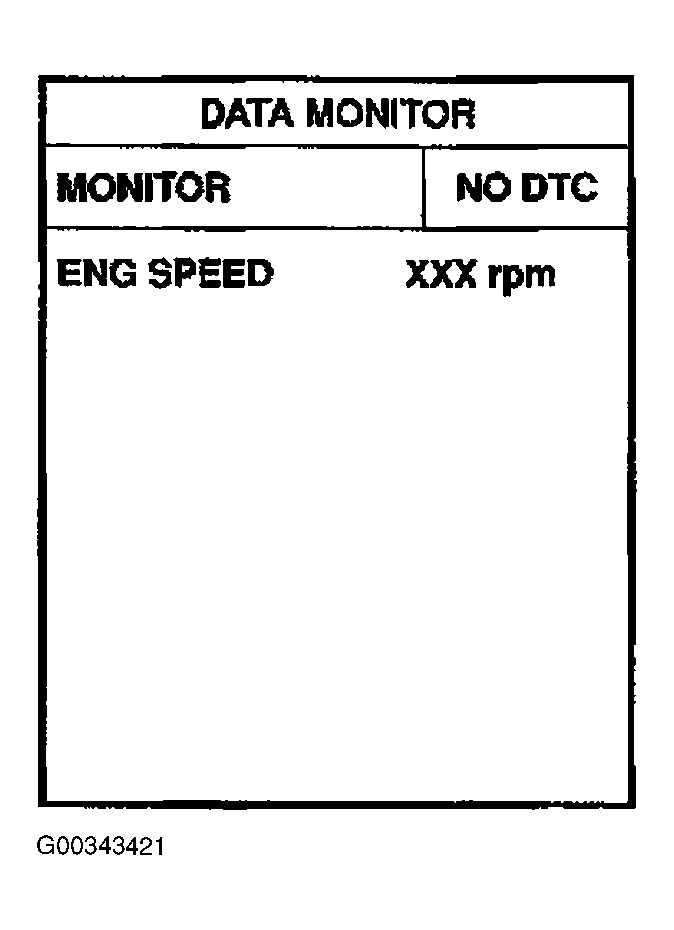

Fig 1: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure "WITH CONSULT-II" above.
