ECM Inspection Table

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

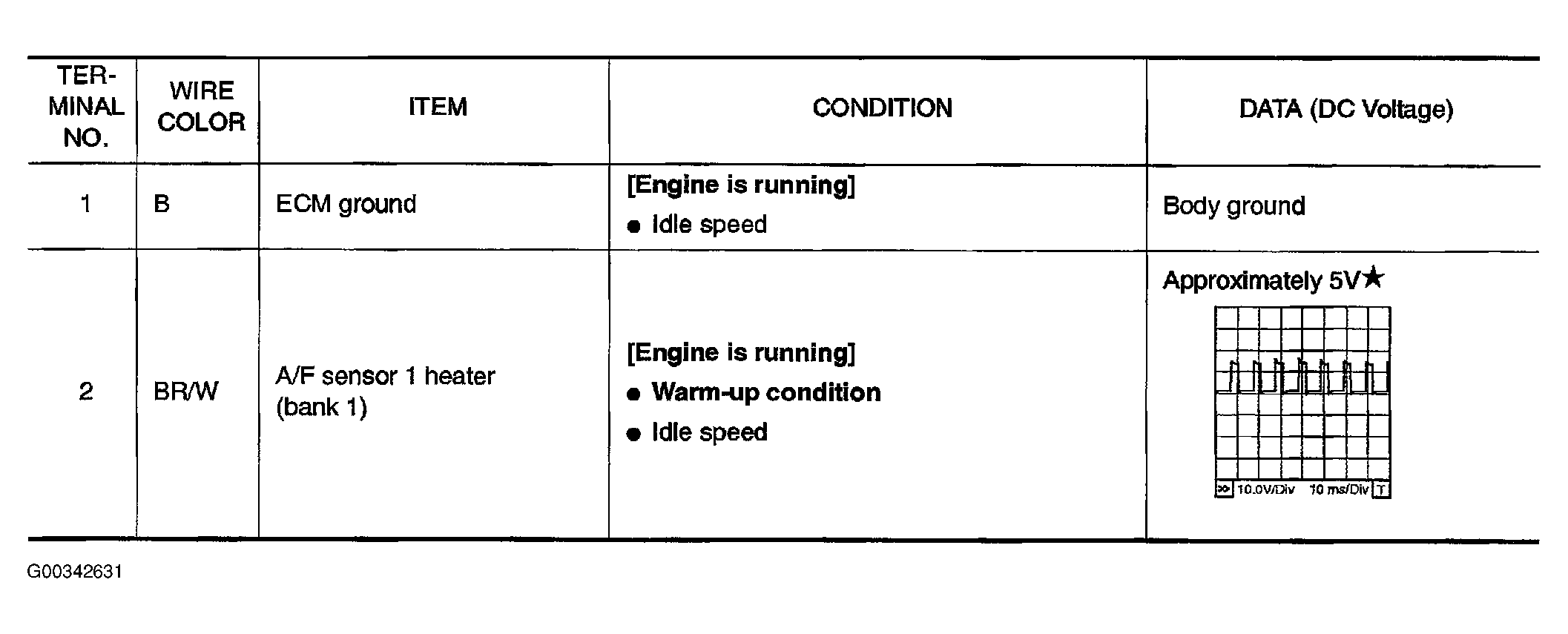

Fig 1: ECM Pin Voltage Chart (1 Of 8)
G00342631Courtesy of NISSAN MOTOR CO., U.S.A.

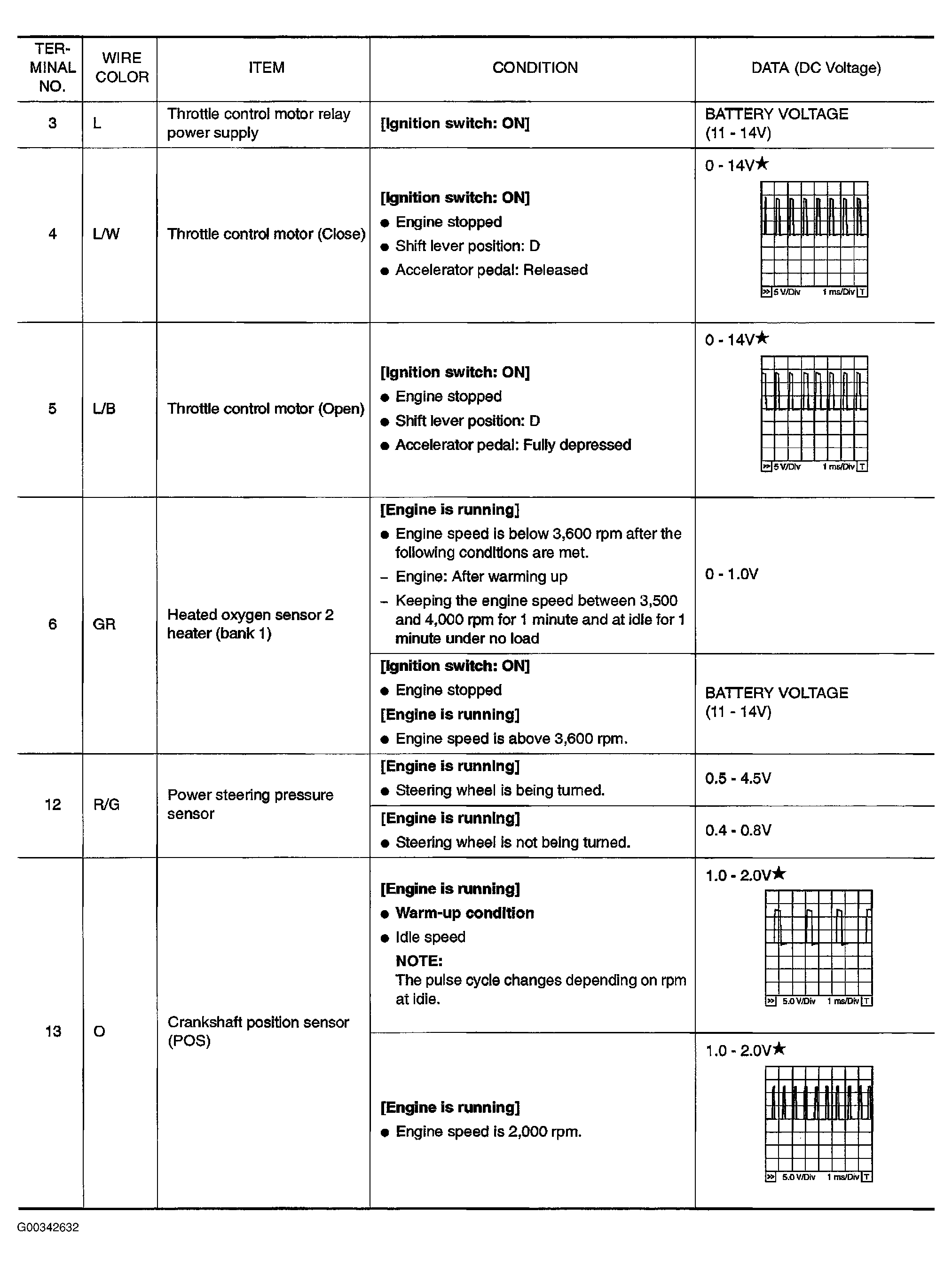

Fig 2: ECM Pin Voltage Chart (2 Of 8)
G00342632Courtesy of NISSAN MOTOR CO., U.S.A.

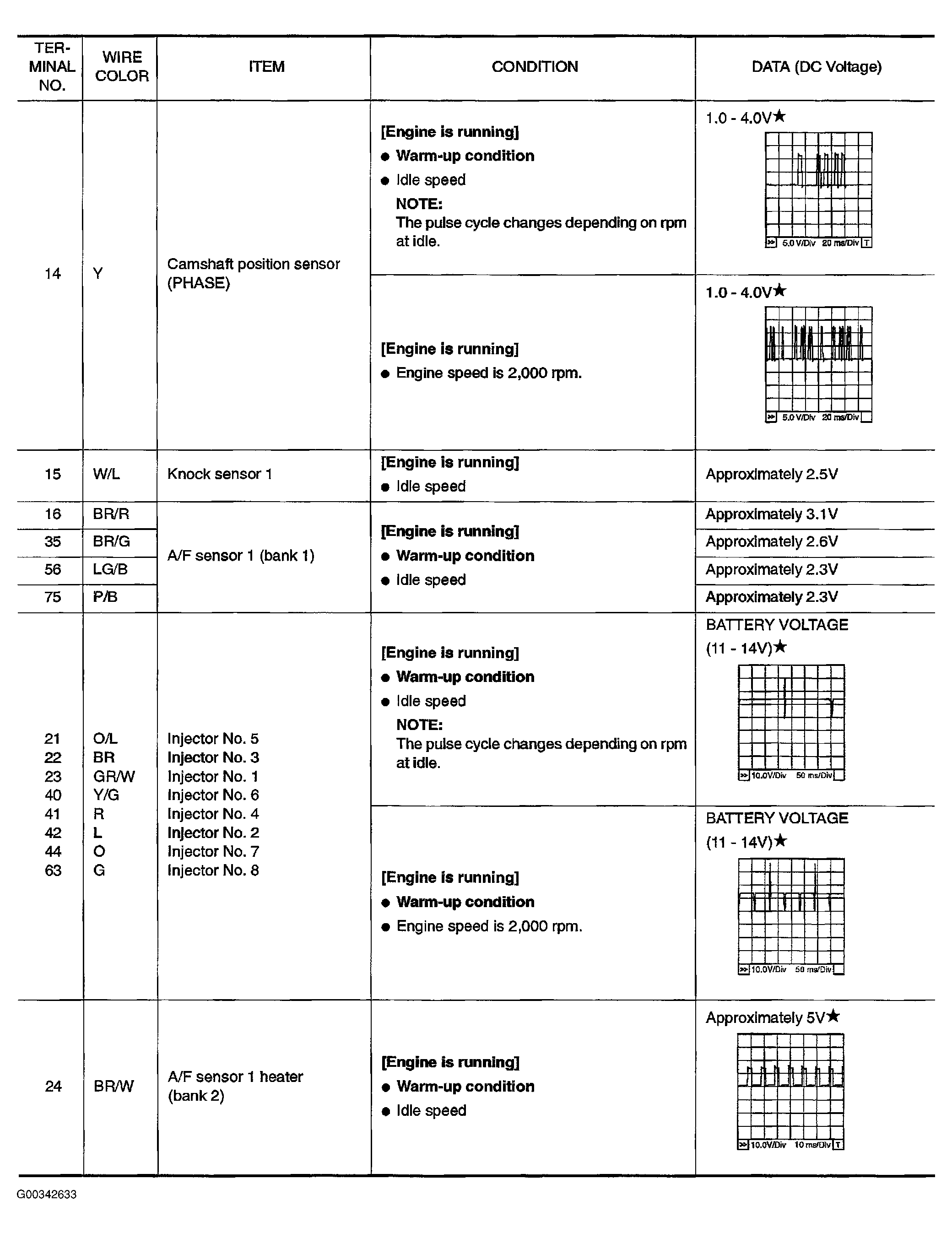

Fig 3: ECM Pin Voltage Chart (3 Of 8)
G00342633Courtesy of NISSAN MOTOR CO., U.S.A.

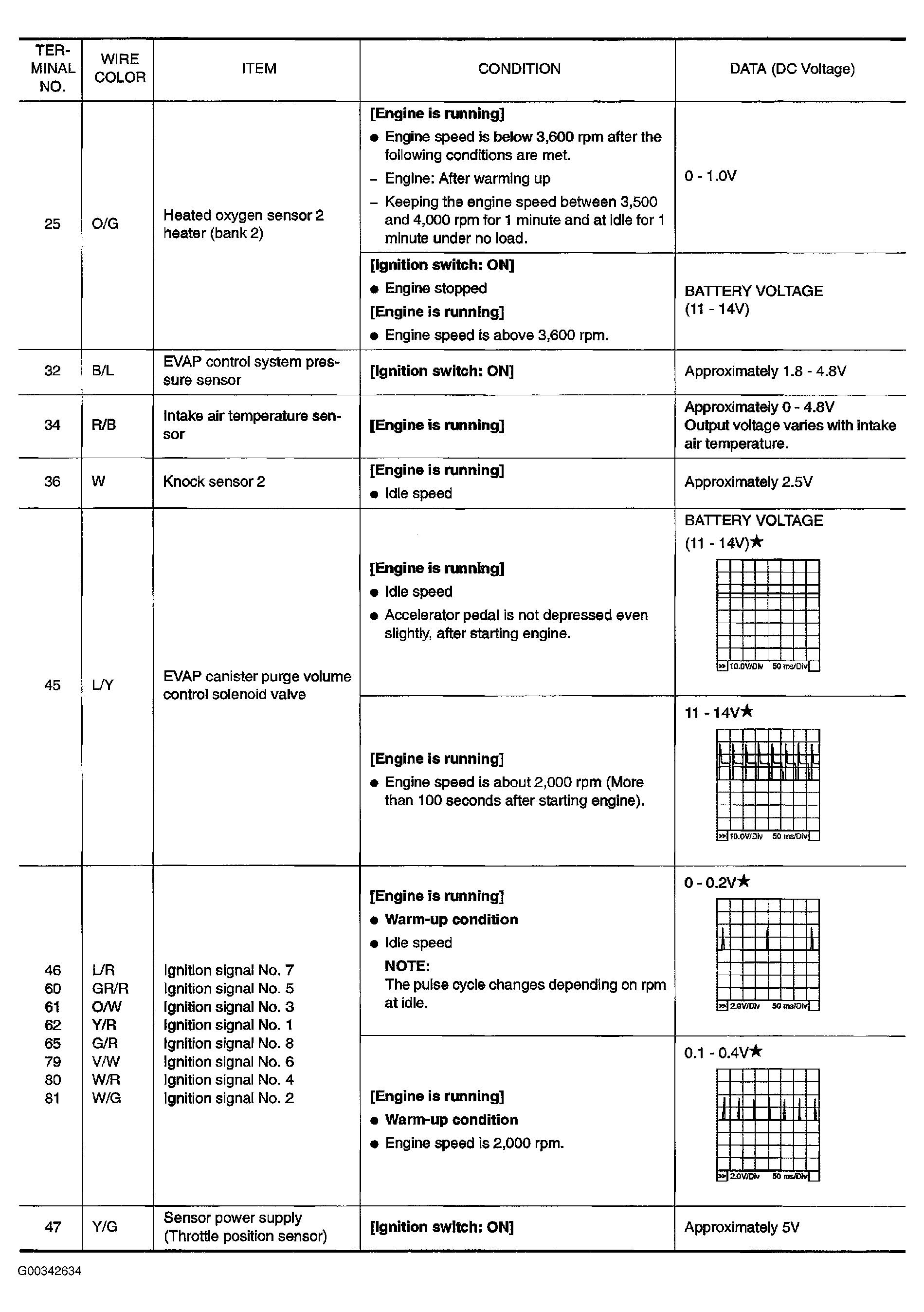

Fig 4: ECM Pin Voltage Chart (4 Of 8)
G00342634Courtesy of NISSAN MOTOR CO., U.S.A.

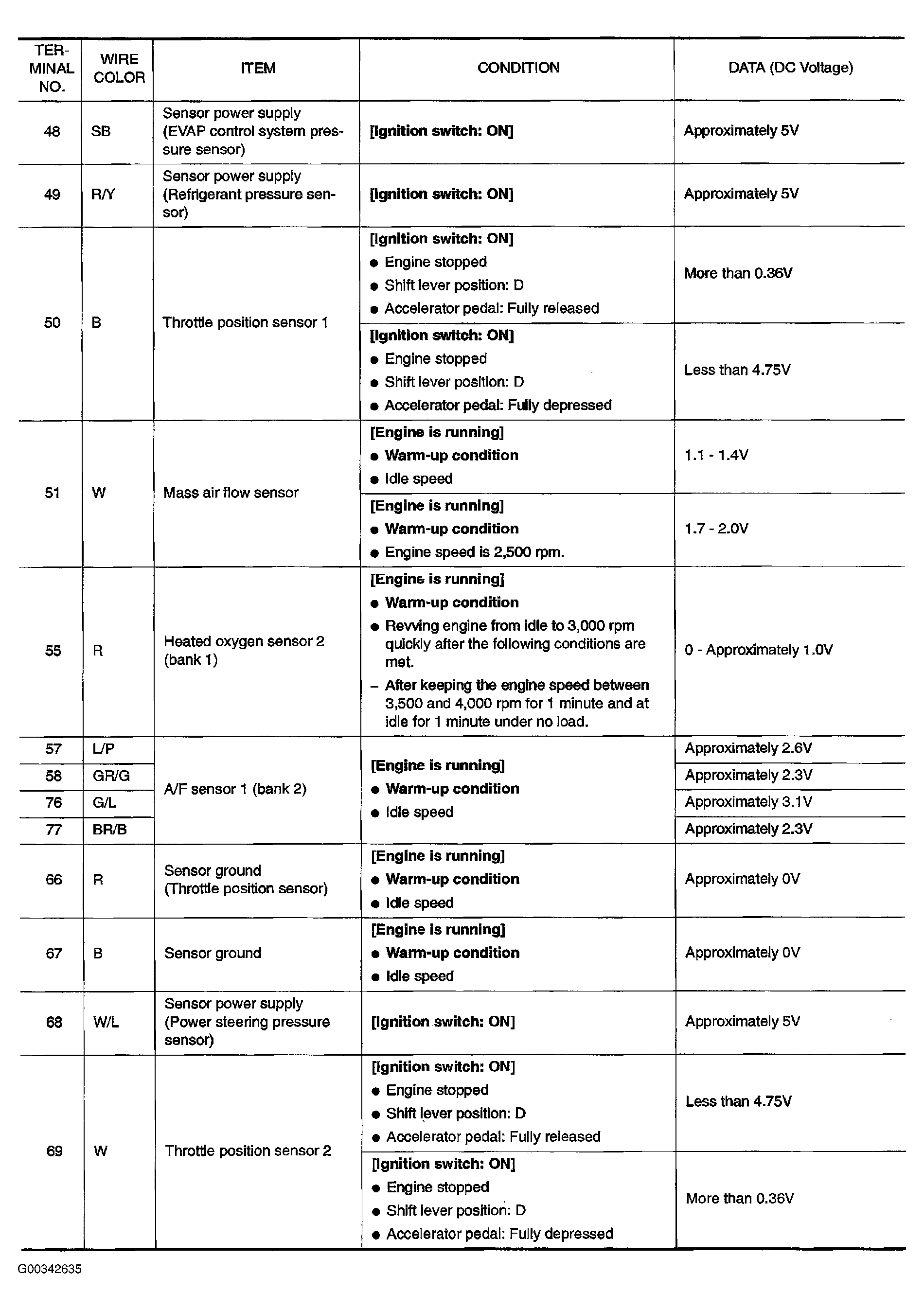

Fig 5: ECM Pin Voltage Chart (5 Of 8)
G00342635Courtesy of NISSAN MOTOR CO., U.S.A.

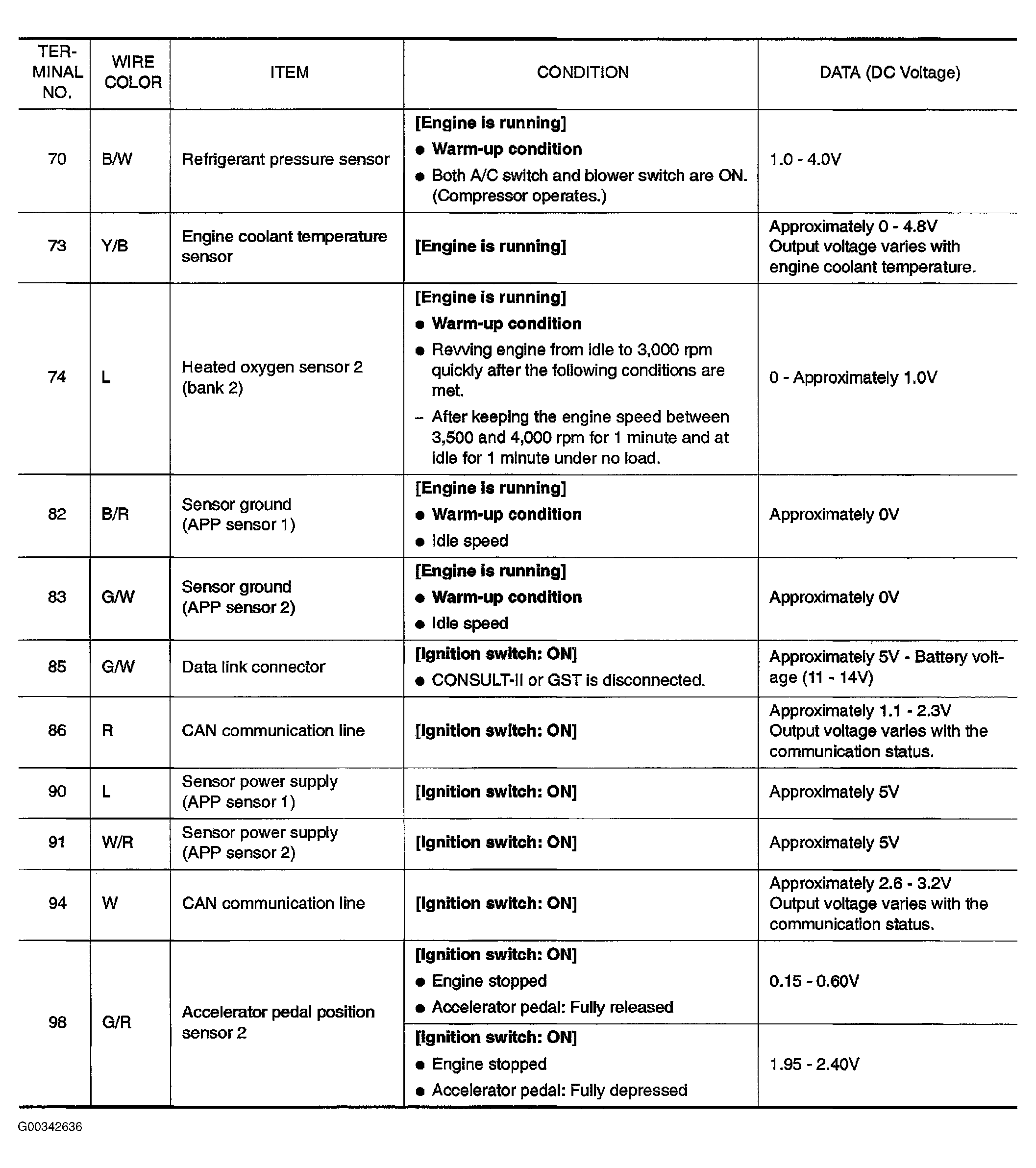

Fig 6: ECM Pin Voltage Chart (6 Of 8)
G00342636Courtesy of NISSAN MOTOR CO., U.S.A.

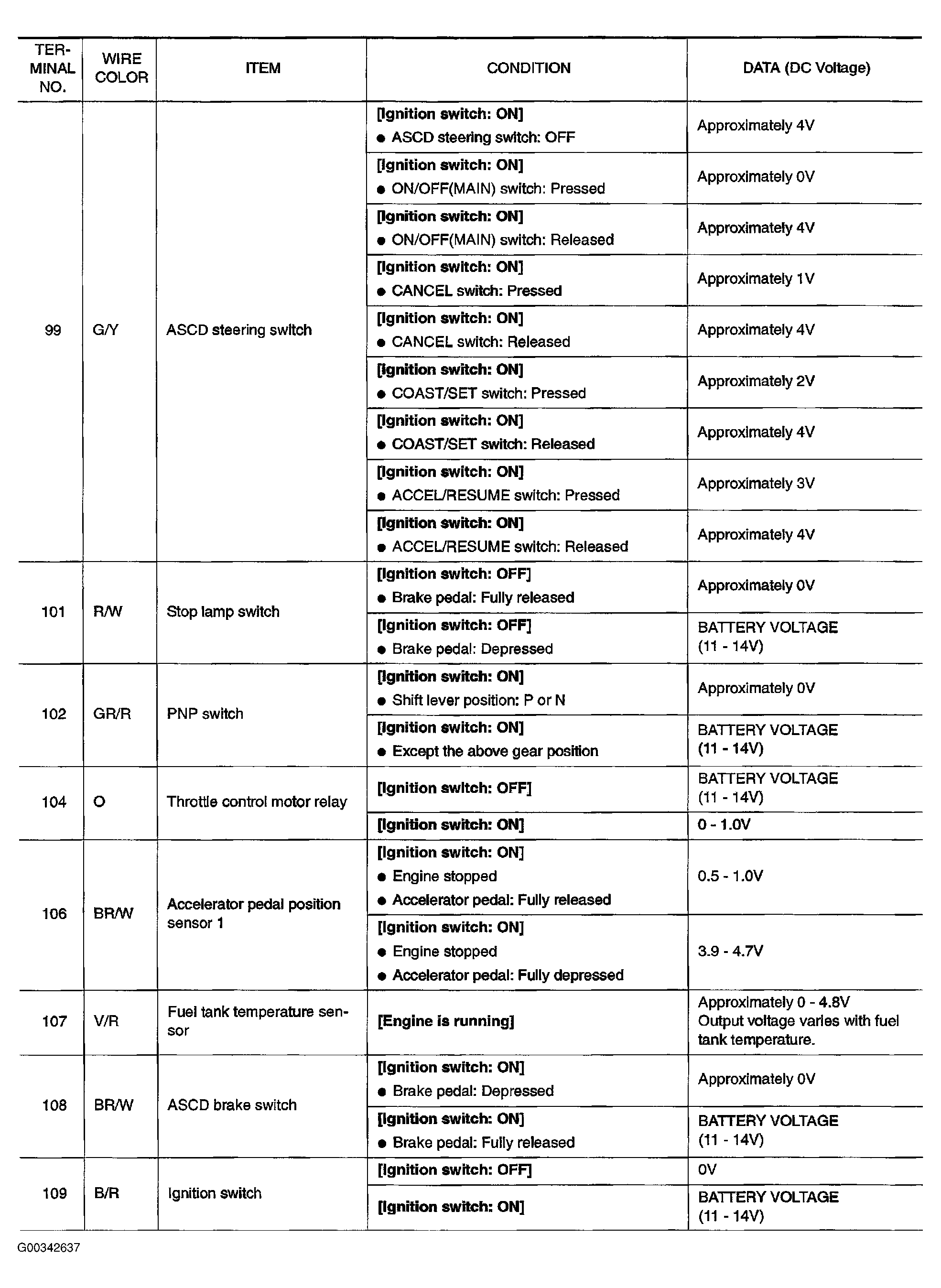

Fig 7: ECM Pin Voltage Chart (7 Of 8)
G00342637Courtesy of NISSAN MOTOR CO., U.S.A.

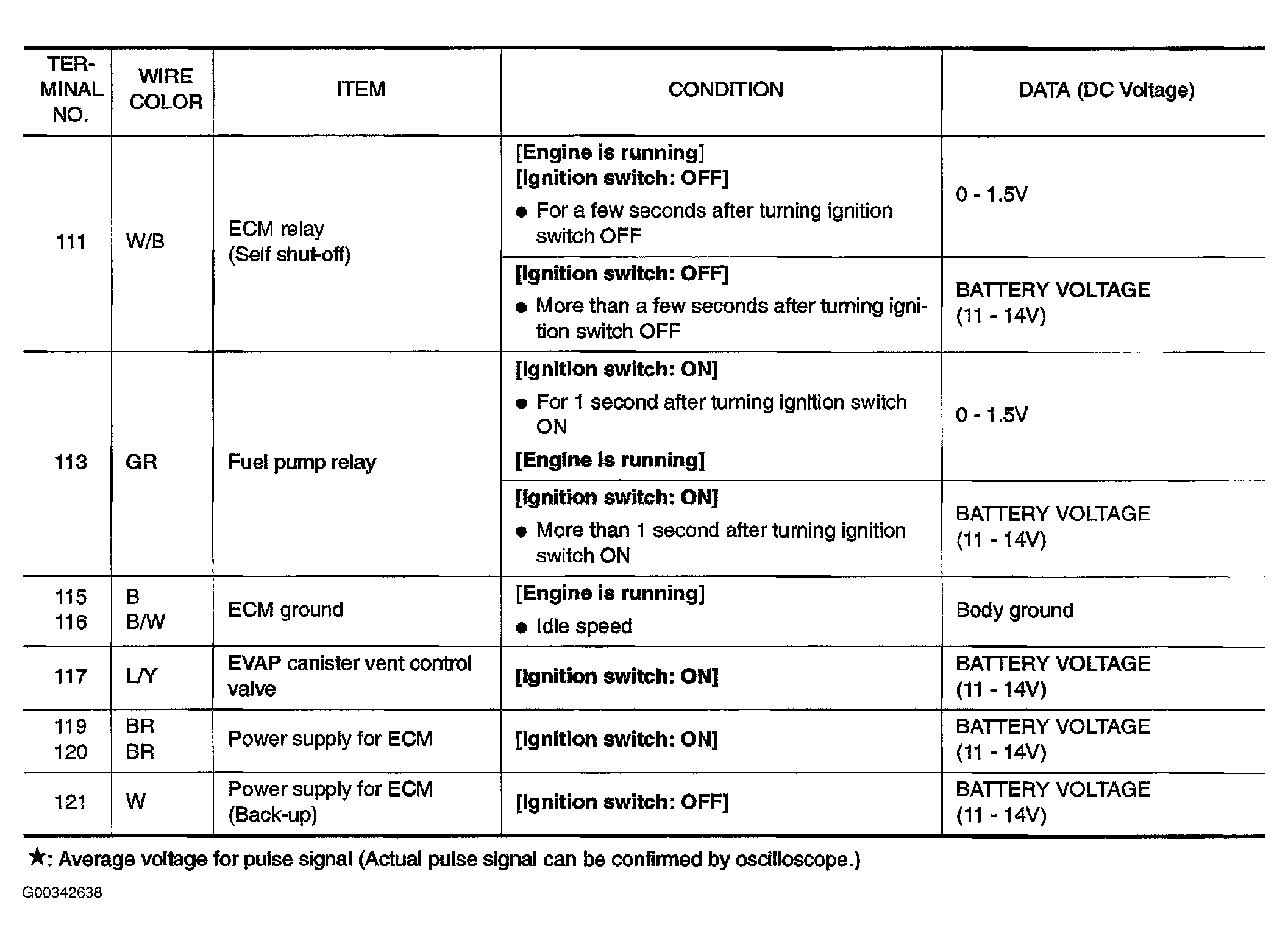

Fig 8: ECM Pin Voltage Chart (8 Of 8)
G00342638Courtesy of NISSAN MOTOR CO., U.S.A.
