Fuel Pressure Release

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT-II

Turn ignition switch ON.
Perform "FUEL PRESSURE RELEASE" in "WORK SUPPORT" mode with CONSULT-II.
Start engine.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF.

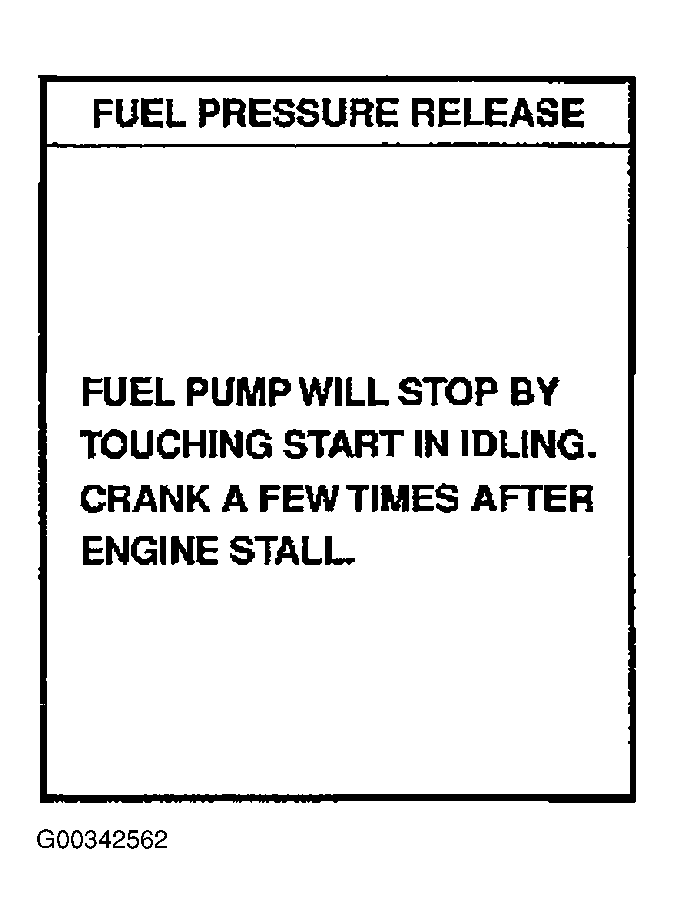

Fig 1: "FUEL PRESSURE RELEASE" in "WORK SUPPORT" mode CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Remove fuel pump fuse located in IPDM E/R.
Start engine.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF.
Reinstall fuel pump fuse after servicing fuel system.

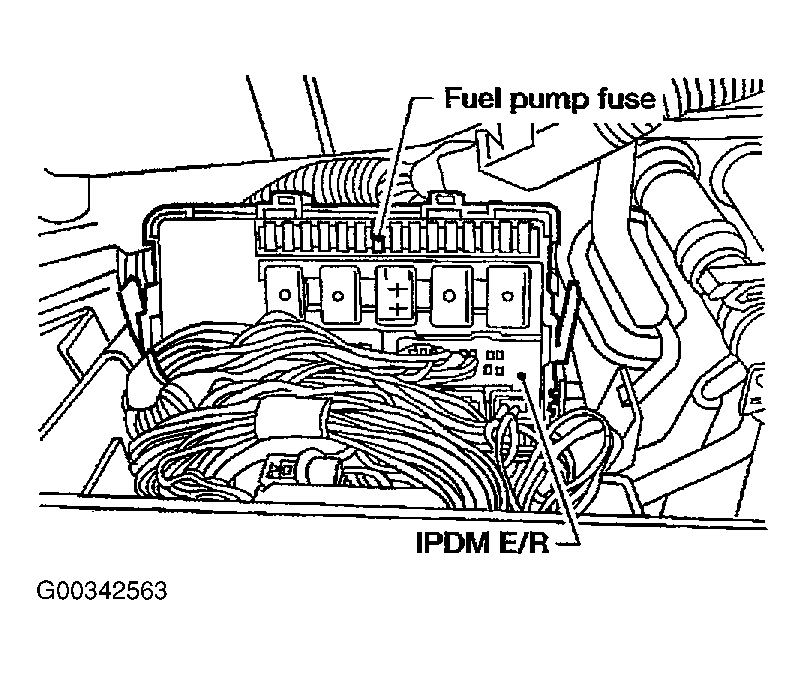

Fig 2: Locating Fuel Pump Fuse In IPDM E/R
Courtesy of NISSAN MOTOR CO., U.S.A.
