Key Interlock Cable: Installation
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

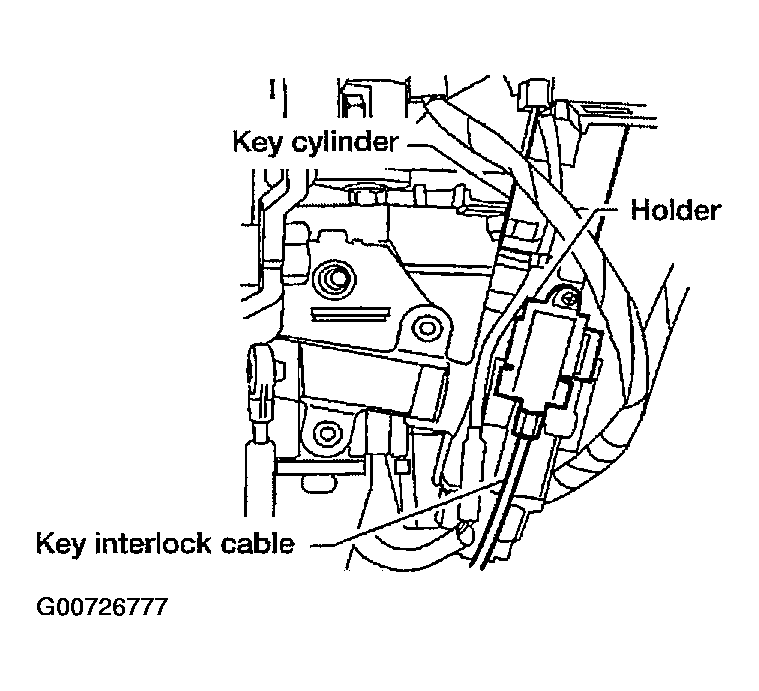

- Set key interlock cable to key cylinder and install holder.
- Set selector lever to P position.
- Turn key to lock position.

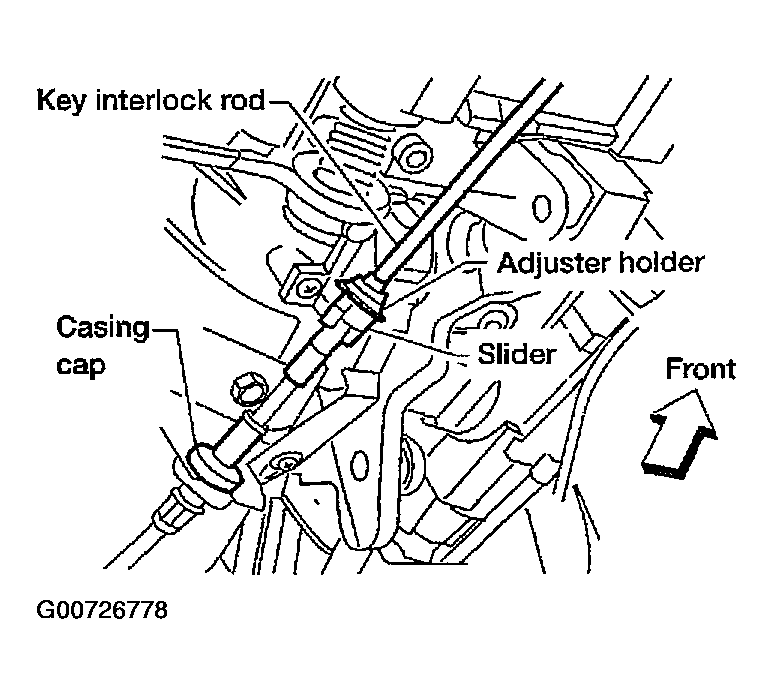

- Insert key interlock rod in to adjuster holder.
- Install casing cap to bracket.
- Move slider in order to lock adjuster holder to interlock rod.
CAUTION:
- Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interference with adjacent parts.
- After installing key interlock cable to control device, make sure that casing cap and bracket are firmly secured in their positions. If casing cap can be removed with an external load of less than 39.2 N (4.0 kg, 8.8 lb), replace key interlock cable with new one.
