Adjustment Of A/T Position
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

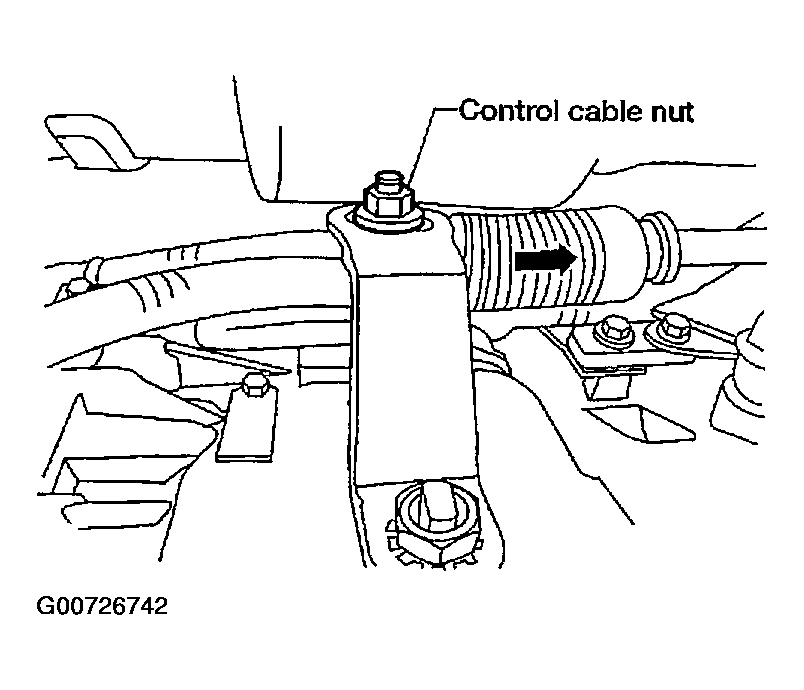

- Loosen nut of control cable.
- Place PNP switch and selector lever in "P" position.
- After pushing the control cable in the direction shown with a force of 9.8 N.m (1 kg-m, 2.2 lb-ft), release it. This is in the natural state, tighten control cable nut to specifications.
- Control cable nut : 14.5 N.m (1.5 kg-m, 11 ft-lb)
