Column Shift

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the column shift control. Refer to STEERING COLUMN article in STEERING.
  2. Remove the A/T cable clip lock plate and remove the cable from column shifter pin.

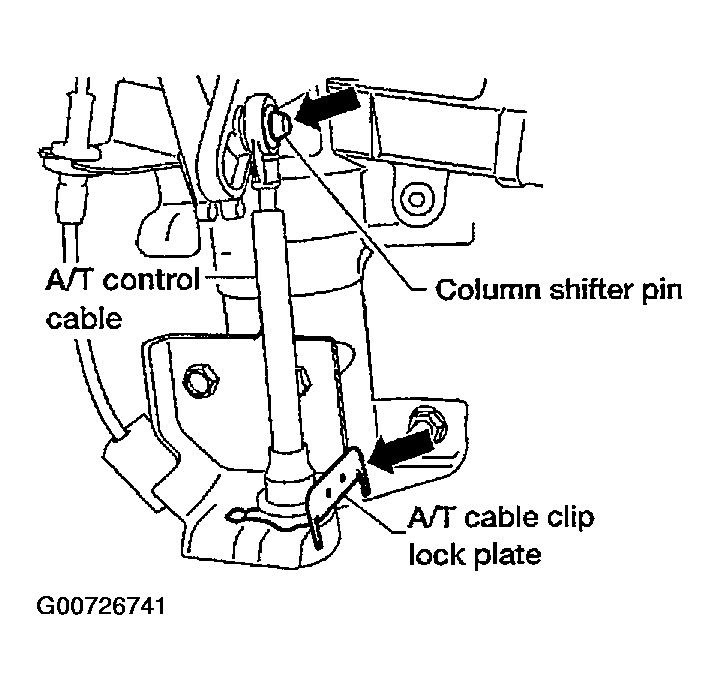

    Fig 1: Removing The A/T Cable Clip Lock Plate
    G00726741Courtesy of NISSAN MOTOR CO., U.S.A.
