WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

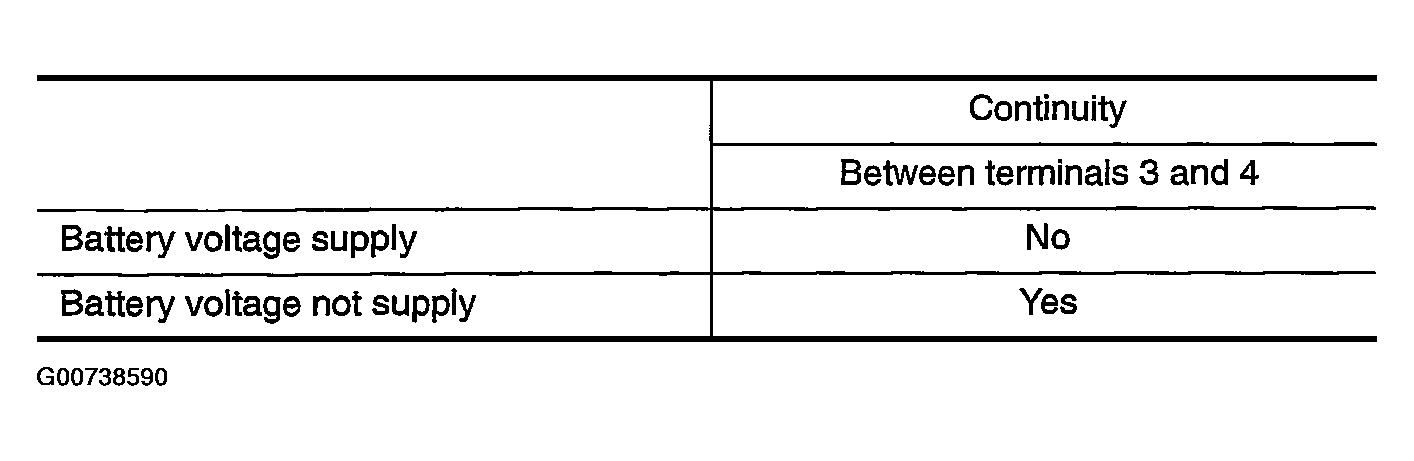

Fig 1: Park/Neutral Position Relay Operation Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

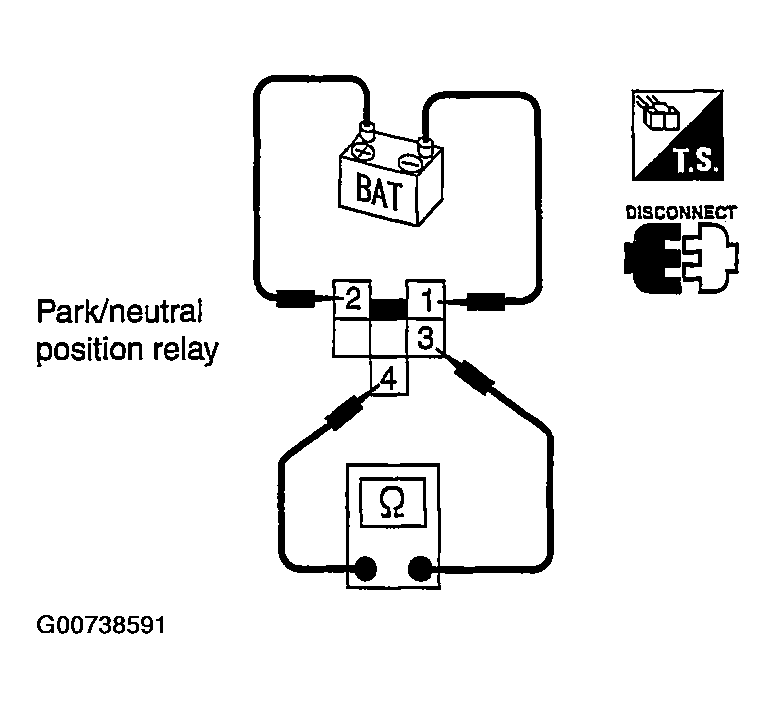

Fig 2: Inspecting Park/Neutral Position Relay Operation
