Fail-Safe System: Description

WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

When the fail-safe system senses a malfunction, it deactivates ASCD operation. The SET indicator in the combination meter will then flash.

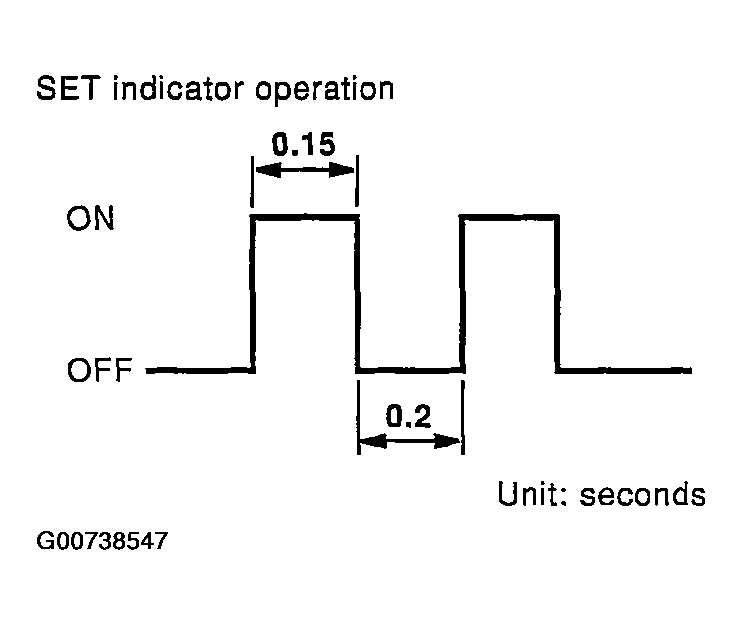

Fig 1: Identifying SET Indicator Operation
G00738547Courtesy of NISSAN MOTOR CO., U.S.A.
