Removal Of Drive Pinion Assembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Put matching marks on companion flange and drive pinion with paint.
Loosen drive pinion nut using Tool.
Tool number : KV38108300 (J44195)

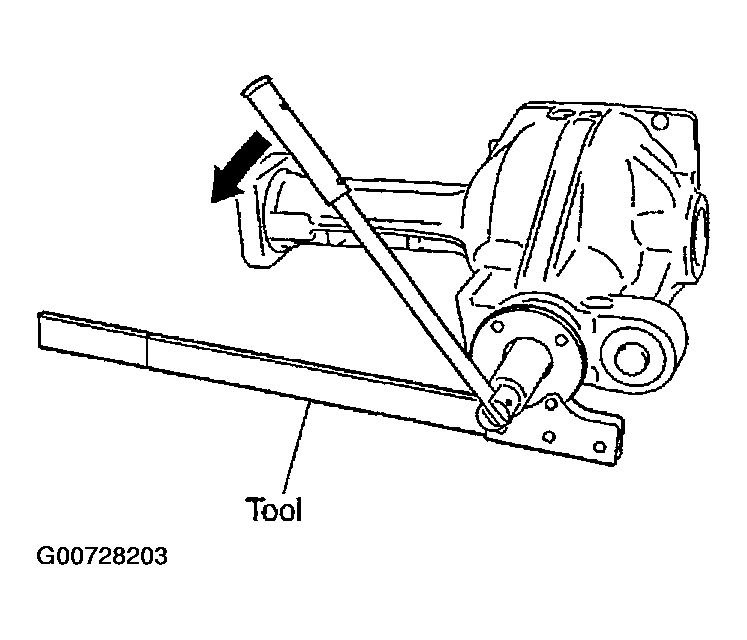

Fig 1: Loosening Drive Pinion Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove companion flange using a suitable puller.

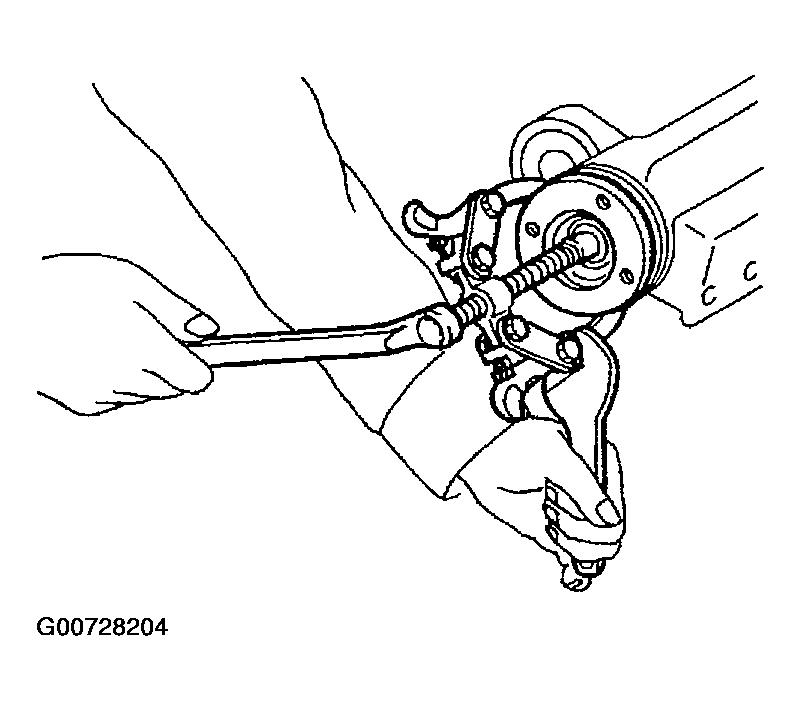

Fig 2: Removing Companion Flange
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove drive pinion (together with rear bearing inner race, collapsible spacer.)
Remove pinion front bearing inner race.

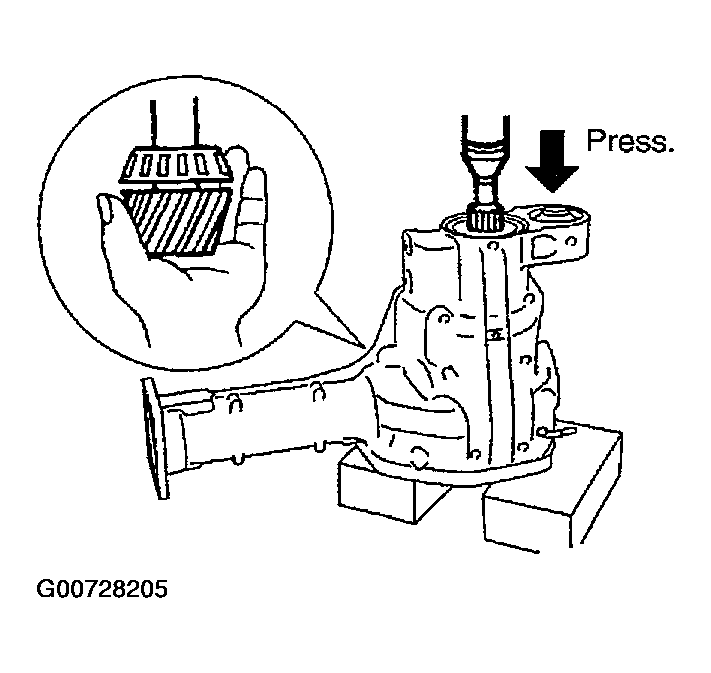

Fig 3: Removing Drive Pinion
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a punch or drill, place a small hole in case.

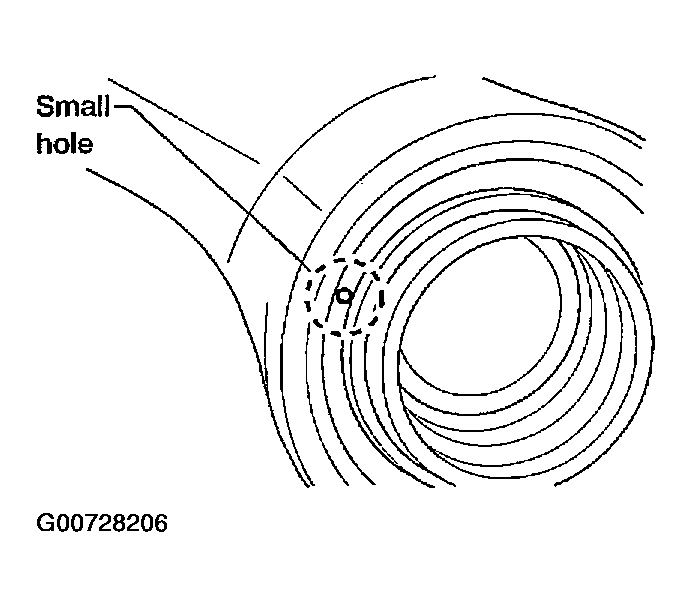

Fig 4: Placing A Small Hole In Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Assemble Tool as shown and remove seal.
Tool number : SP8P

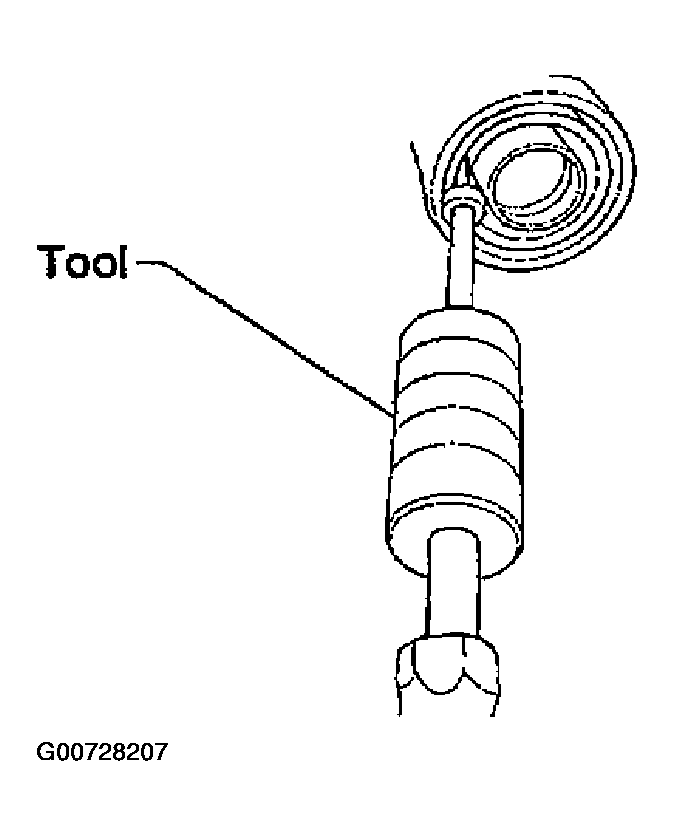

Fig 5: Removing Seal With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn nose of gear carrier down. Remove drive pinion front bearing outer race using Tool. Locate driver on back edge of outer race, then drive outer race out.
CAUTION: Do not nick gear carrier.

Tool number A: C-4171

B: D-103

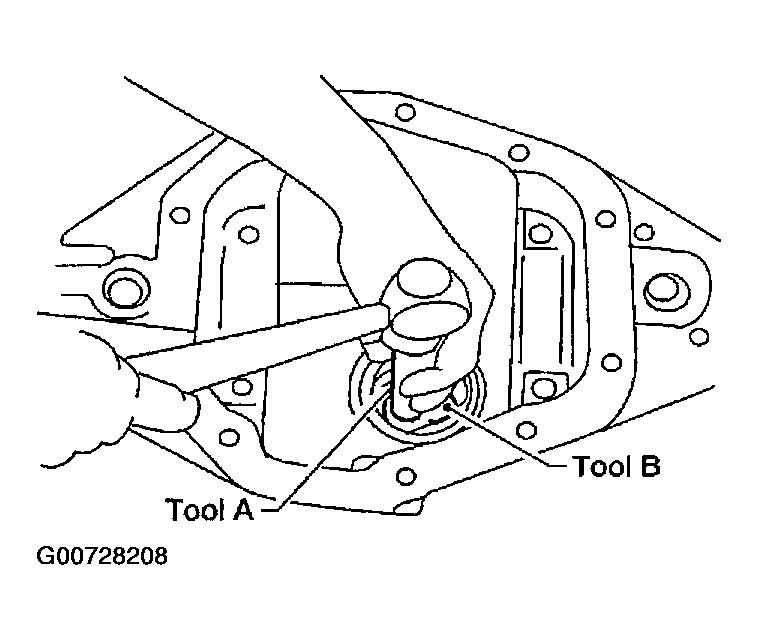

Fig 6: Drive Outer Race Out
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn nose of gear carrier up. Remove drive pinion rear bearing outer race using Tool. Locate driver on back edge of outer race, then drive outer race out.
CAUTION: Do not nick gear carrier.

Tool number A: C-4171

B: C-4307

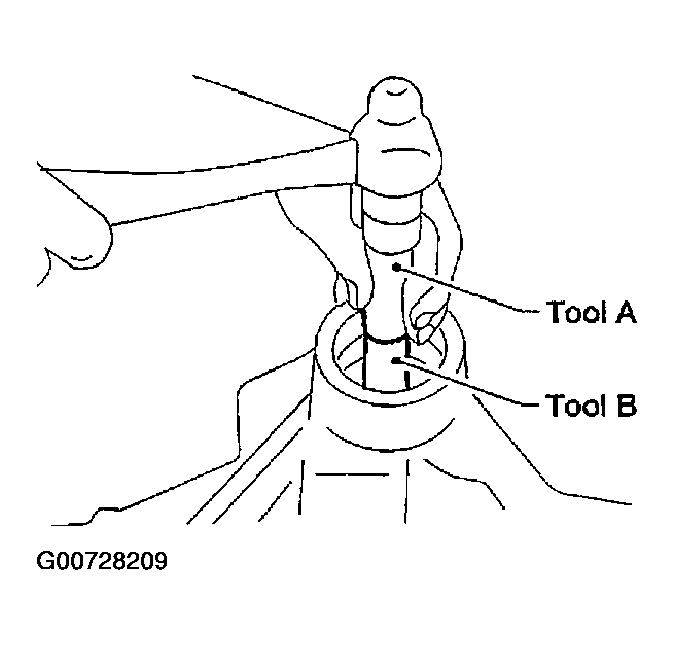

Fig 7: Drive Outer Race Out
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove drive pinion rear bearing inner race and drive pinion height adjusting washer using Tool.
Tool number : ST30021000 (-)

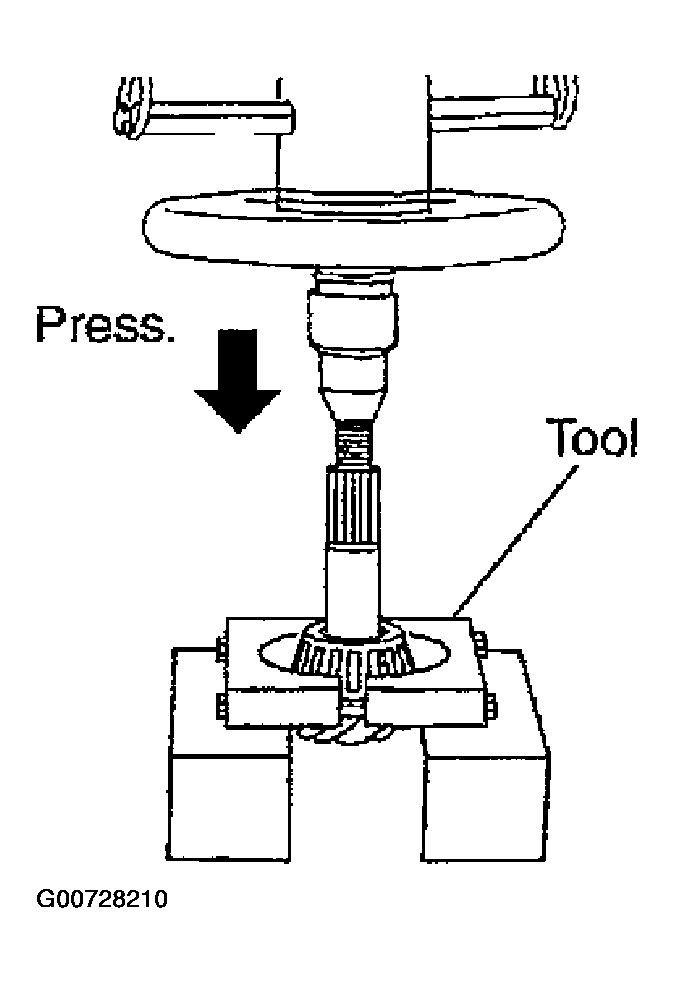

Fig 8: Removing Drive Pinion Rear Bearing Inner Race And Drive Pinion Height Adjusting Washer

Courtesy of NISSAN MOTOR CO., U.S.A.
