WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

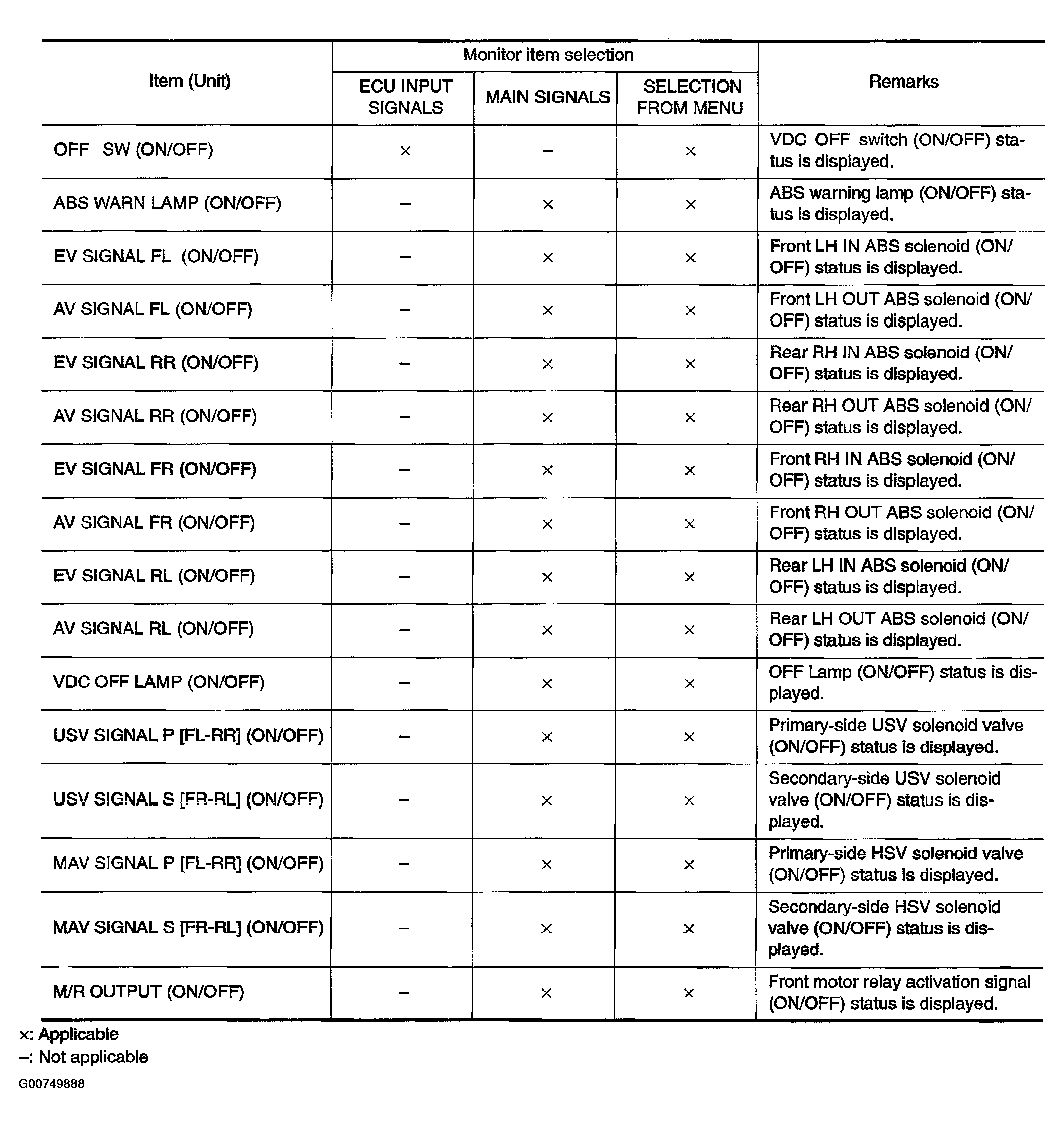

Fig 1: Identifying Display Items Of CONSULT-II Diagnostic Tester (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

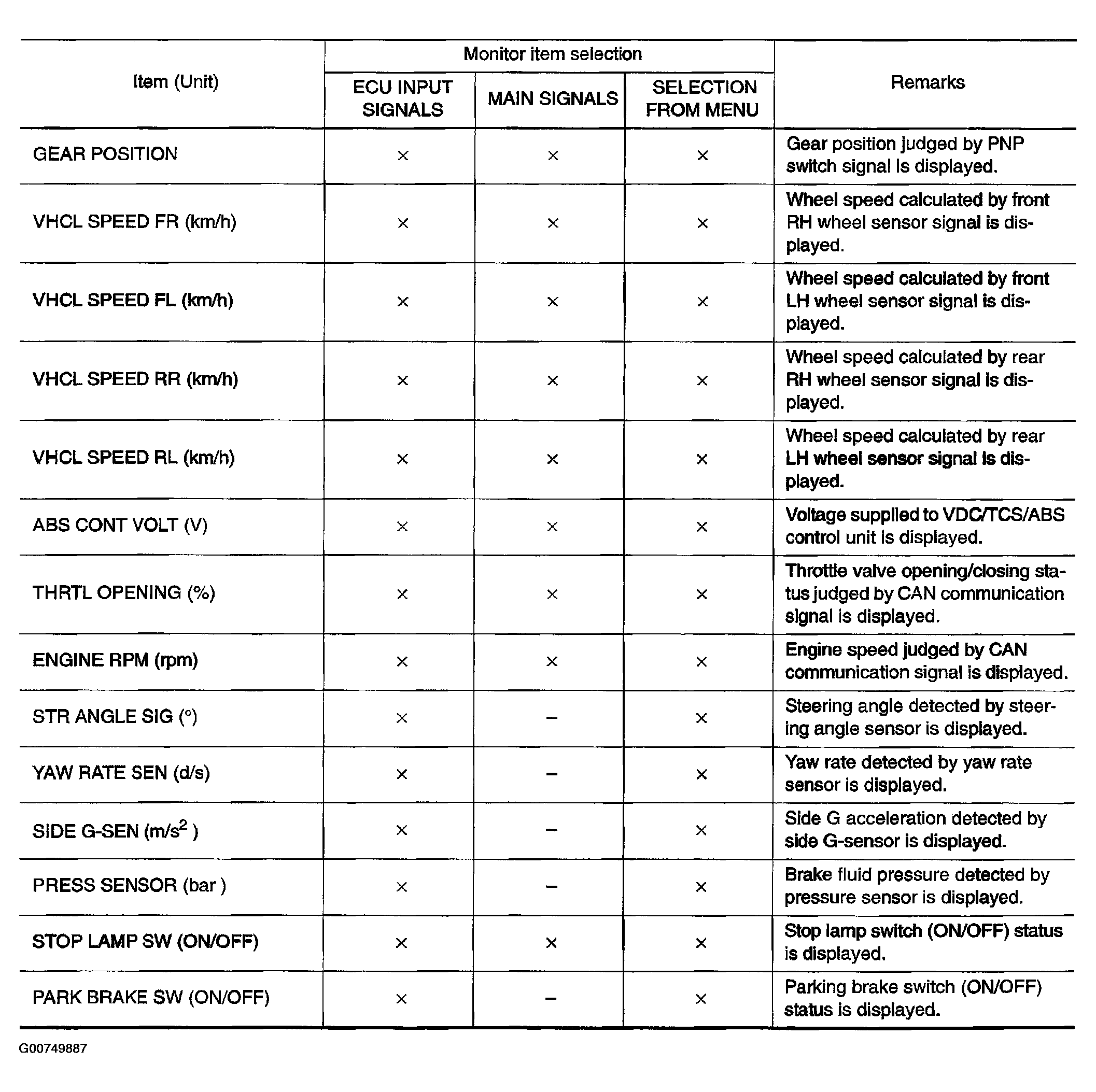

Fig 2: Identifying Display Items Of CONSULT-II Diagnostic Tester (2 Of 2)
