Operation Procedure

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
Turn ignition switch ON.
Touch "START" on display.
Touch "VDC" on display.
NOTE: Just after starting engine, or turning ignition switch ON, "VDC" may not be displayed on system selection screen even if "START" is touched. In this case, start self-diagnosis again from step 2.
Touch "DATA MONITOR".
Return to monitor item selection screen, and touch any of "ECU INPUT ITEM", "MAIN SIGNALS" or "SELECTION FROM MENU".
Touch "START".
Screen of data monitor is displayed.

Connect CONSULT-II and CONSULT-II CONVERTER to data link connector and start the engine.
Touch "START" on the display.
Touch "VDC" and "ACTIVE TEST".

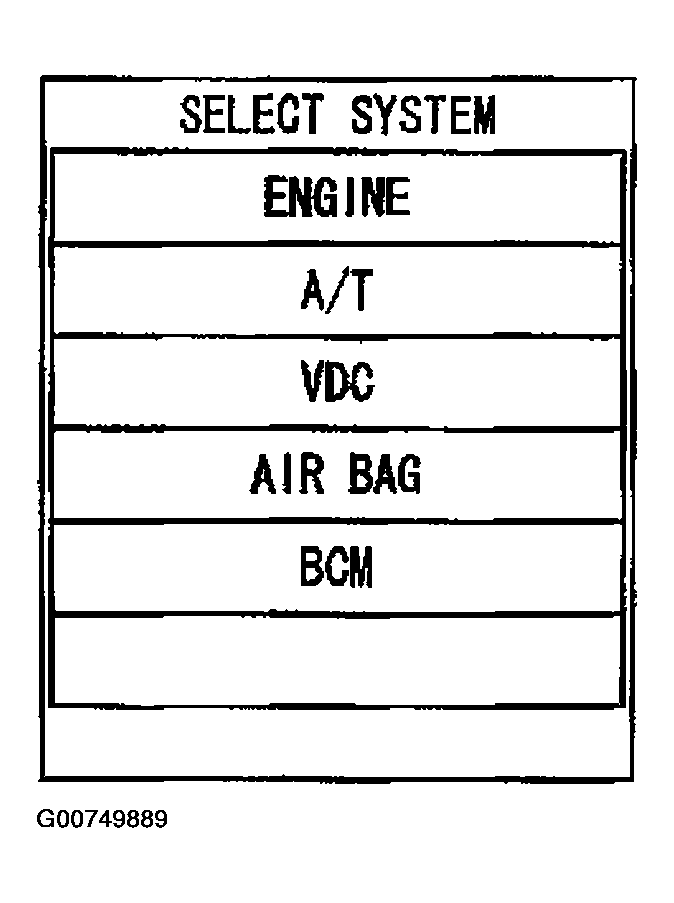

Fig 1: Selecting "VDC" & "ACTIVE TEST"
Courtesy of NISSAN MOTOR CO., U.S.A.
Test item selection screen is displayed.

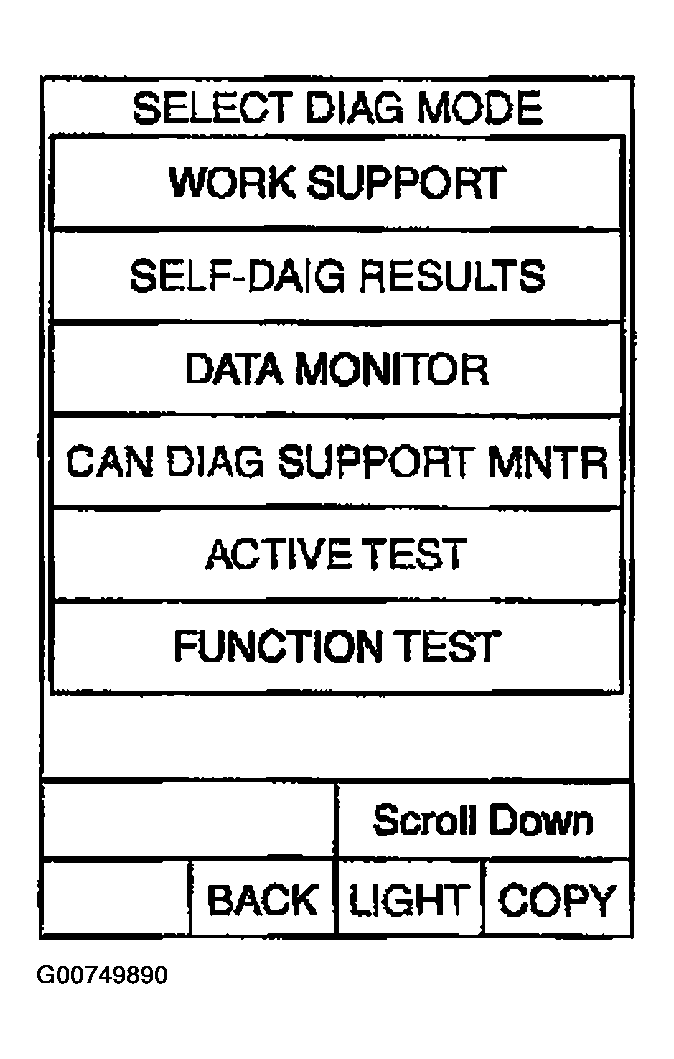

Fig 2: Viewing Test Item Selection Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch necessary test item.

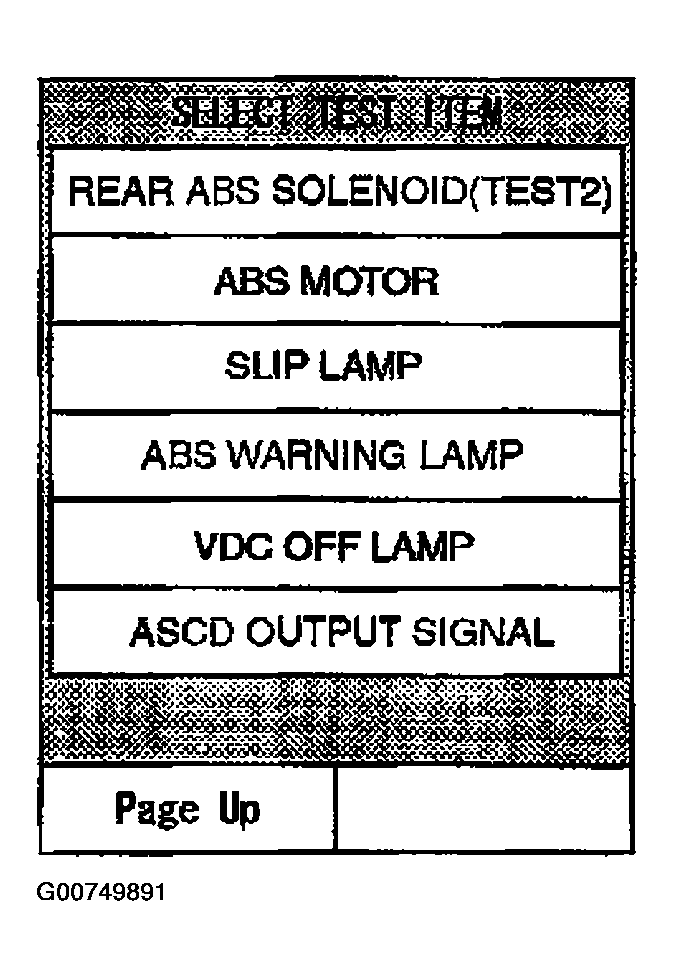

Fig 3: Selecting Necessary Test Item From Active Test Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START" with "MAIN SIGNALS" line inverted.
Active test screen is displayed.
NOTE:
- When the active test is conducted while depressing the pedal, the pedal depression amount will change, but this is normal.
- Approximately 10 seconds after the operation is begun, "TEST STOP" will be displayed.
- To conduct a retest after "TEST STOP" is displayed, touch "BACK" and conduct the test from step 6 .
