ASCD Output

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON" and "OFF" on the screen. Make sure that ASCD output is as shown in Fig 2

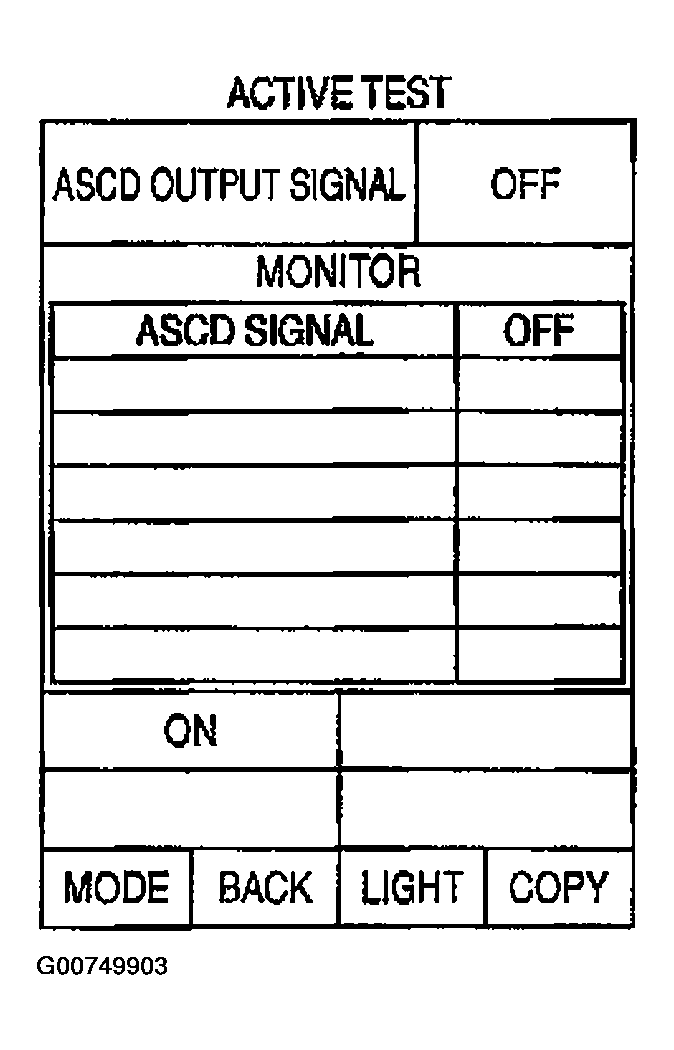

Fig 1: Viewing ASCD OUTPUT SIGNAL Function On Active Test Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

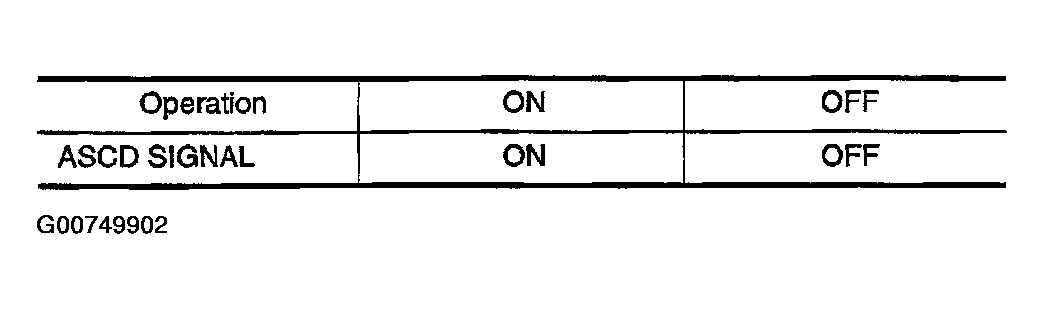

Fig 2: Defining ASCD OUTPUT SIGNAL Test Results
Courtesy of NISSAN MOTOR CO., U.S.A.
