Reference Value From CONSULT-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short - circuited.

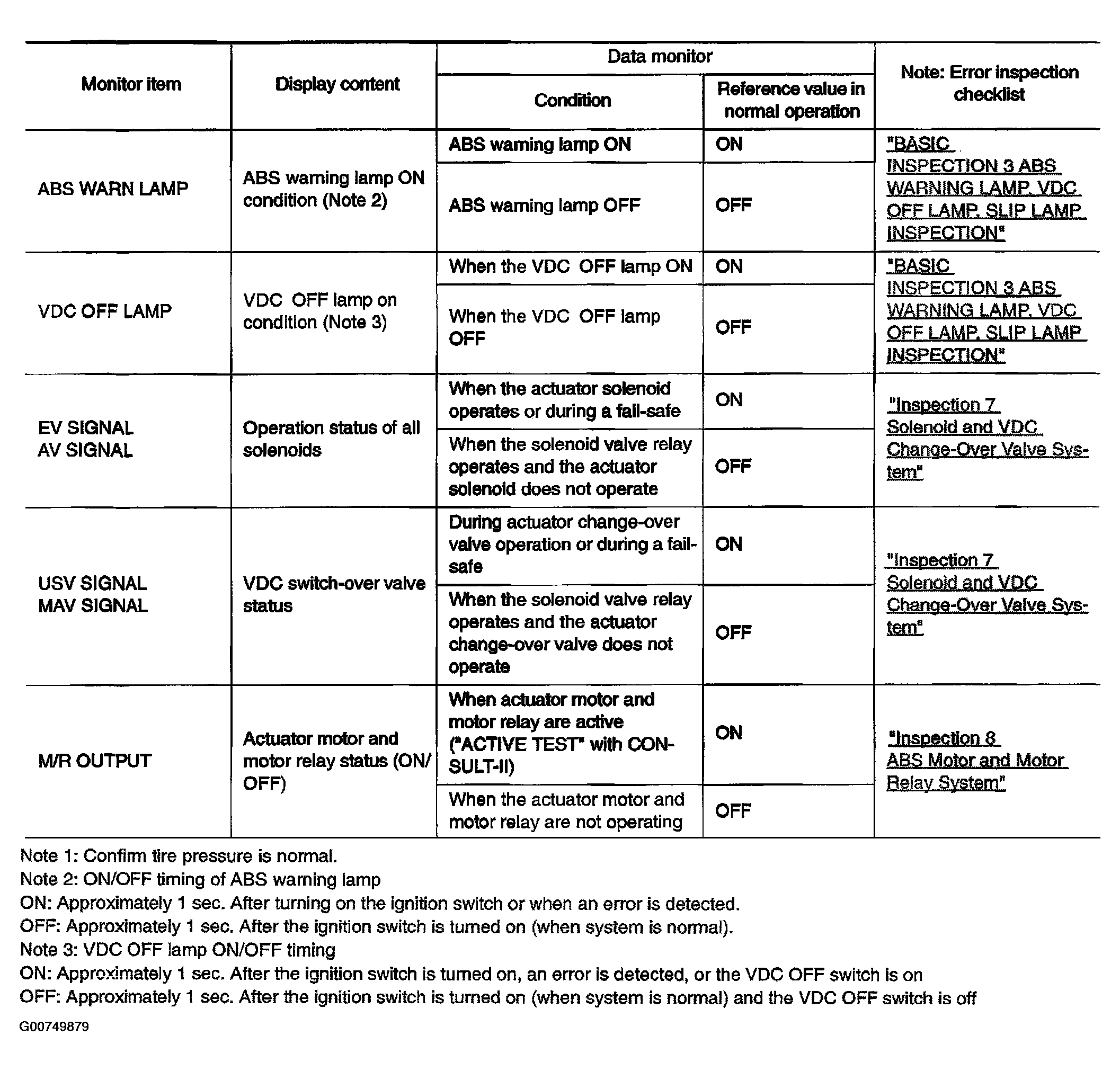

Fig 1: Determining Control Unit Input/Output Signal Standard Calculation Data (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

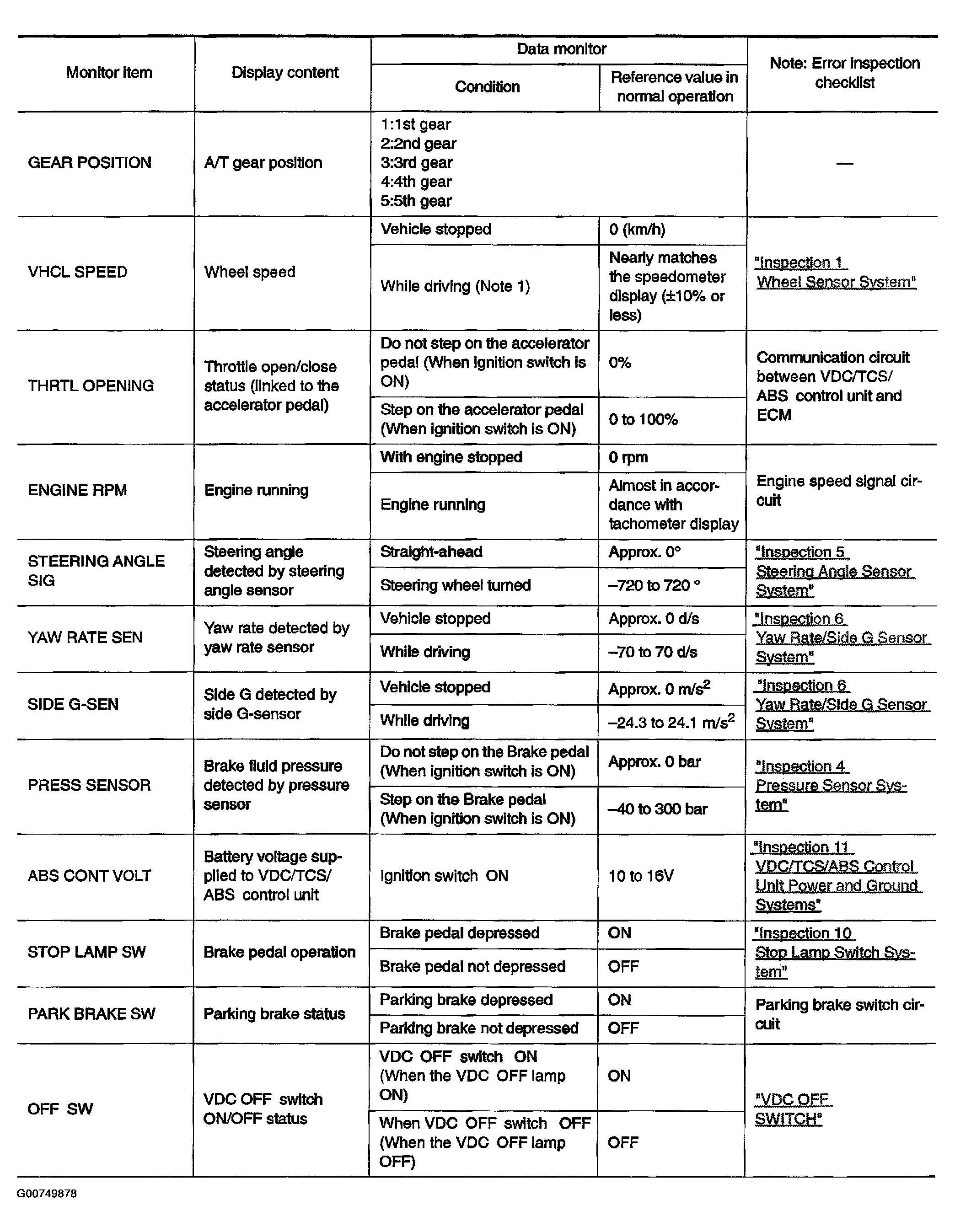

Fig 2: Determining Control Unit Input/Output Signal Standard Calculation Data (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
