Inspection 11 VDC/TCS/Abs Control Unit Power And Ground Systems

Check self-diagnosis results.

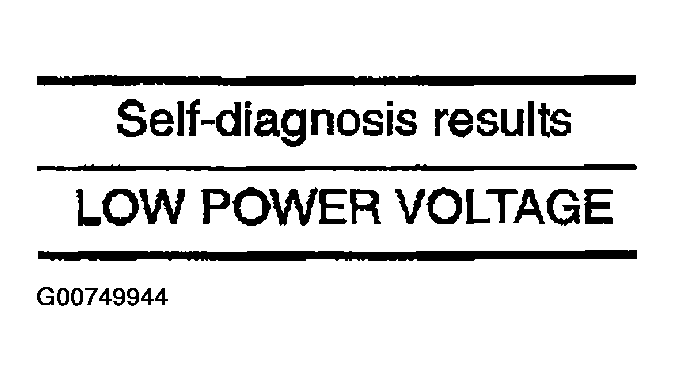

Fig 1: Identifying Self-Diagnosis Results

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the above displayed in the self-diagnosis item?

1. YES: GO TO 2.
2. NO: Inspection End

1. Disconnect the VDC/TCS/ABS control unit connector and check the terminal for deformation, disconnection, looseness, and so on. If there is an error, repair or replace the terminal.
2. Securely reconnect the connector and Re-conduct self-diagnosis.

OK or NG

1. OK: The connector terminal contact is loose, damaged, open or shorted.
2. NG: GO TO 3.

1. Disconnect the VDC/TCS/ABS control unit connector.
2. With the ignition switch turned on and off, check the voltage and continuity between the VDC/TCS/ABS control unit harness connector and the ground.

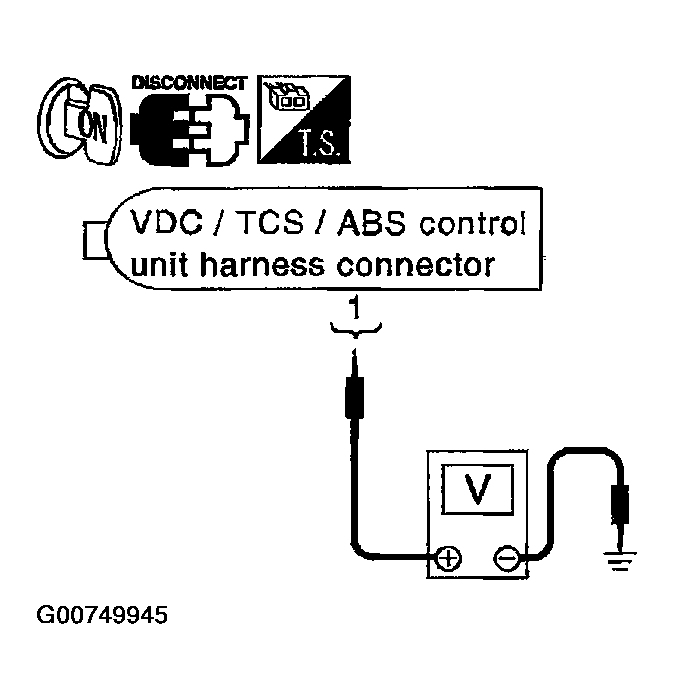

   Fig 2: Checking VDC/TCS/ABS Control Unit Voltage

   Courtesy of NISSAN MOTOR CO., U.S.A.

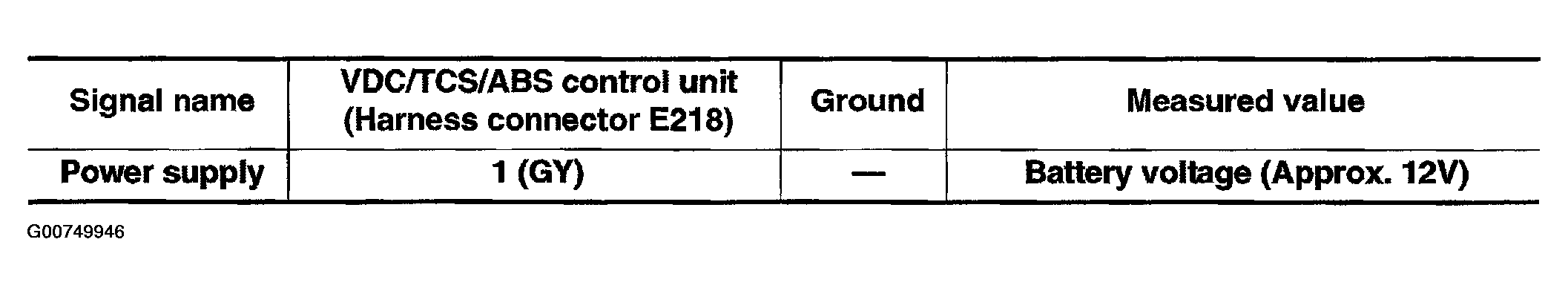

   Fig 3: Determining VDC/TCS/ABS Control Unit Measured Voltage

   Courtesy of NISSAN MOTOR CO., U.S.A.

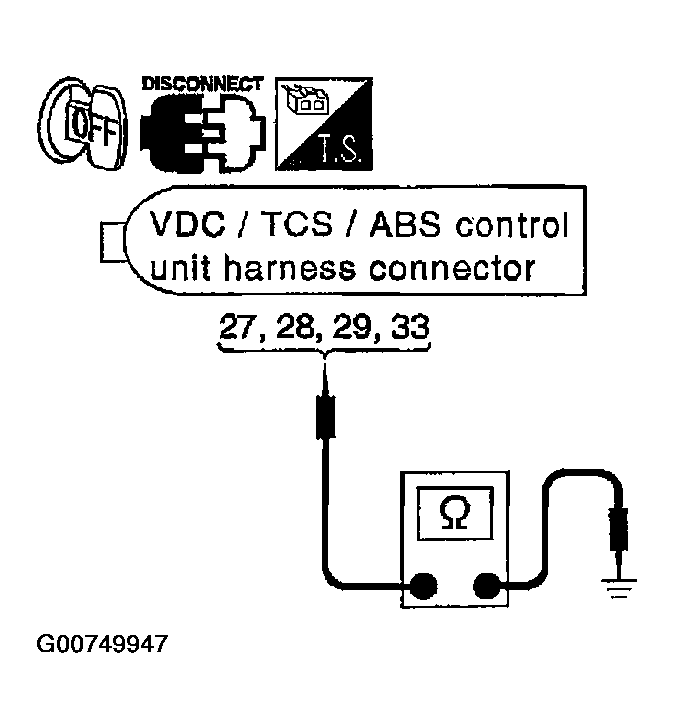

   Fig 4: Checking VDC/TCS/ABS Control Unit Continuity

   Courtesy of NISSAN MOTOR CO., U.S.A.

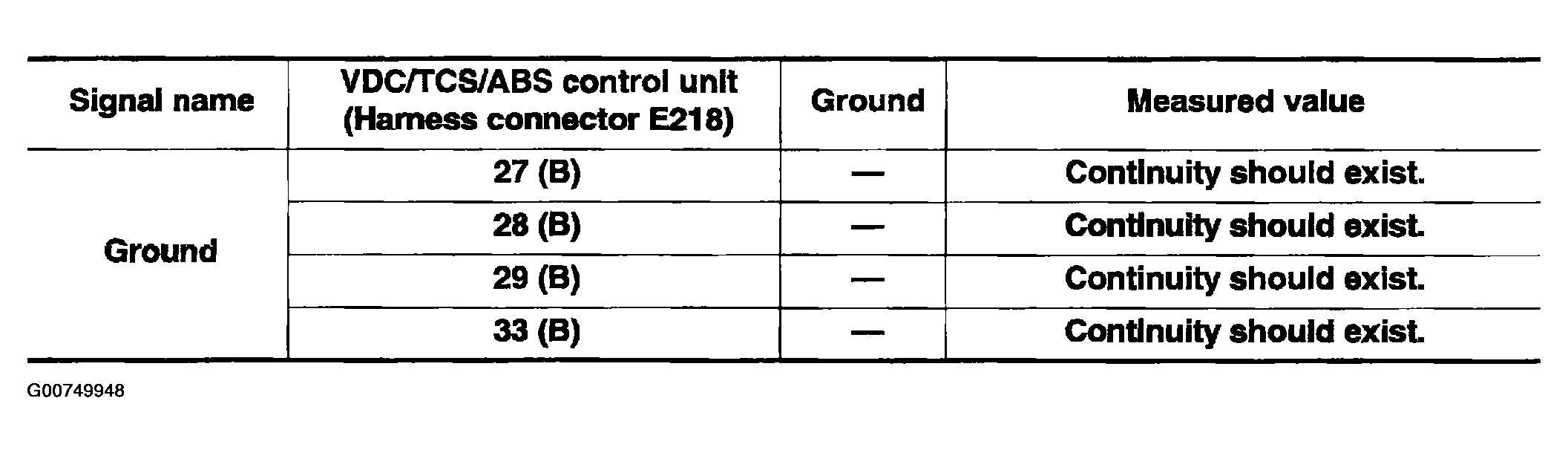

   Fig 5: Determining VDC/TCS/ABS Control Unit Measured Continuity

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Check the battery (terminal looseness, low voltage, etc.) For any non-standard condition. If any non-standard condition exists, recharge or replace the battery as necessary.
2. NG: The corresponding harness circuit is open or shorted. Repair the circuit.
