Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

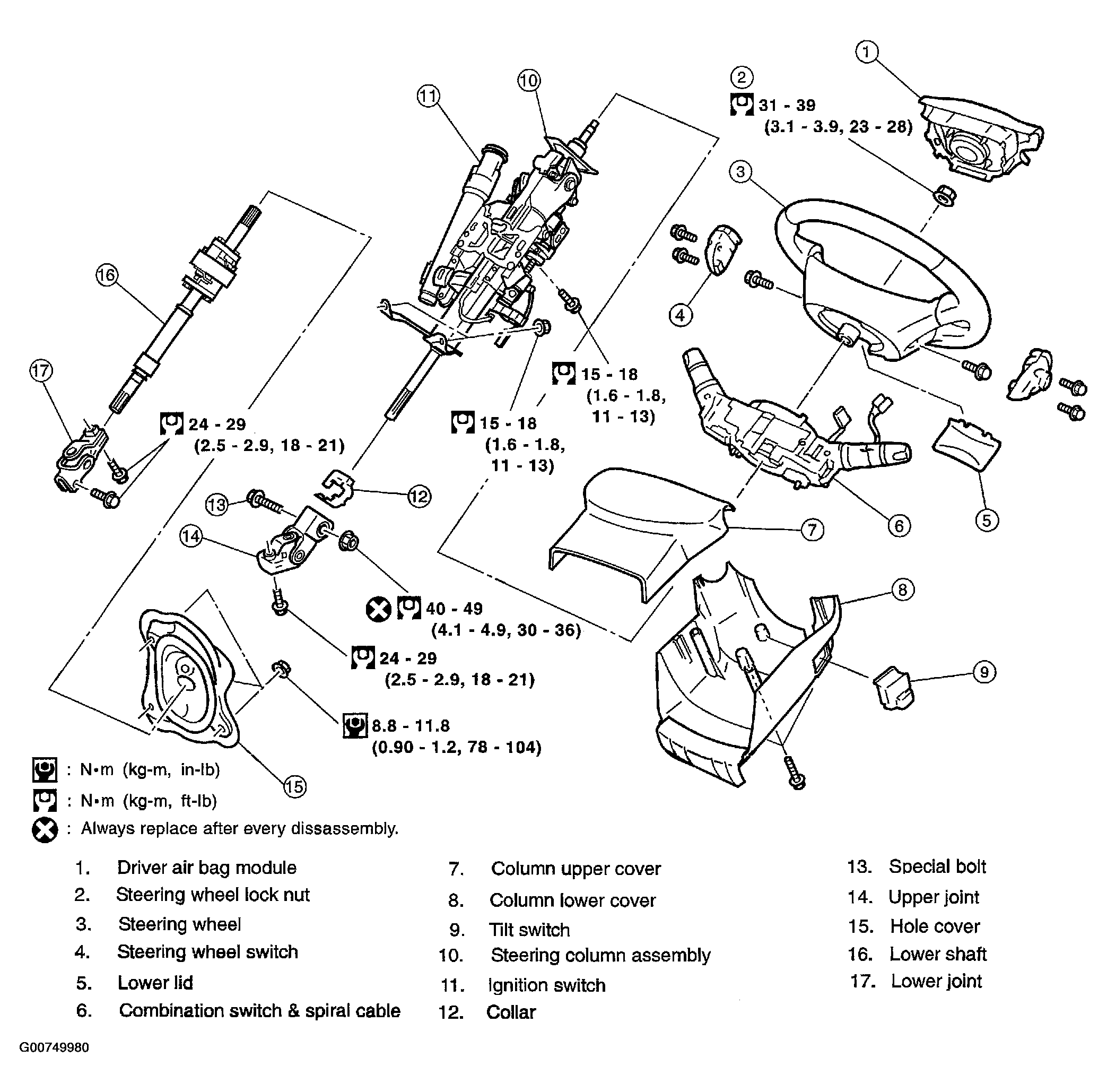

Fig 1: Removing & Installing Steering Column Components
G00749980Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Care must be taken not to give axial impact to steering column assembly during removal and installation.
  • Care must be taken not to move steering gear during removal of steering column assembly.
