Engine Coolant Temperature Sensor

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

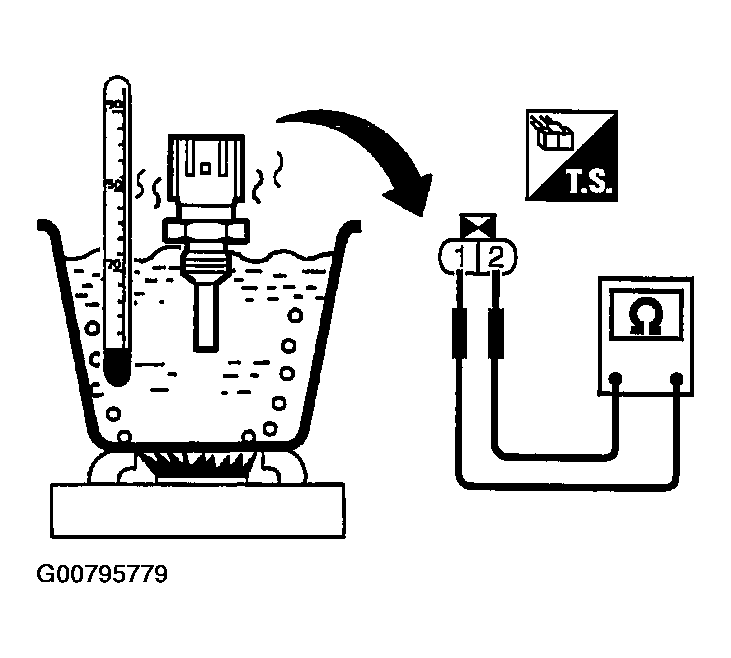

Fig 1: Checking Engine Coolant Temperature Sensor Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

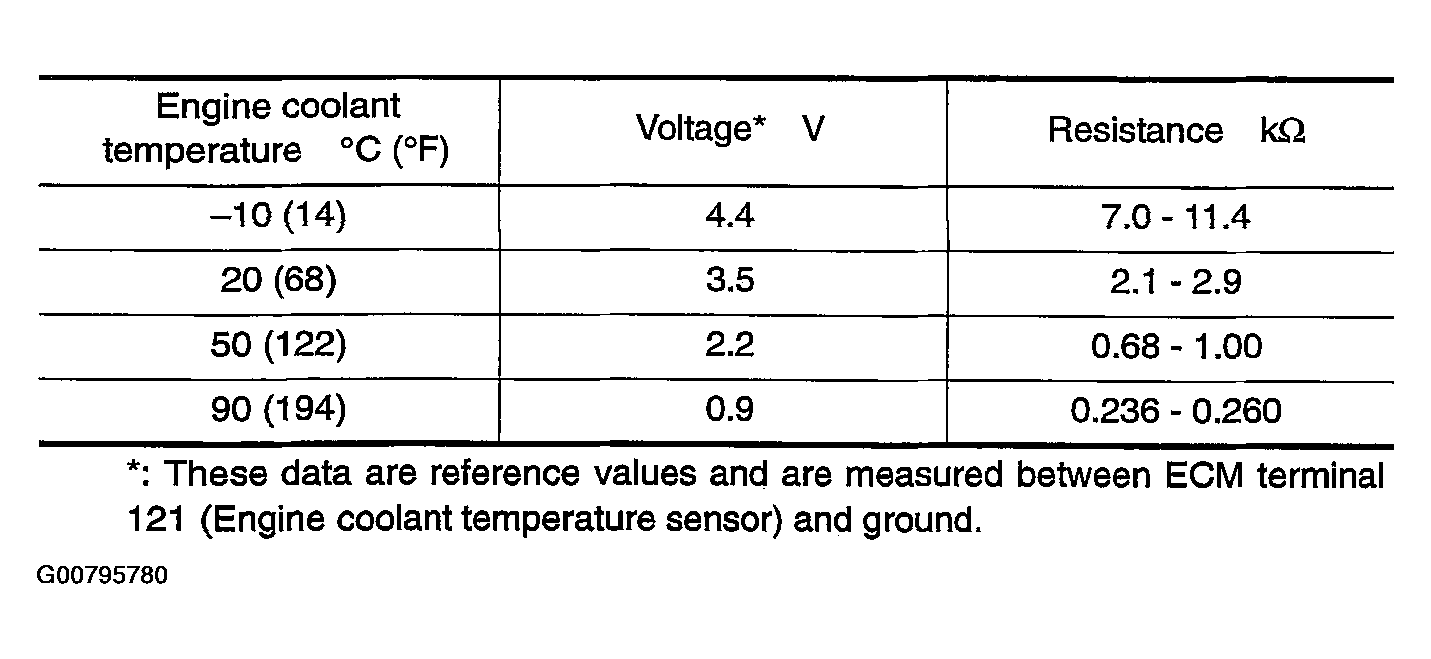

Fig 2: Identifying Engine Coolant Temp Reference Data Information
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace engine coolant temperature sensor.
