Start engine and warm it up to normal operating temperature.
Set voltmeter probes between ECM terminal 114 [HO2S1 (B1) signal] or 115 [HO2S1 (B2) signal] and ground.
Check the following with engine speed held at 2,000 RPM constant under no load.
- The voltage does not remain in the range of 0.2 to 0.4V.
If NG, go to DIAGNOSTIC PROCEDURE .

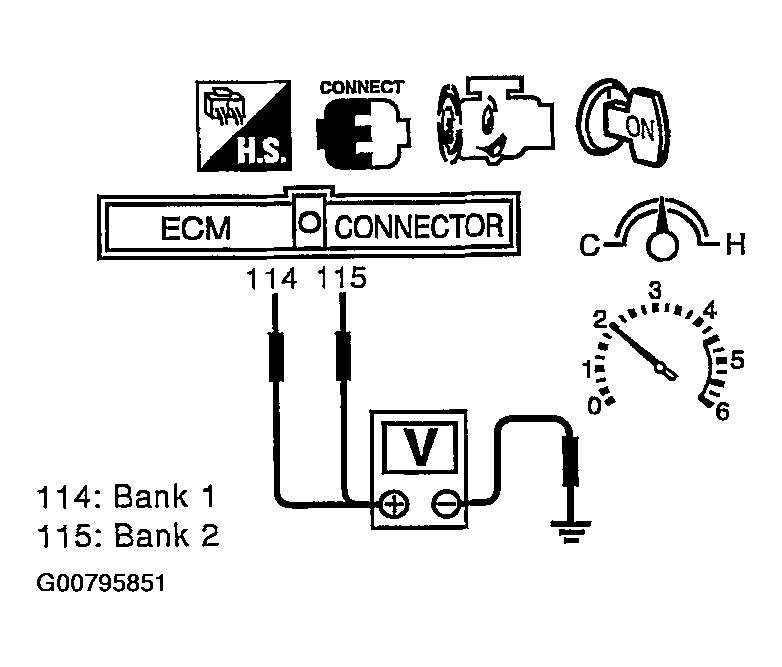

Fig 1: Checking Voltage Between ECM Terminals & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
