With Consult-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

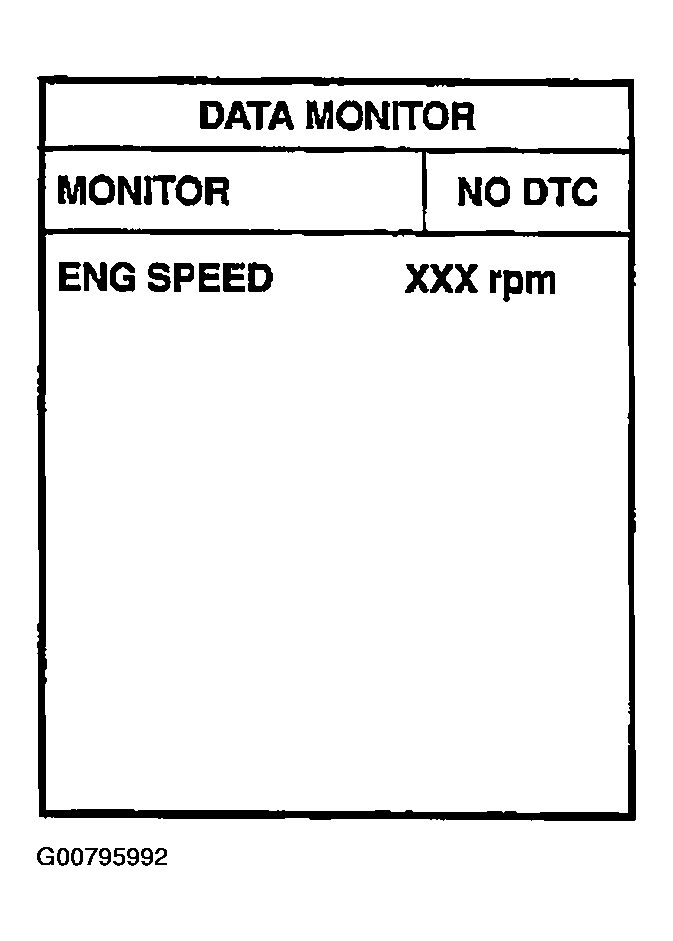

    Fig 1: Scan Tool Display - Data Monitor
    G00795992Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

    If 1st trip DTC is not detected, go to next step.

  5. Maintain engine speed at more than 800 RPM for at least 5 seconds.
  6. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .
