On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC P0452 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229. Refer to DTC P1229: SENSOR POWER SUPPLY .

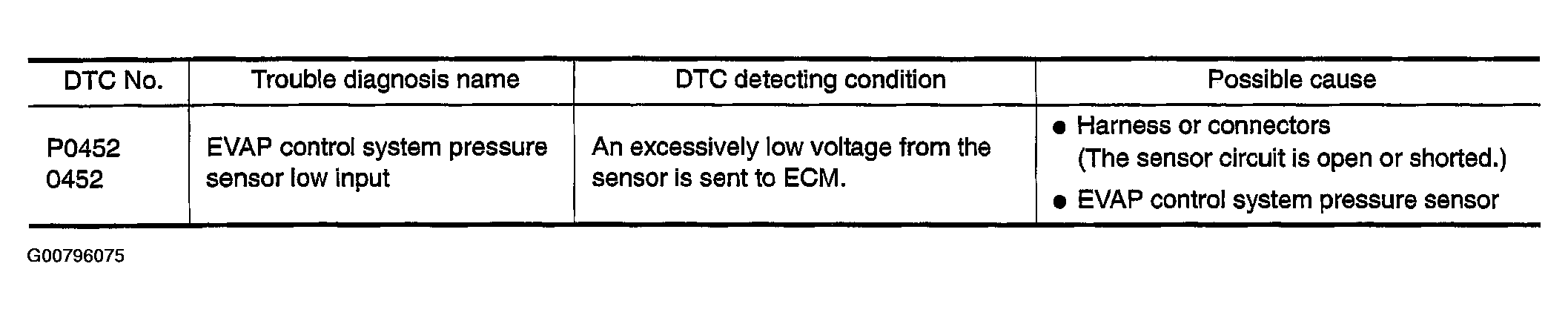

Fig 1: On Board Diagnosis Logic Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
