On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC P0455 is displayed with P1448, first perform trouble diagnosis for DTC P1448. (See DTC P1448: EVAP CANISTER VENT CONTROL VALVE ).

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and EVAP canister purge volume control solenoid valve.

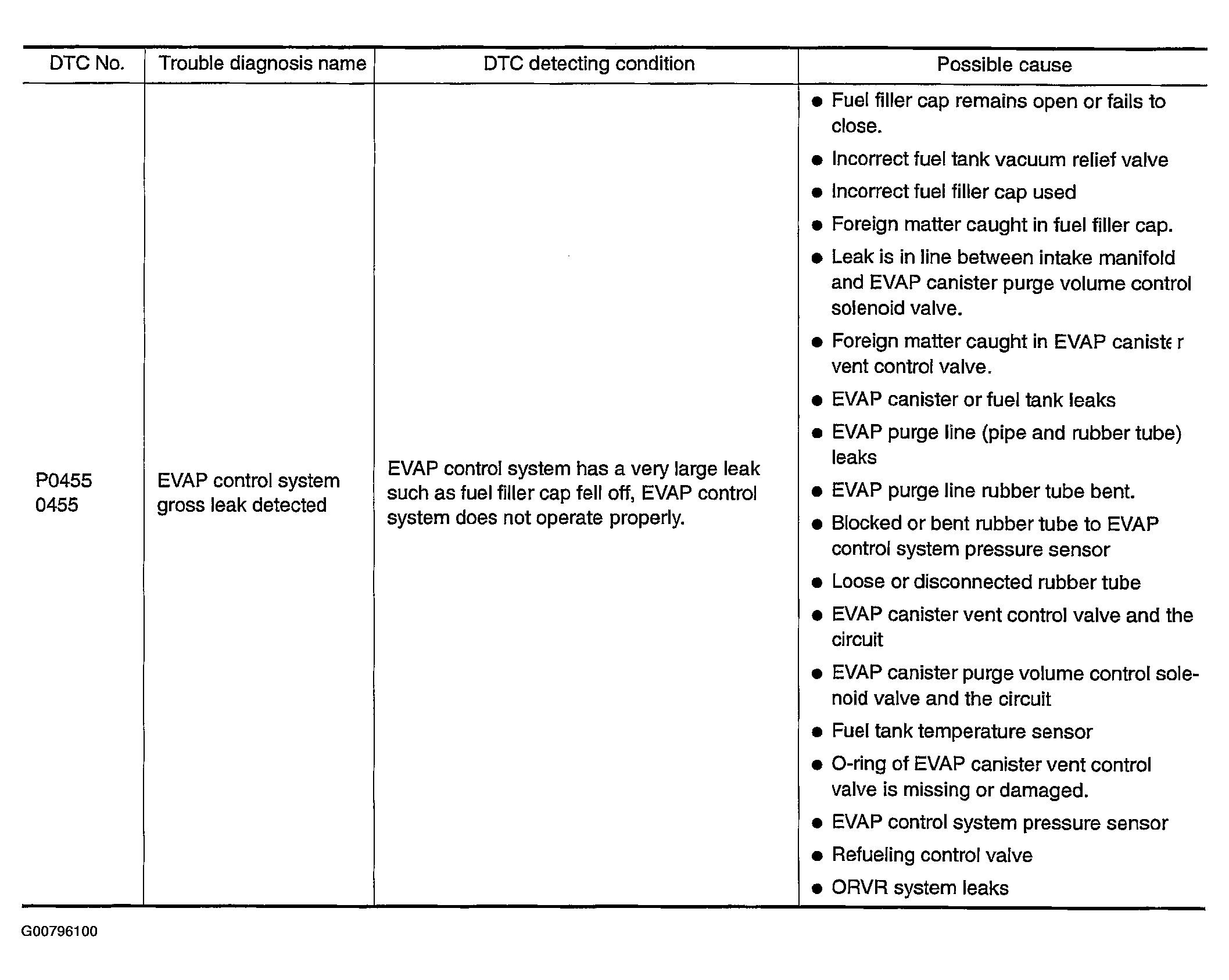

Fig 1: On Board Diagnosis Logic Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
If the fuel filler cap is not tightened properly, the MIL may come on.
Use only a genuine NISSAN rubber tube as a replacement.
