With CONSULT-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

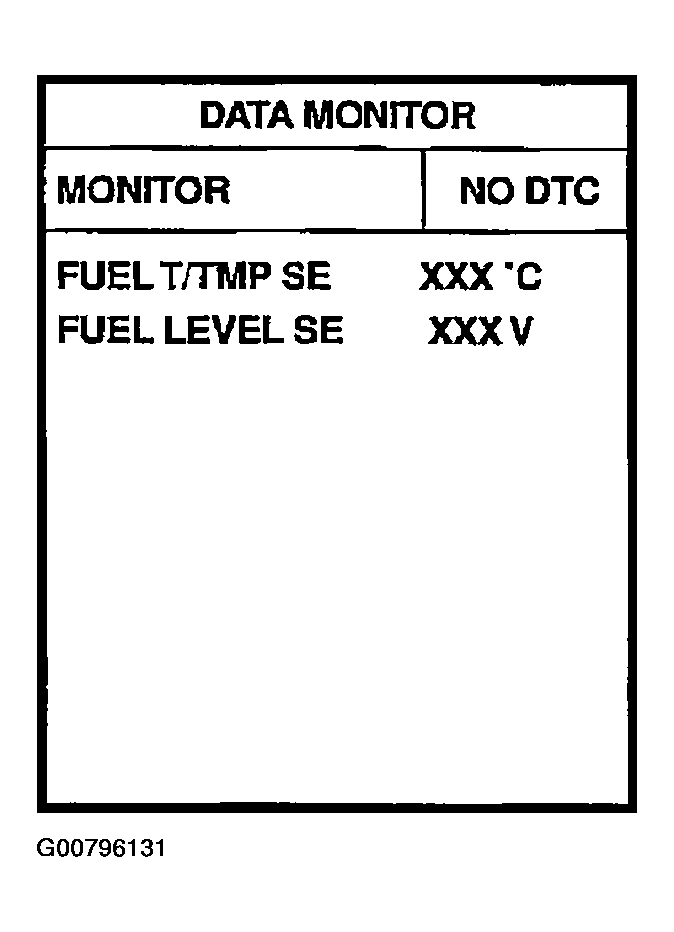

    Fig 1: Scan Tool Display - Data Monitor
    G00796131Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine and wait maximum of 2 consecutive minutes.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
