On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the fuel level sensor does not change. If ECM senses sloshing signal from the sensor, fuel level sensor malfunction is detected.

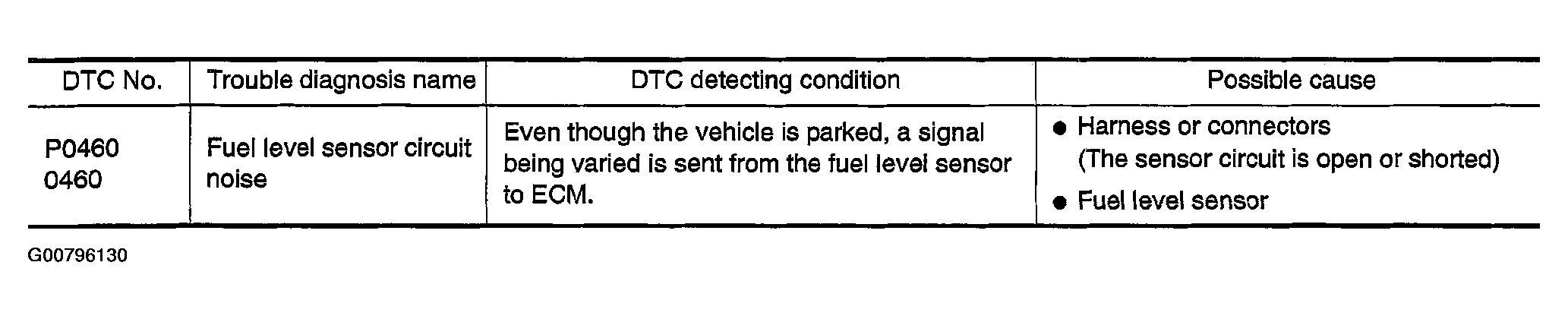

Fig 1: On Board Diagnosis Logic Chart
G00796130Courtesy of NISSAN MOTOR CO., U.S.A.
