On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Driving long distances naturally affect fuel gauge level.

This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has been driven.

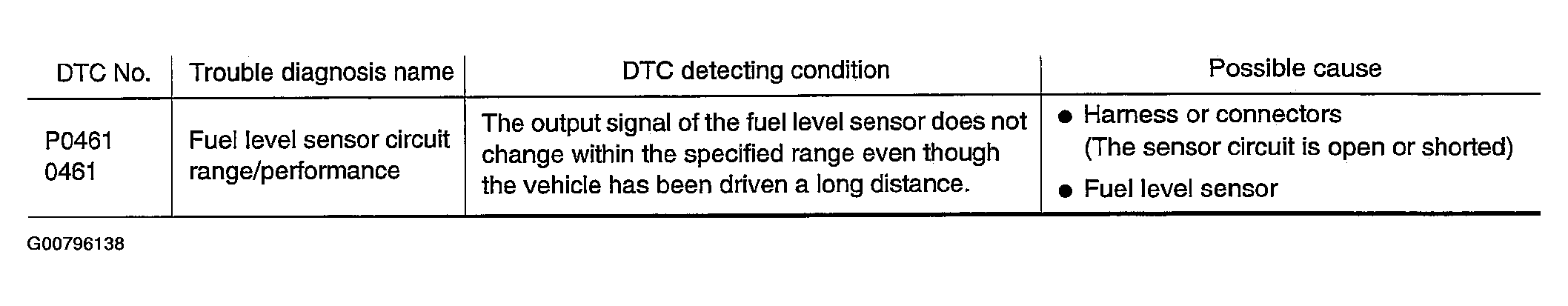

Fig 1: On Board Diagnosis Logic Chart
G00796138Courtesy of NISSAN MOTOR CO., U.S.A.
