On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-diagnosis.

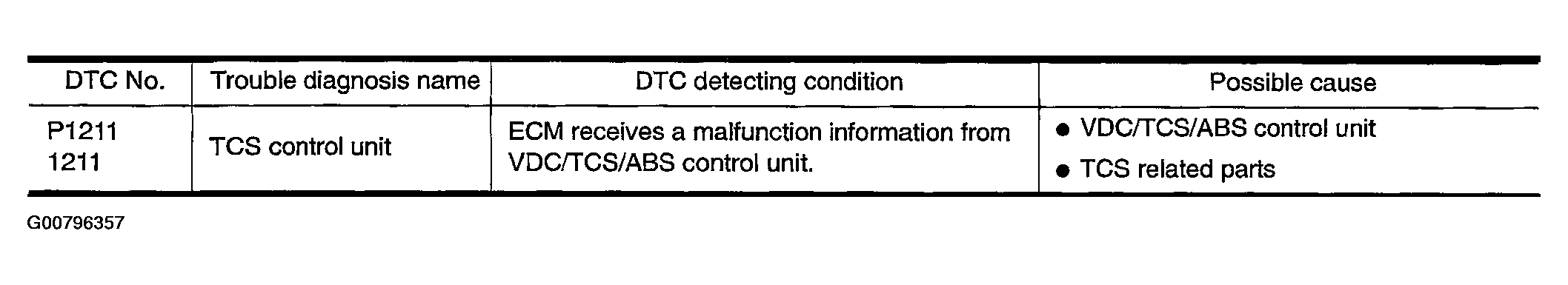

Fig 1: On Board Diagnosis Logic Chart
G00796357Courtesy of NISSAN MOTOR CO., U.S.A.
