2. Check Load Signal Circuit Overall Function-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check "LOAD SIGNAL" indication under the following conditions.

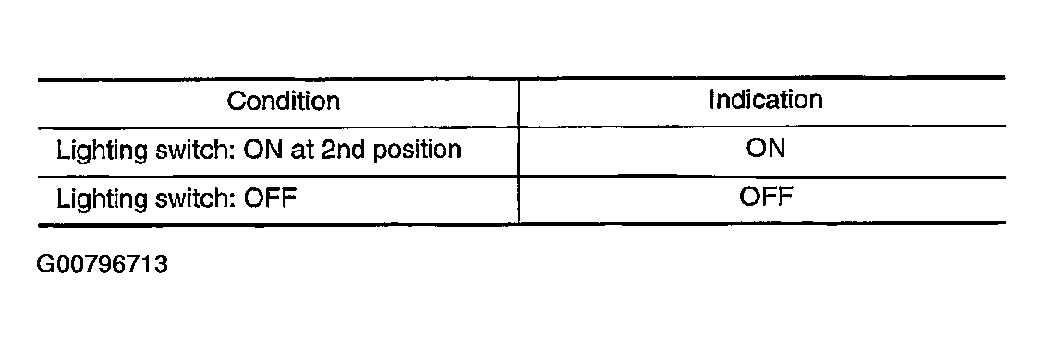

Fig 1: Inspecting Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

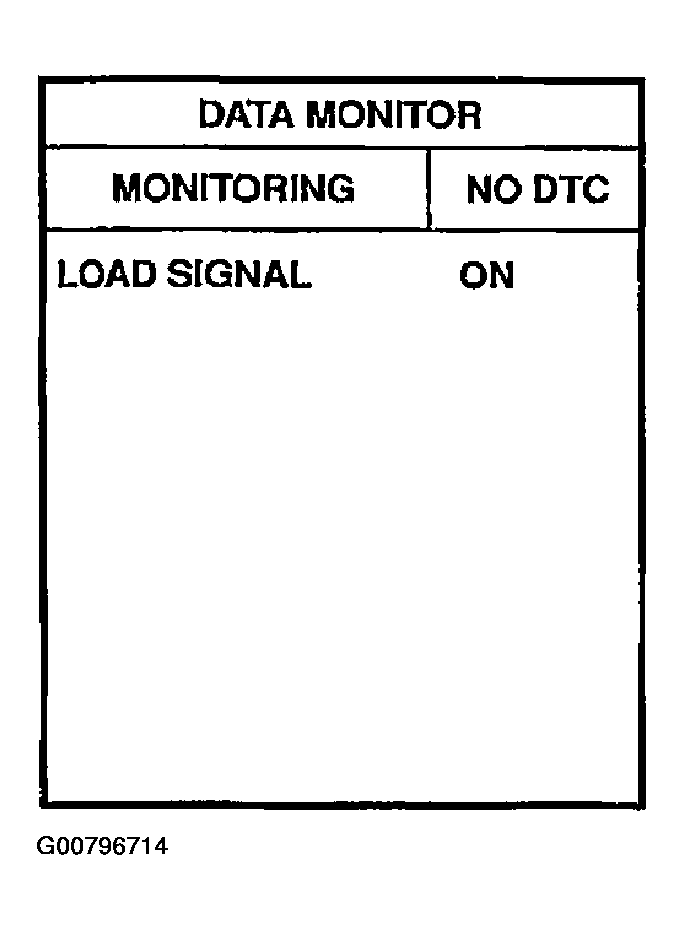

Fig 2: Scan Tool Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTED END
NG: GO TO 7. CHECK HEADLAMP FUNCTION .
