Component Description

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

The fuel pump with a fuel damper is an in-tank type (the pump and damper are located in the fuel tank).

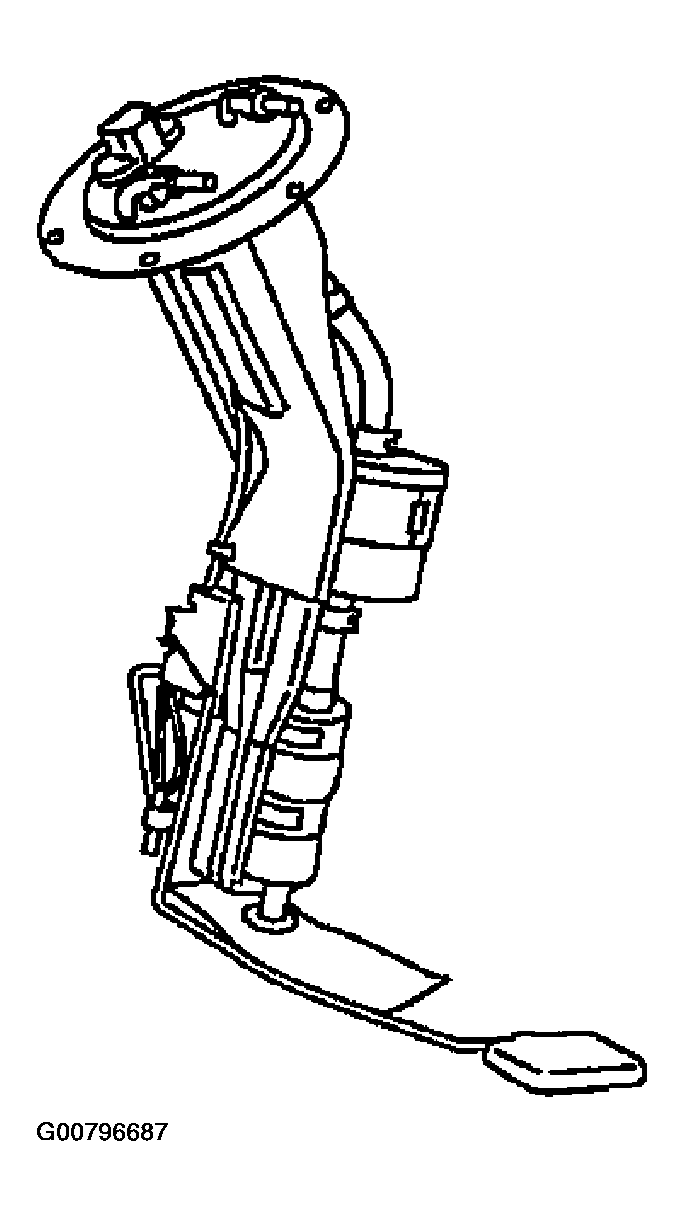

Fig 1: Identifying Fuel Pump Assembly
G00796687Courtesy of NISSAN MOTOR CO., U.S.A.
