Without CONSULT-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between ECM terminal 59 and ground under the following conditions.

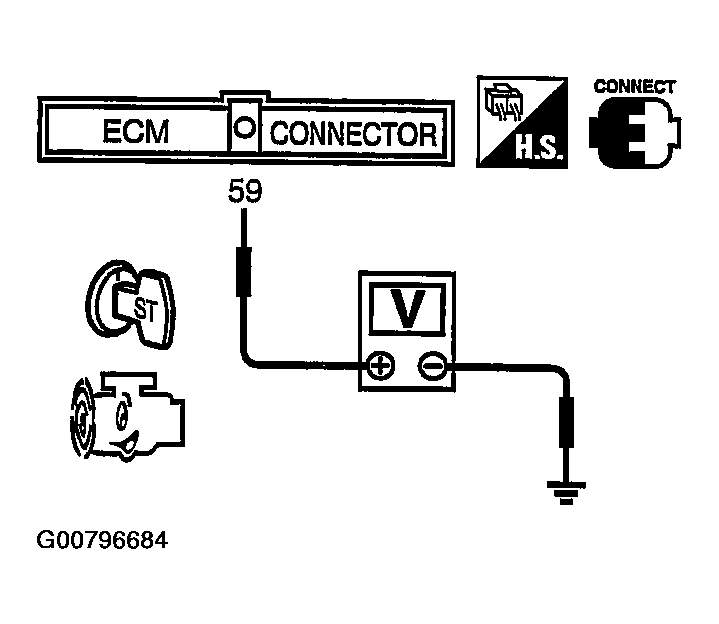

Fig 1: Checking Voltage Between ECM Terminal 59 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

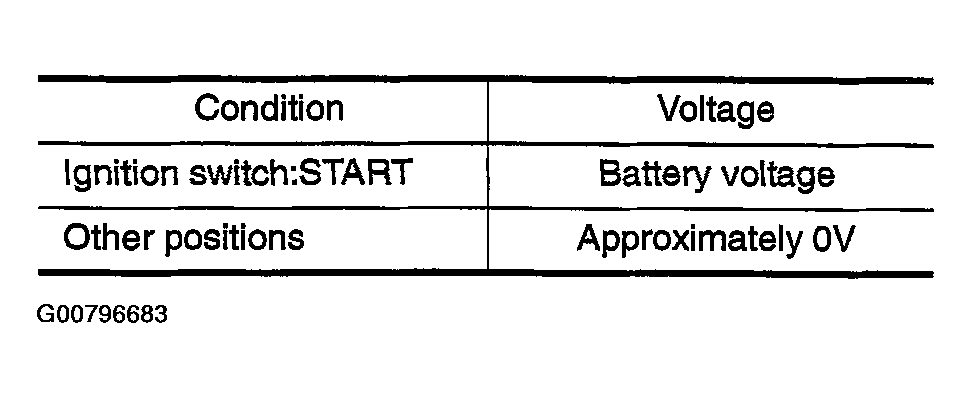

Fig 2: Inspecting Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END
NG: GO TO 4.
