General Precautions

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When replacing fuel line parts, be sure to observe the following.

Put a "CAUTION: INFLAMMABLE" sign in the workshop.
Be sure to work in a well-ventilated area and furnish workshop with a CO₂ fire extinguisher.
Do not smoke while servicing fuel system. Keep open flames and spark away from work area.

CAUTION:

Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in safe area.
- Release fuel pressure from the fuel lines. Refer to FUEL PRESSURE RELEASE .
- Disconnect the negative battery terminal.
Always replace O-rings and clamps with new ones.
Do not kink or twist tubes when they are being installed.

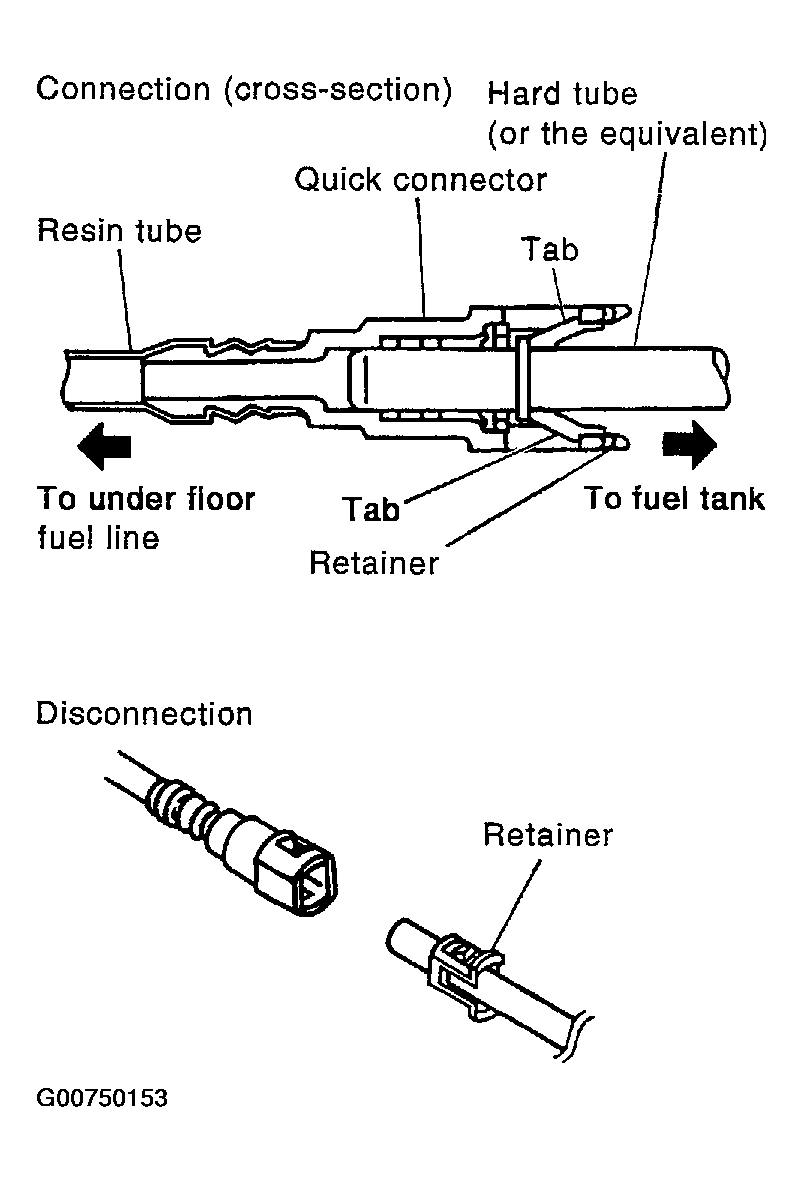

After connecting fuel tube quick connectors, make sure quick connectors are secure.
Ensure that the connector and resin tube do not contact any adjacent parts.
After installing tubes, make sure there is no fuel leakage at connections in the following steps.
- Apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped). Then check for fuel leaks at connections.
- Start the engine and rev it up and check for fuel leaks at connections.
Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the "MIL" may come on.
For servicing "Evaporative Emission System" parts, refer to EVAPORATIVE EMISSION SYSTEM .
For servicing "On Board Refueling Vapor Recovery (ORVR)" parts, refer to ON BOARD REFUELING VAPOR RECOVERY (ORVR) .
