Check Door Lock and Unlock Switch

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR LOCK AND UNLOCK SWITCH
With CONSULT-II

See "DOOR LK SW-LK and UN" in DATA MONITOR mode with CONSULT-II.
- When door lock and unlock switch is turned to lock:
  DOOR LK SW-LK: OFF --> ON
- When lock and unlock switch is turned to unlock:
  DOOR LK SW-UN: OFF --> ON

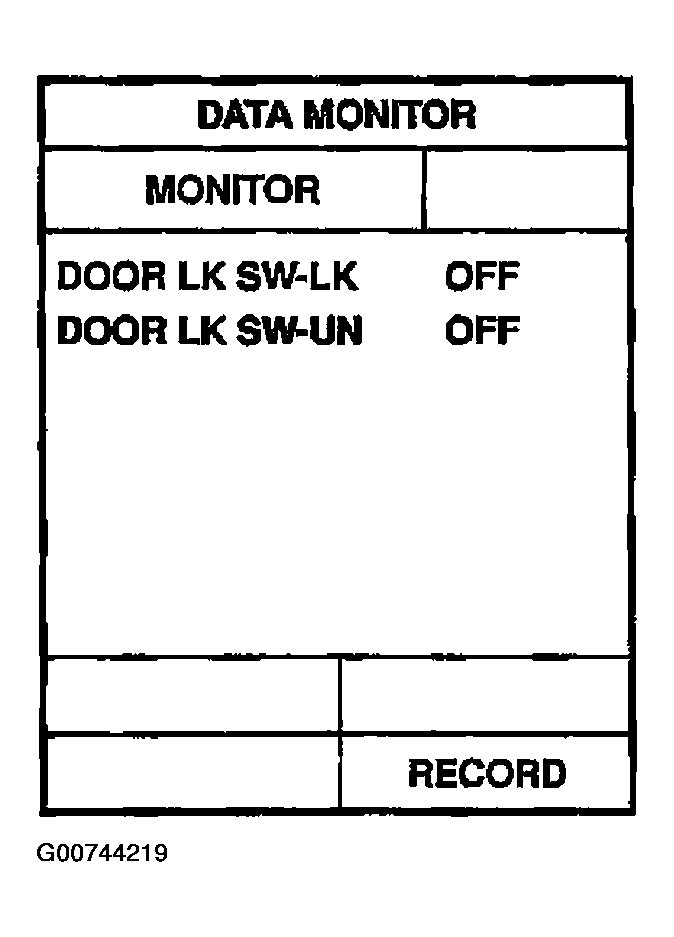

  Fig 1: Checking Door Lock & Unlock Switch With CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check door lock and unlock switch operation in "SWITCH MONITOR" mode. Refer to SWITCH MONITOR .

OK or NG

OK: Door lock and unlock switch is OK.
NG: Replace door lock and unlock switch.
