EGR Temperature Sensor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect EGR temperature sensor harness connector.
Check resistance between EGR temperature sensor terminals 1 and 2 as shown in Fig 1 .

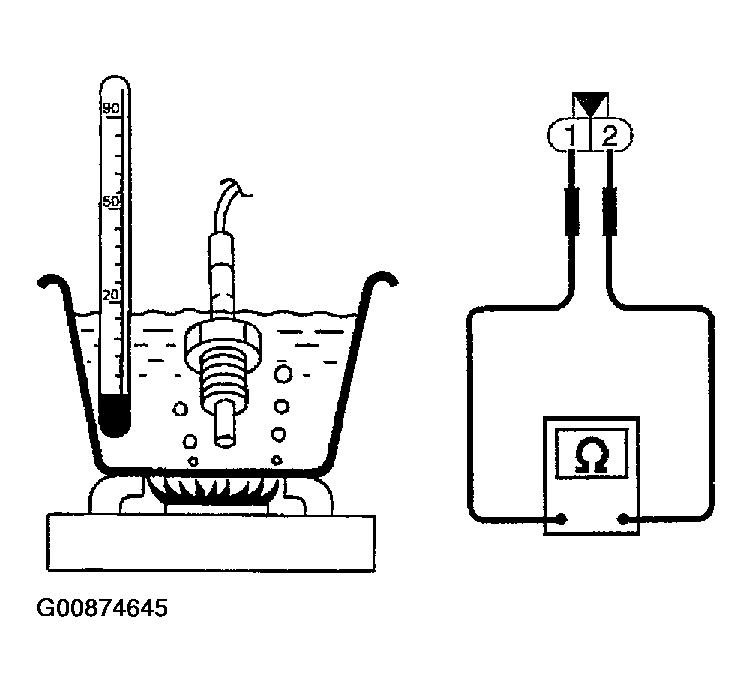

Fig 1: Testing EGR Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

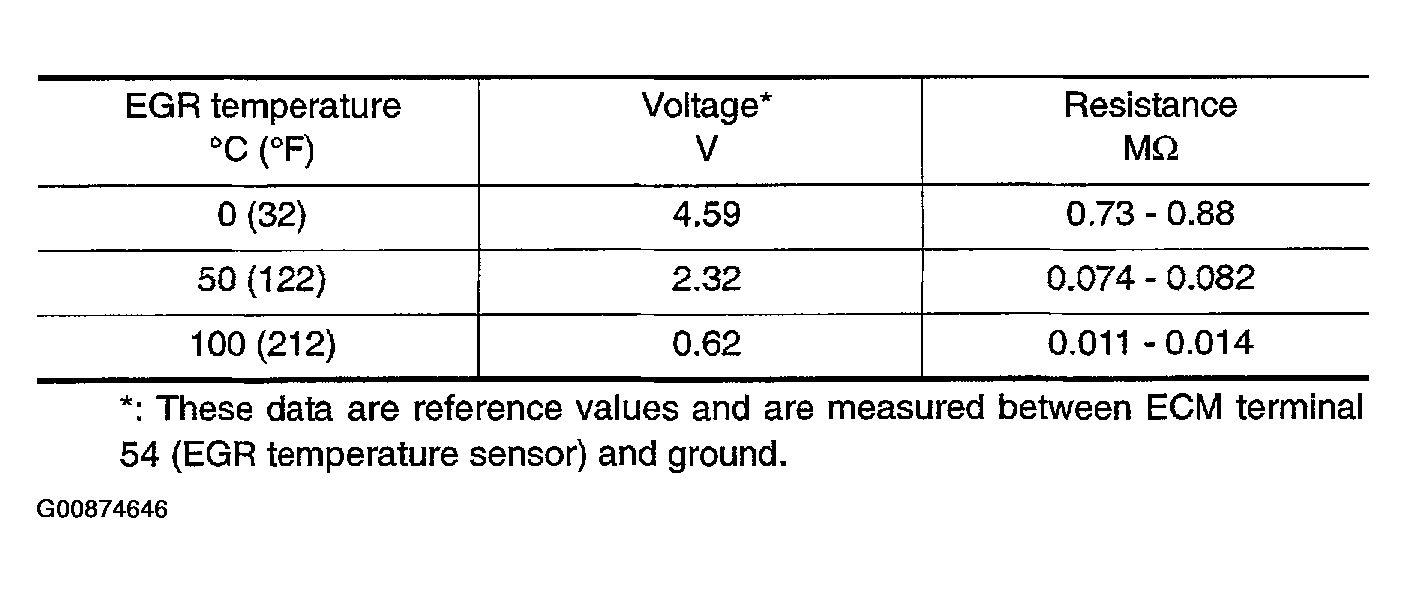

Fig 2: Reference Data
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace EGR temperature sensor.

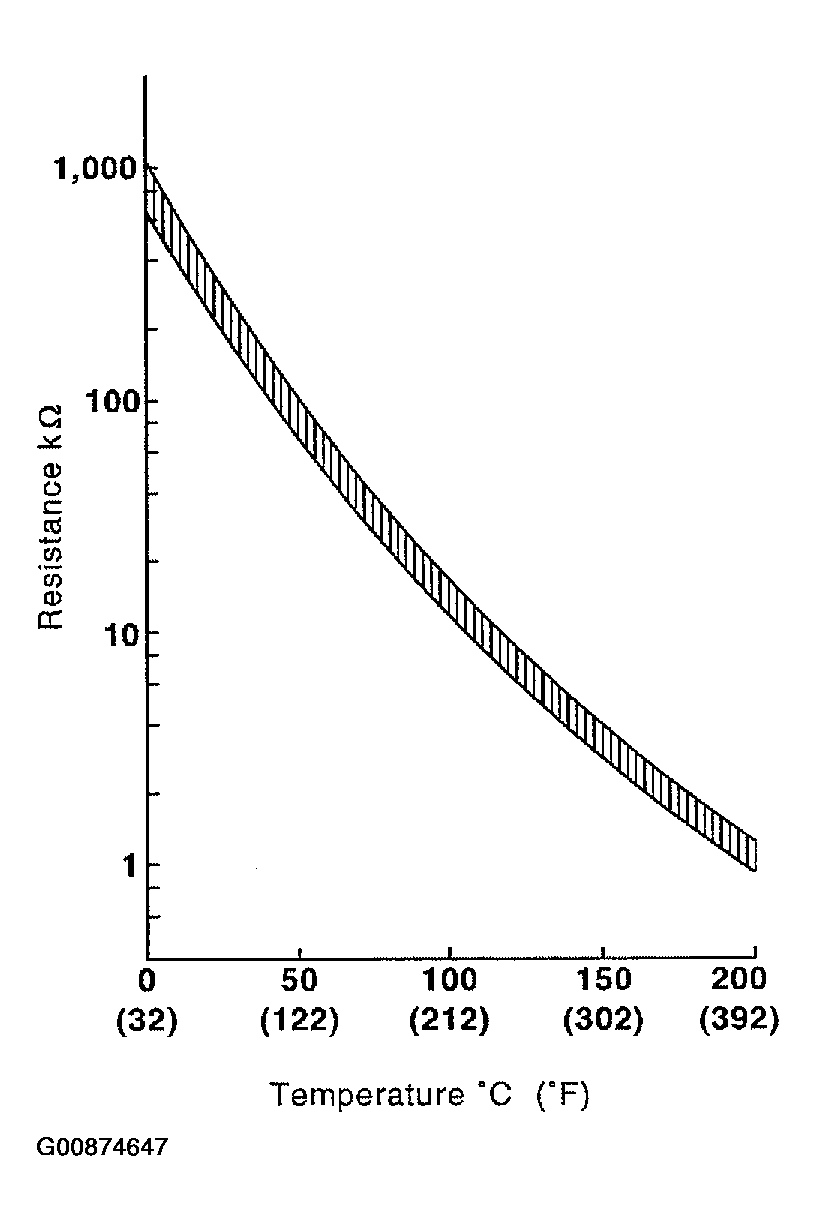

Fig 3: As The Temperature Increases, EGR Temperature Sensor Resistance Decreases

Courtesy of NISSAN MOTOR CO., U.S.A.
