5. Check Radiator Cap

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Apply pressure to cap with a tester.

  1. Radiator cap relief pressure: 59 - 98 kPa (0.6 - 1.0 kg/cm 2,9 - 14 psi

OK or NG

  1. OK: GO TO 6.
  2. NG: Replace radiator cap.

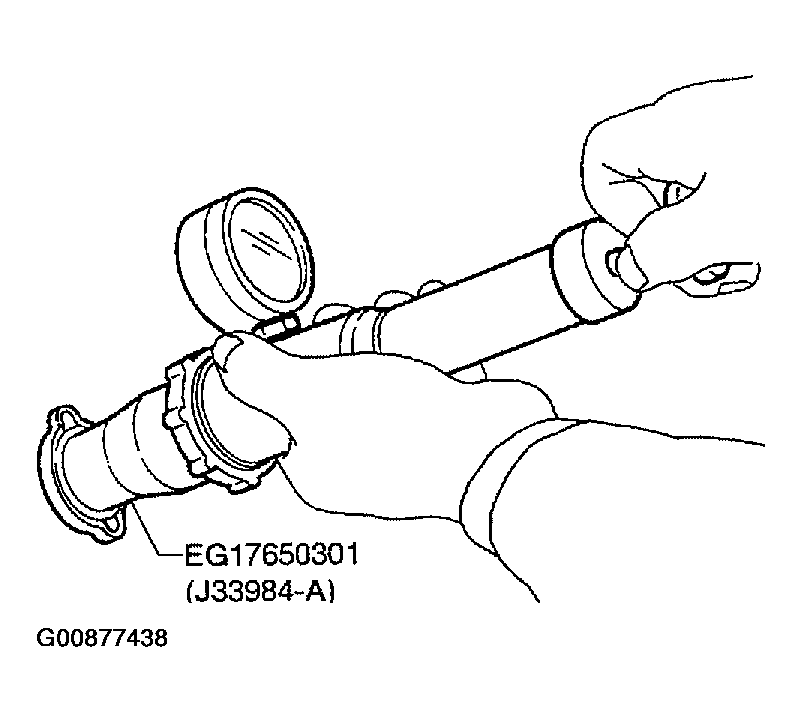

Fig 1: Checking Radiator Cap
G00877438Courtesy of NISSAN MOTOR CO., U.S.A.
