Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect stop lamp switch harness connector.

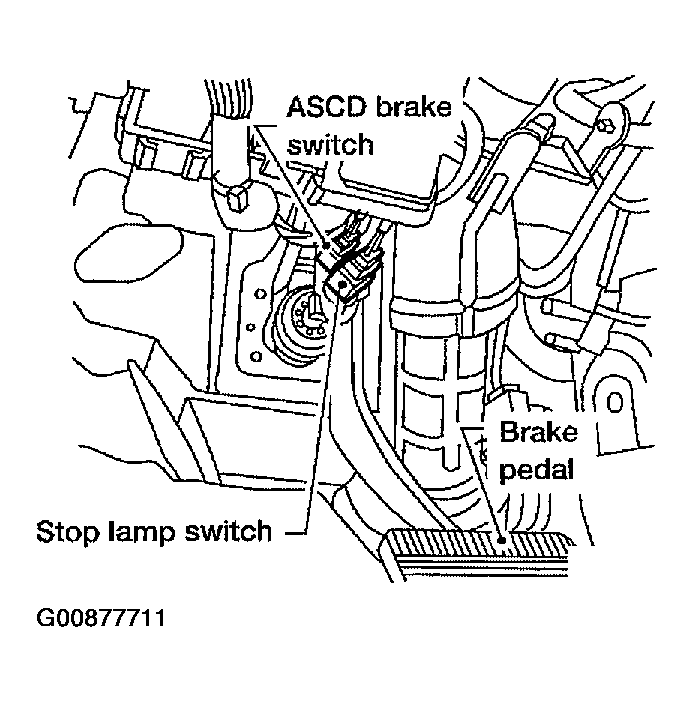

Fig 1: Locating Brake Pedal Switches
Courtesy of NISSAN MOTOR CO., U.S.A.
Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

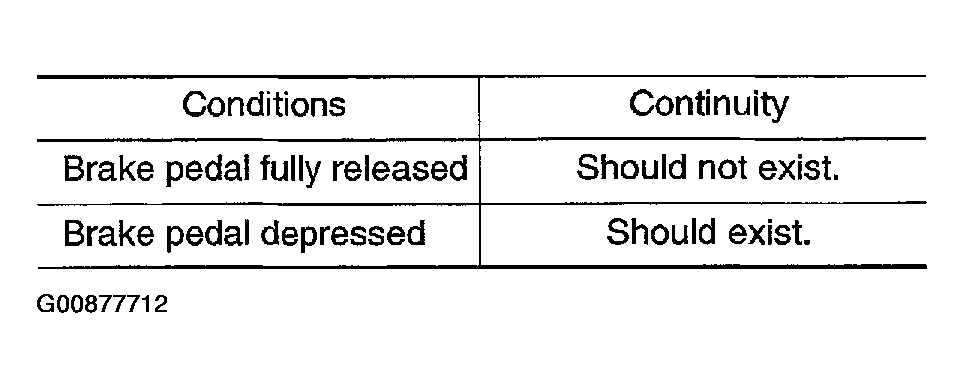

Fig 2: Test Parameters
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, adjust stop lamp switch installation, refer to ASCD BRAKE SWITCH , and perform step 2 again.

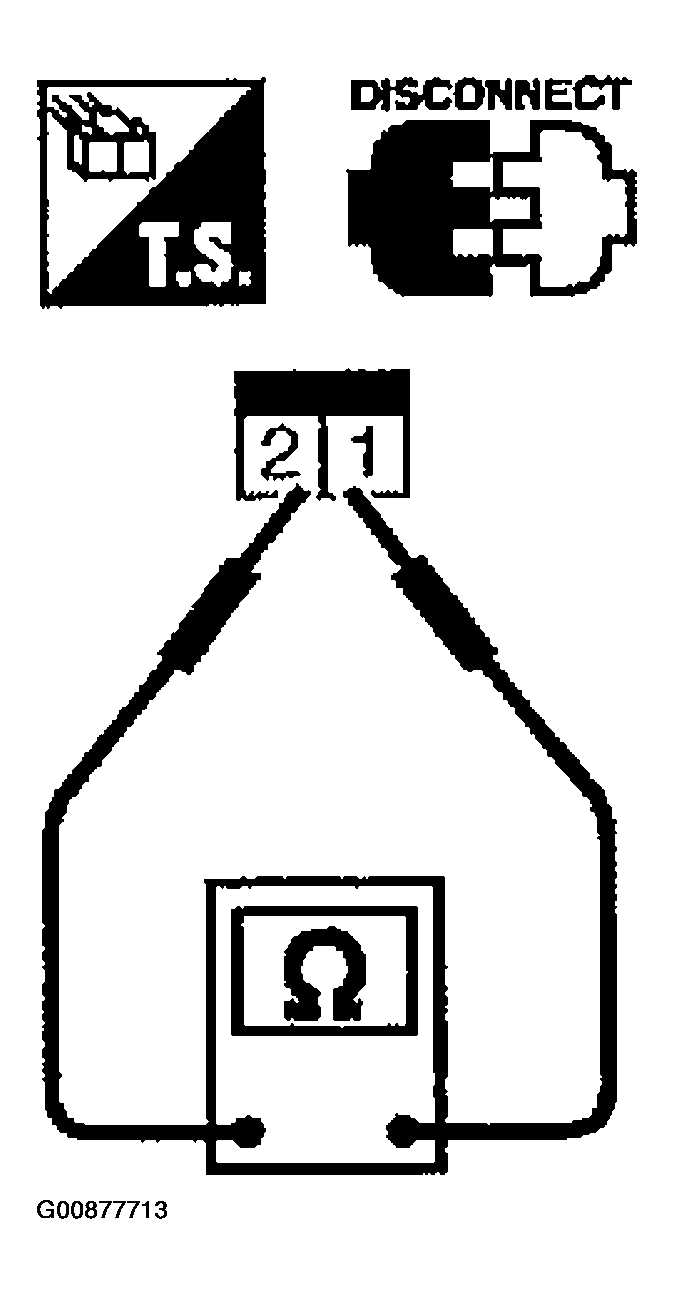

Fig 3: Check Continuity Between Stop Lamp Switch Terminals 1 And 2 Under The Indicated Parameters

Courtesy of NISSAN MOTOR CO., U.S.A.
