Section 423 (Engine Control System - DTC)
>>
DTC P1805: Brake Switch
>>
On Board Diagnosis Logic
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
On Board Diagnosis Logic: Notes
WARNING:
This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
The MIL will not light up for this diagnosis.

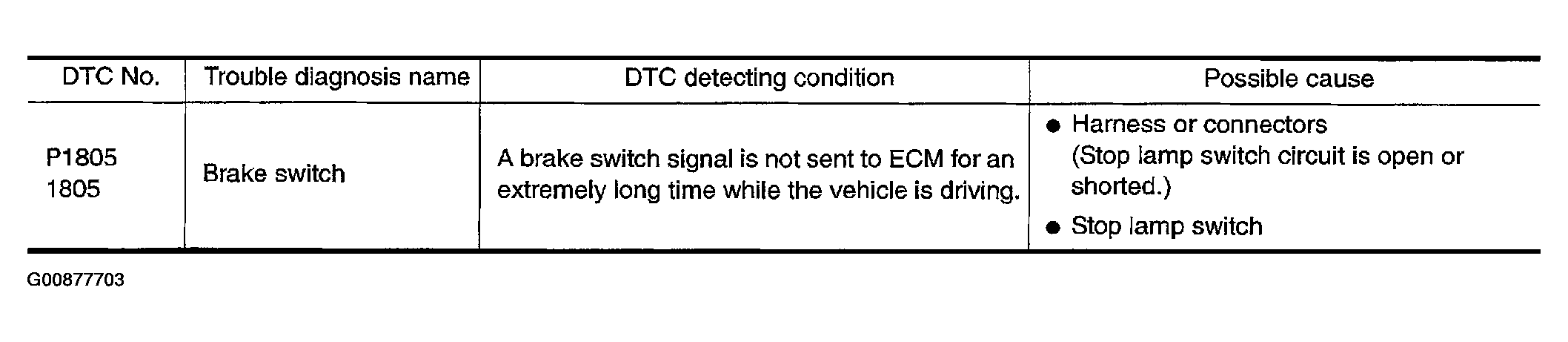

Fig 1: On Board Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
