Intake Air Temperature Sensor

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

INTAKE AIR TEMPERATURE SENSOR TEMPERATURE/RESISTANCE SPECIFICATION

Intake air temperature °C (°F)	Resistance kΩ
25 (77)	1.94 - 2.06

If NG, replace mass air flow sensor (with intake air temperature sensor).

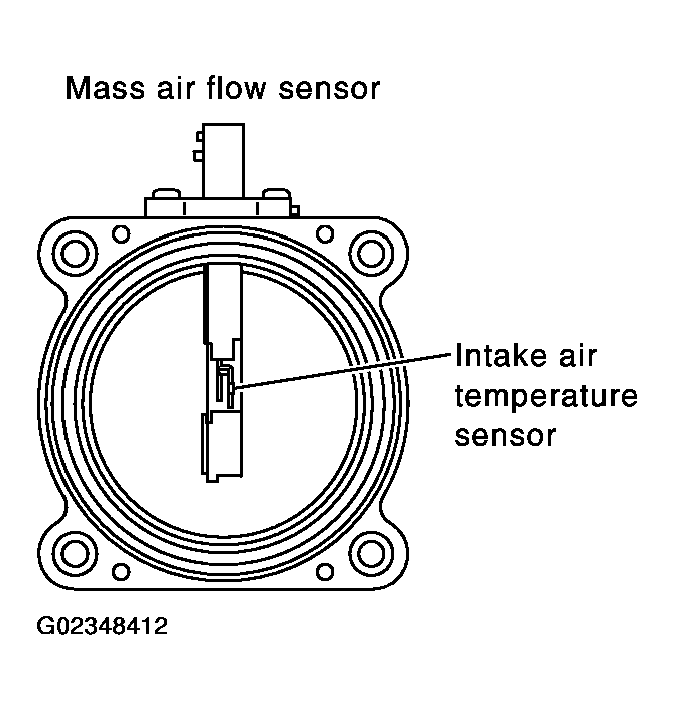

Fig 1: Identifying Intake Air Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

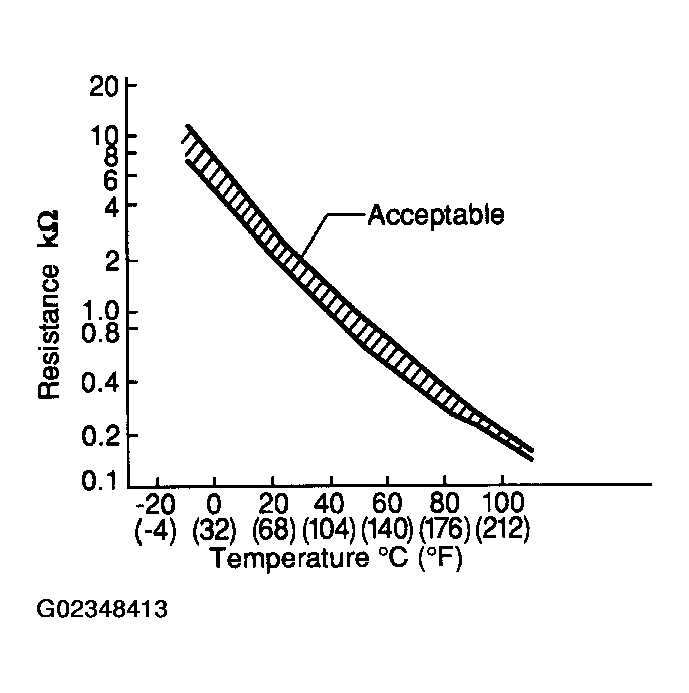

Fig 2: Intake Air Temperature Sensor Temperature/Resistance Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
