With Consult-II
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Start engine and warm it up to normal operating temperature.
- Turn ignition switch OFF and wait at least 10 seconds.
- Start engine and let it idle for at least 70 seconds.
- Select "PURG FLOW P0441" of "EVAPORATIVE SYSTEM" in "DTC CONFIRMATION" mode with CONSULT-II.
- Touch "START".
If "COMPLETED" is displayed, go to step 7.

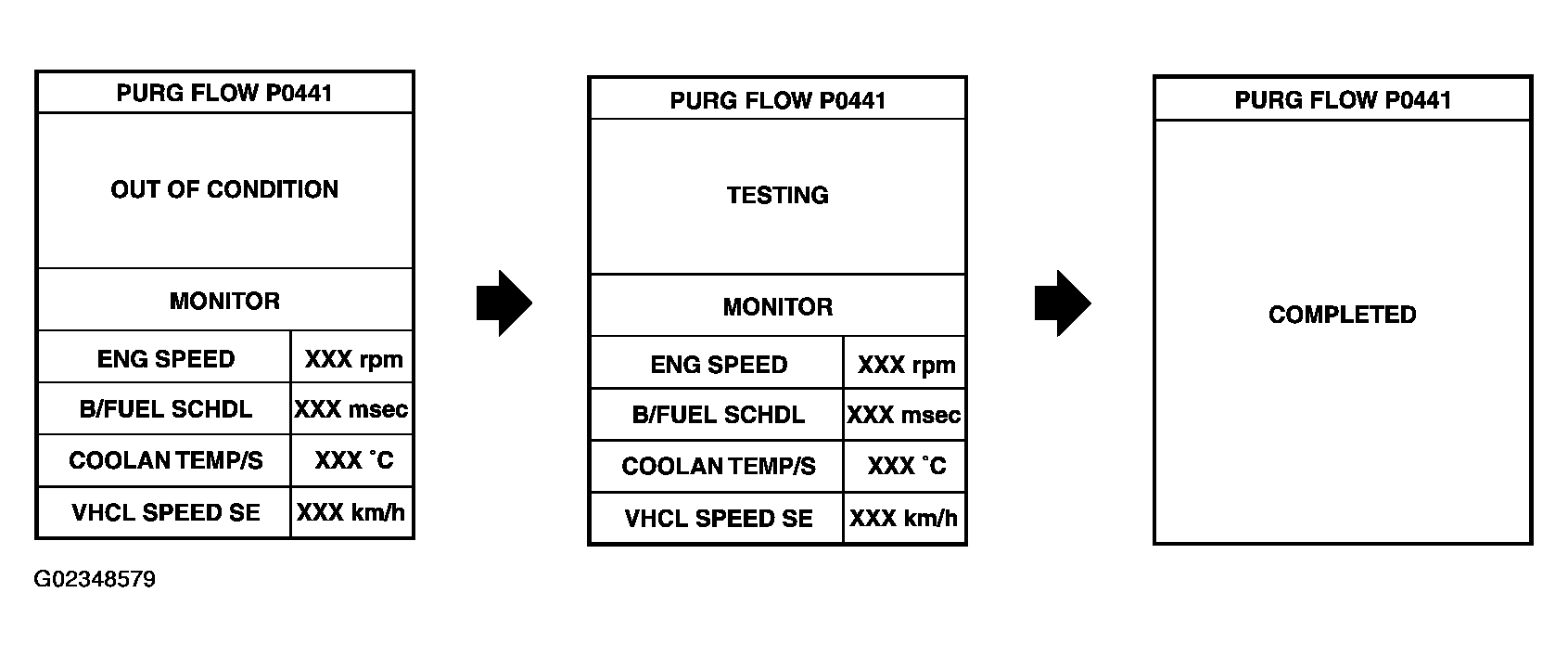

- When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take at least 35 seconds.)COMPONENTS SUITABLE POSITION
Shift lever Suitable position VHCL SPEED SE 32 - 120 km/h (20 - 75 MPH) ENG SPEED 500 - 3,000 RPM B/FUEL SCHDL 1.3 - 9.0 msec COOLAN TEMP/S 70 - 100°C (158 - 212°F) If "TESTING" is not changed for a long time, retry from step 2.
- Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "Diagnostic Procedure ".
