With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for at least 60 seconds.
  4. If 1st trip DTC is detected, go to "Diagnostic Procedure "

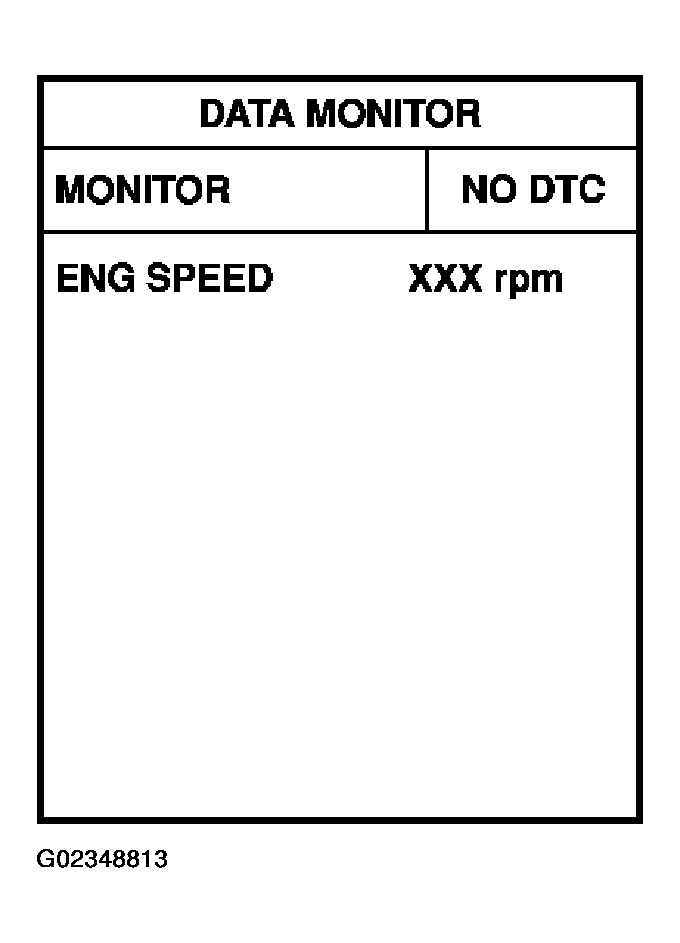

    Fig 1: Identifying Data Monitor Display On Consult-II Screen
    G02348813Courtesy of NISSAN MOTOR CO., U.S.A.
