Alphabetical Index

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

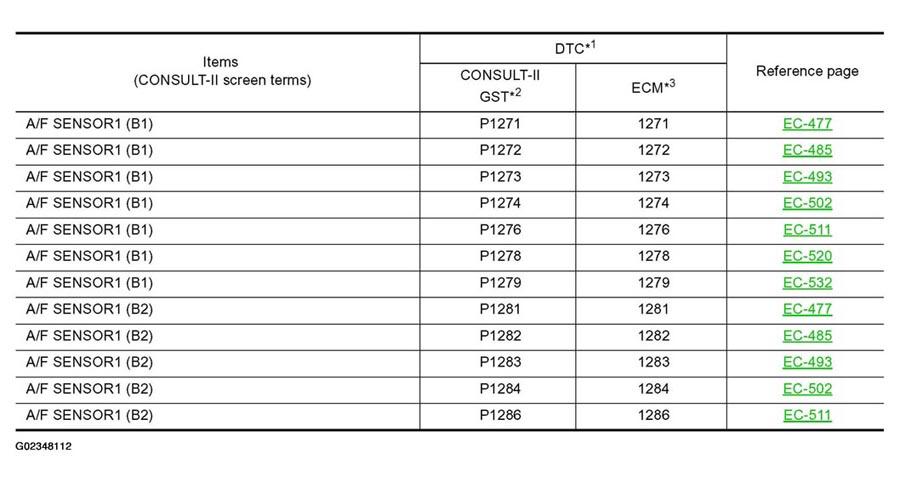

Fig 1: Alphabetical Index (1 of 5)

G02348112

Courtesy of NISSAN MOTOR CO., U.S.A.

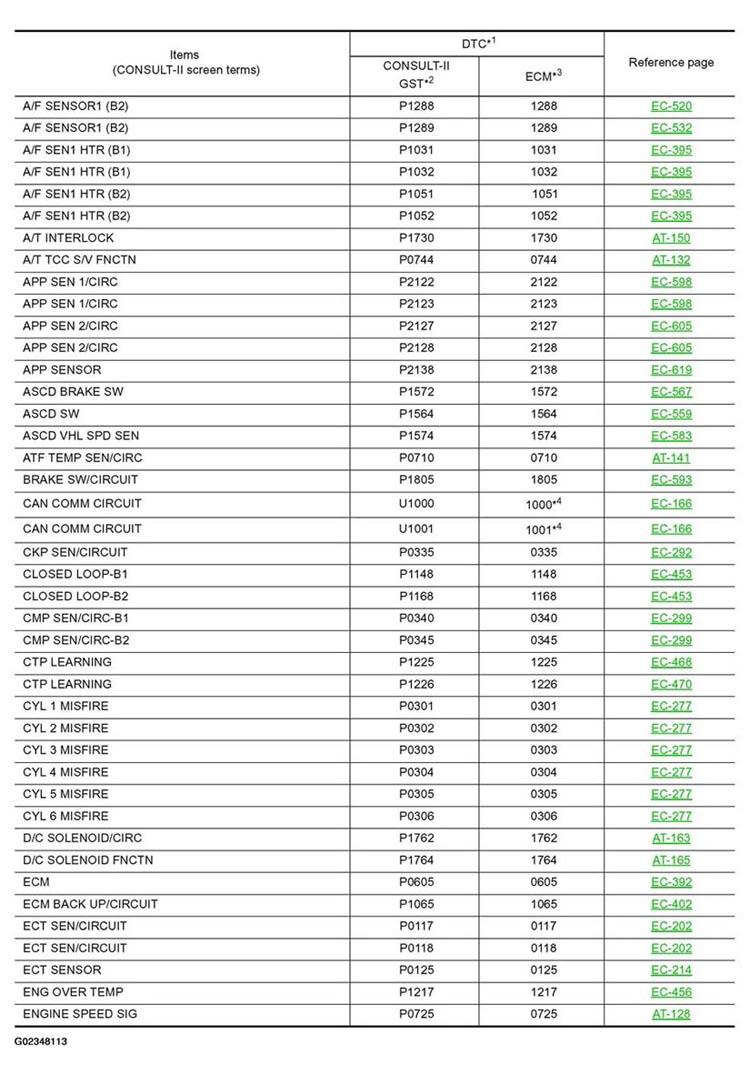

Fig 2: Alphabetical Index (2 of 5)

G02348113

Courtesy of NISSAN MOTOR CO., U.S.A.

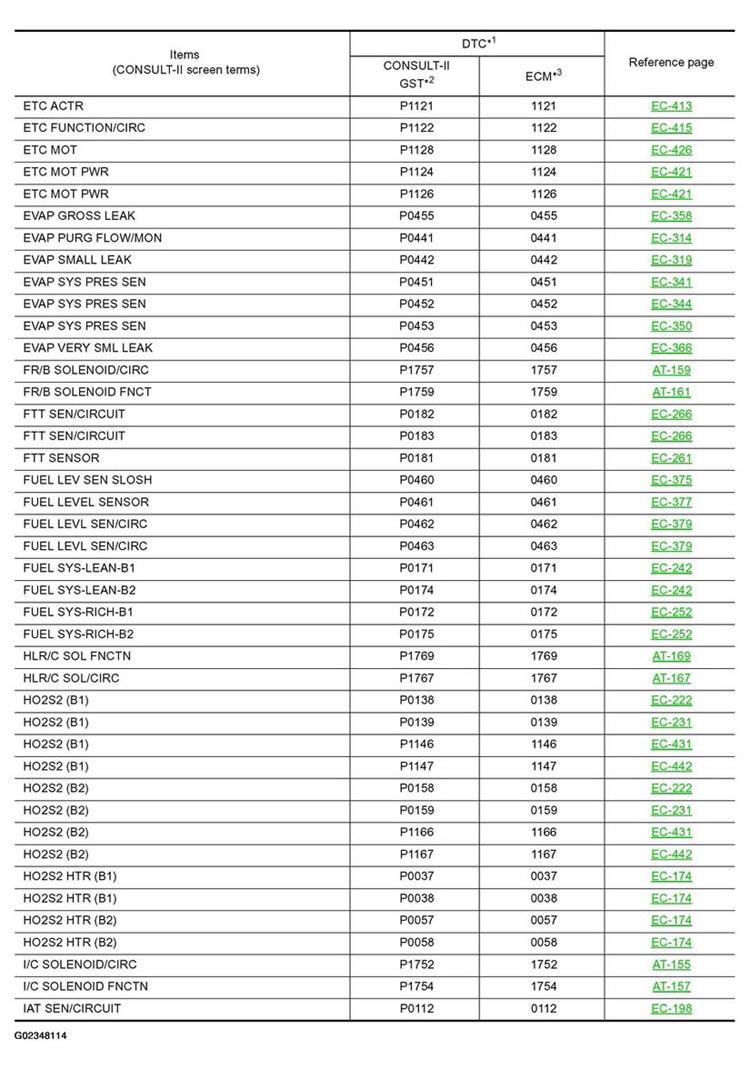

Fig 3: Alphabetical Index (3 of 5)

G02348114

Courtesy of NISSAN MOTOR CO., U.S.A.

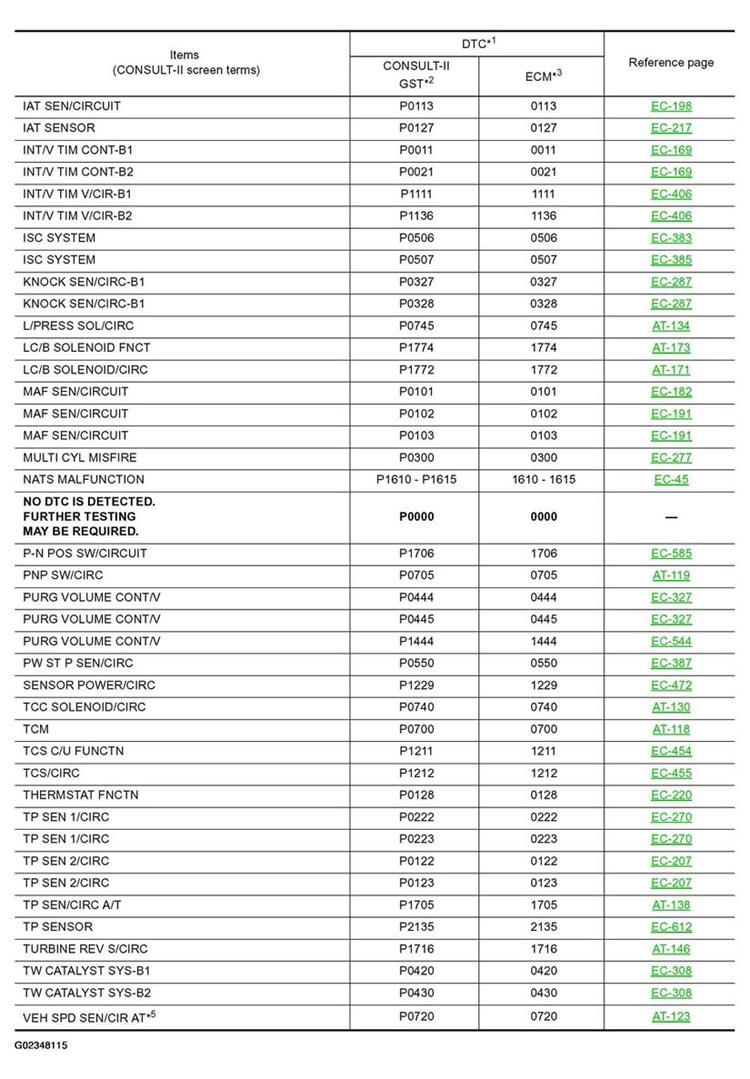

Fig 4: Alphabetical Index (4 of 5)

G02348115

Courtesy of NISSAN MOTOR CO., U.S.A.

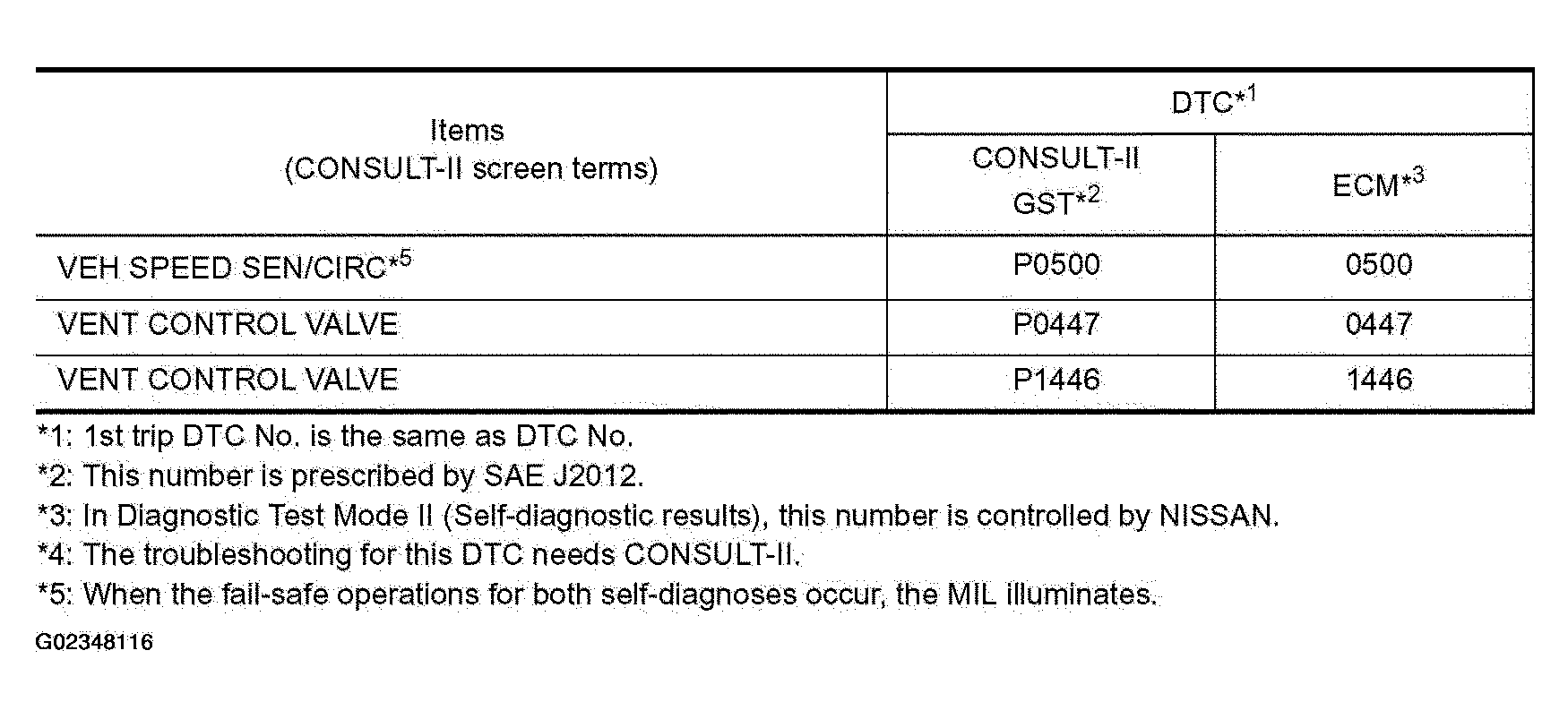

Fig 5: Alphabetical Index (5 of 5)

G02348116

Courtesy of NISSAN MOTOR CO., U.S.A.
