System - Basic Engine Control System

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

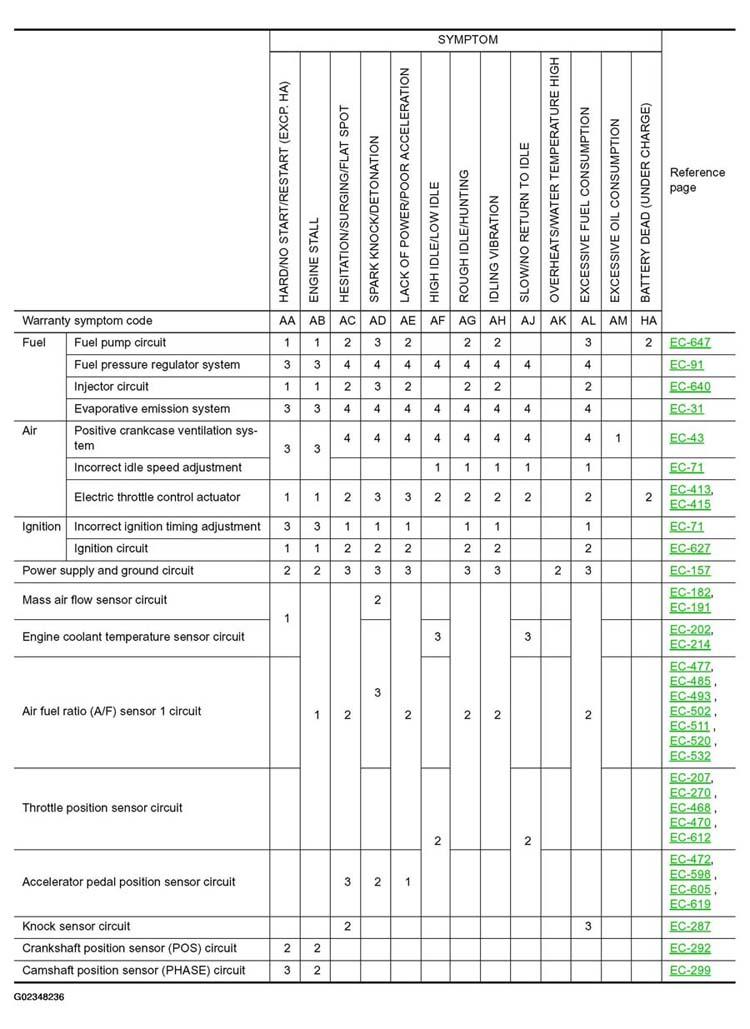

Fig 1: Symptom Matrix Chart - System - Basic Engine Control System (1 Of 2)
G02348236Courtesy of NISSAN MOTOR CO., U.S.A.

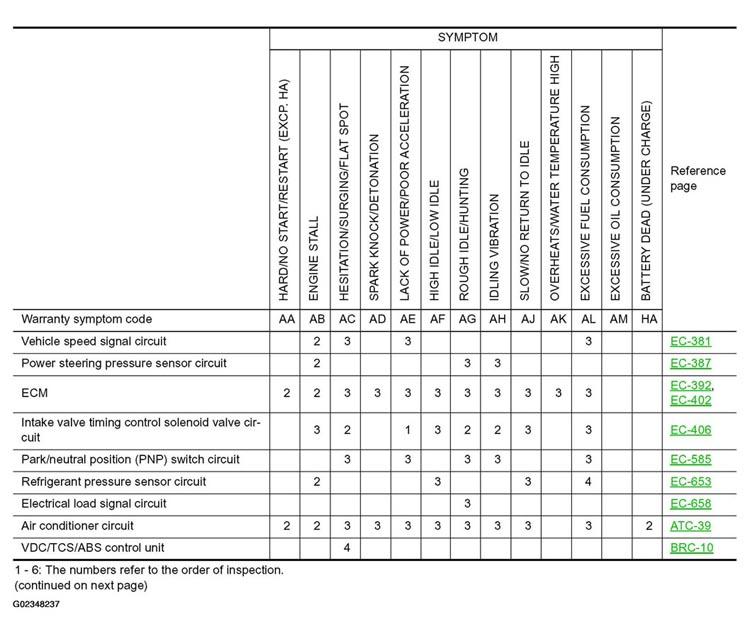

Fig 2: Symptom Matrix Chart - System - Basic Engine Control System (2 Of 2)
G02348237Courtesy of NISSAN MOTOR CO., U.S.A.
