Check ACC Switch

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ACC SWITCH
With CONSULT-II

Check ACC switch ("ACC ON SW") in "DATA MONITOR" mode with CONSULT-II.

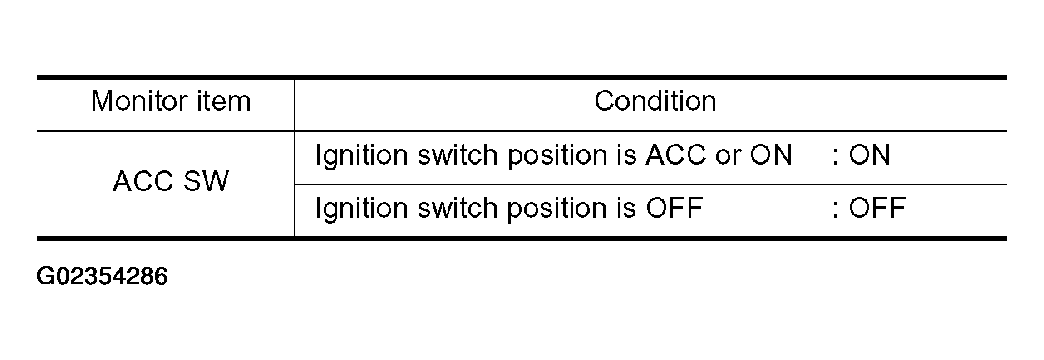

Fig 1: Conditions For Checking ACC Switch In Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

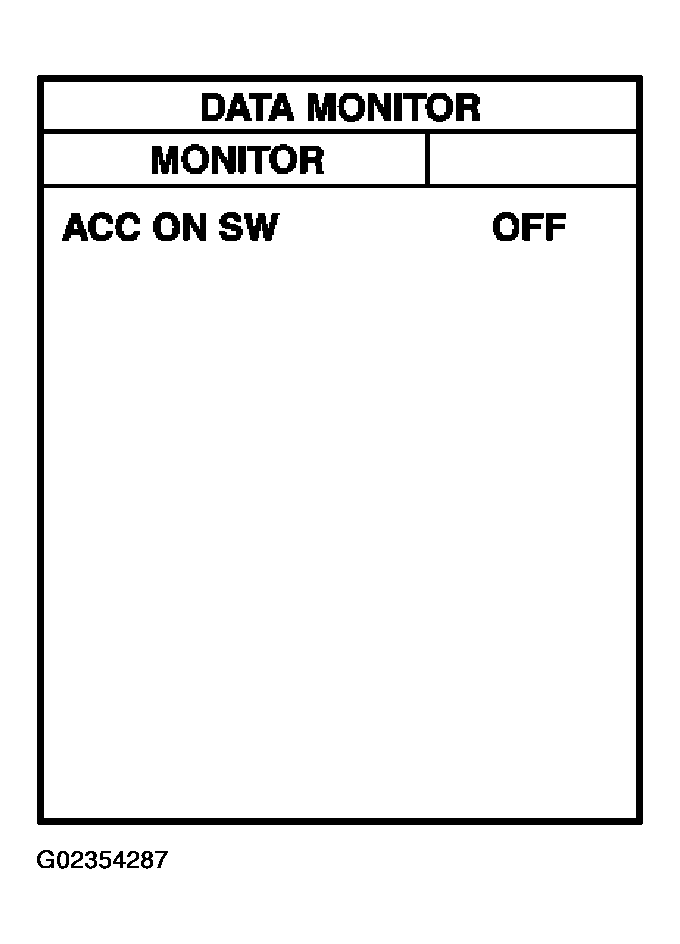

Fig 2: CONSULT-II Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

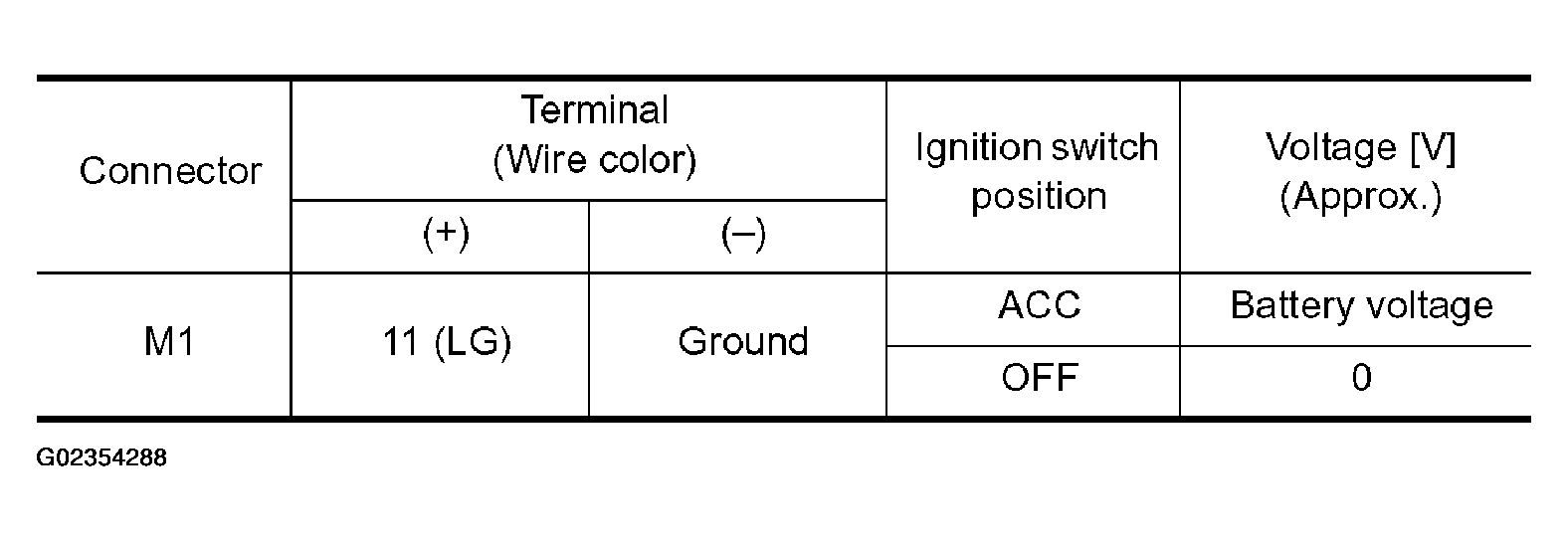

Fig 3: BCM Connector And Ground Voltage Table
Courtesy of NISSAN MOTOR CO., U.S.A.

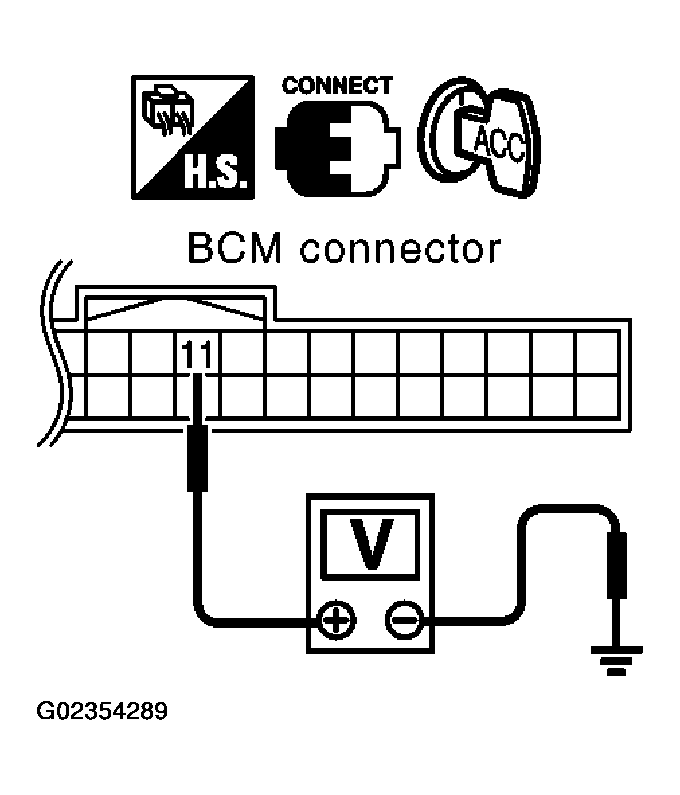

Fig 4: Checking Voltage Between BCM Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: ACC switch is OK.
2. NG: Check the following.
  - 10A fuse [No. 6, located in the fuse block (J/B)]
  - Harness for open or short between BCM and fuse
