Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove the dash side finisher. Refer to "BODY SIDE TRIM " .
Disconnect BCM connector.
Remove bracket mounting screws (3) to remove BCM and fuse block with bracket.

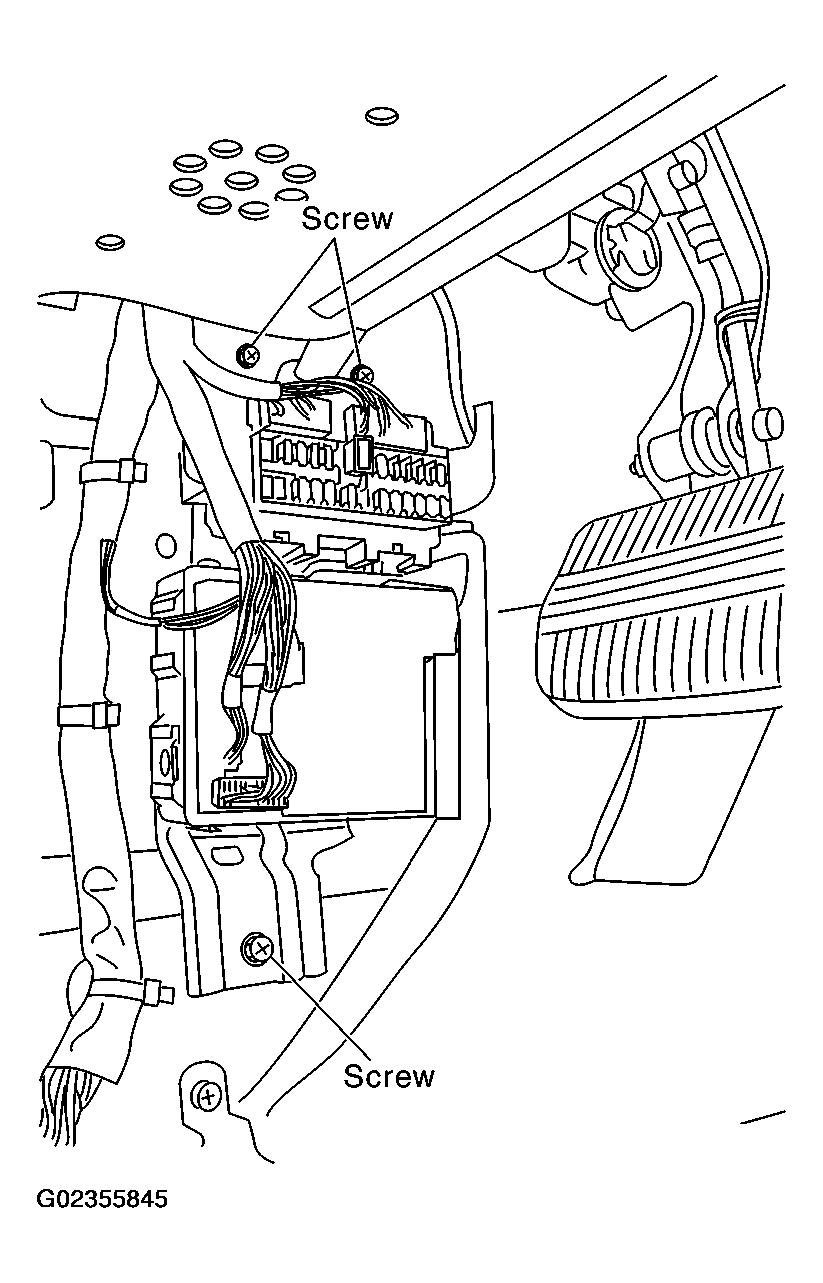

Fig 1: Removing Bracket Mounting Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.

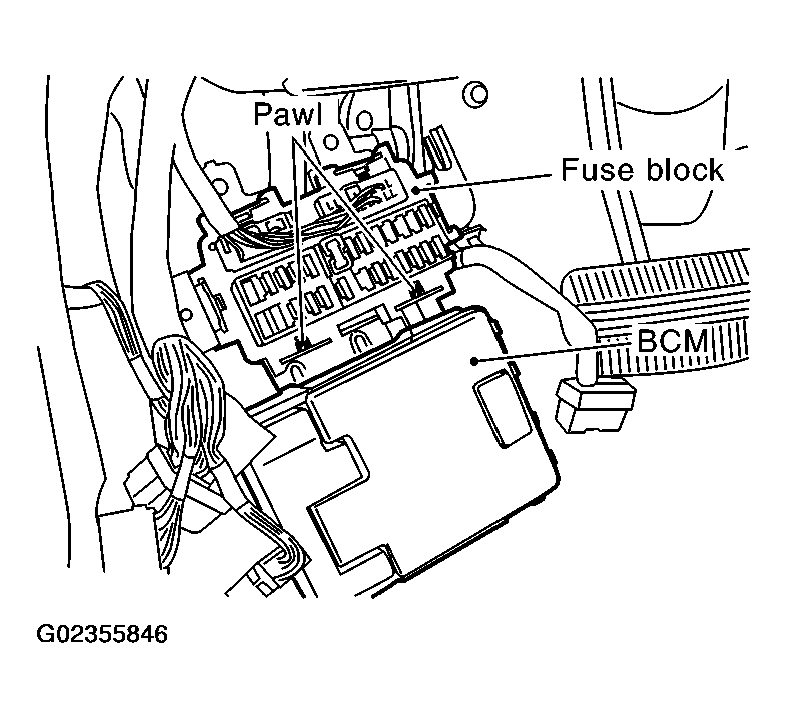

Fig 2: Raising Pawl Of Fuse Block And Removing Bracket From Fuse Block To Remove BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
