Removal And Installation Of BCM: Removal

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove the dash side finisher. Refer to , "BODY SIDE TRIM " .
Disconnect BCM connector.
Remove bracket mounting screws (3) to remove BCM and fuse block with bracket.

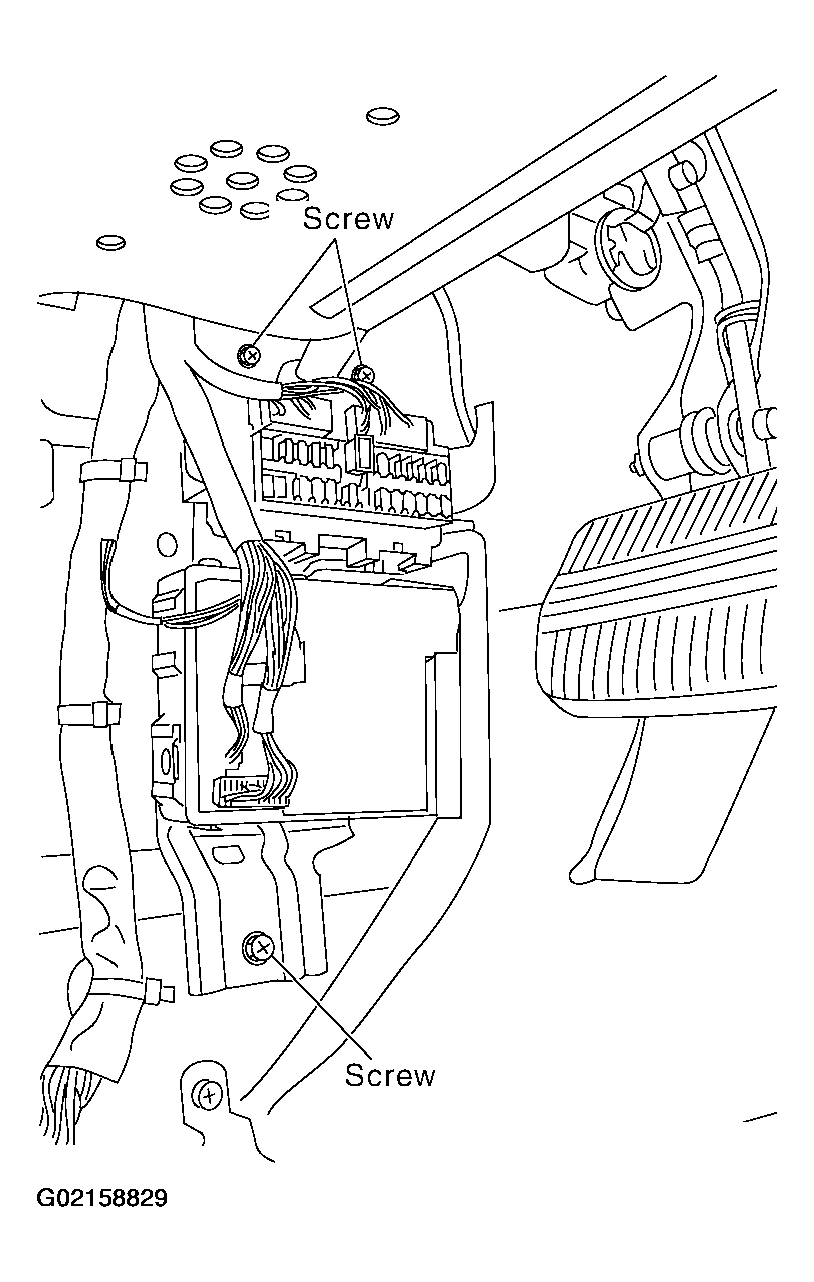

Fig 1: Locating Bracket Mounting Screws (3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.

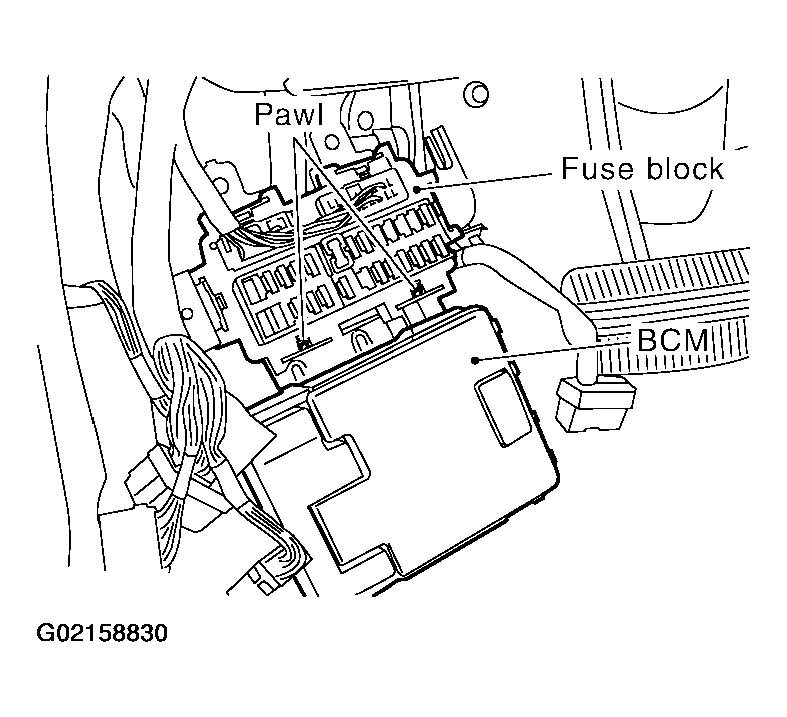

Fig 2: Locating Pawl Of Fuse Block For Raising
Courtesy of NISSAN MOTOR CO., U.S.A.
