Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove the dash side finisher (LH). Refer to "EXTERIOR & INTERIOR " article.
Disconnect BCM connector.
Remove bracket mounting screws (3) to remove BCM and fuse block with bracket.

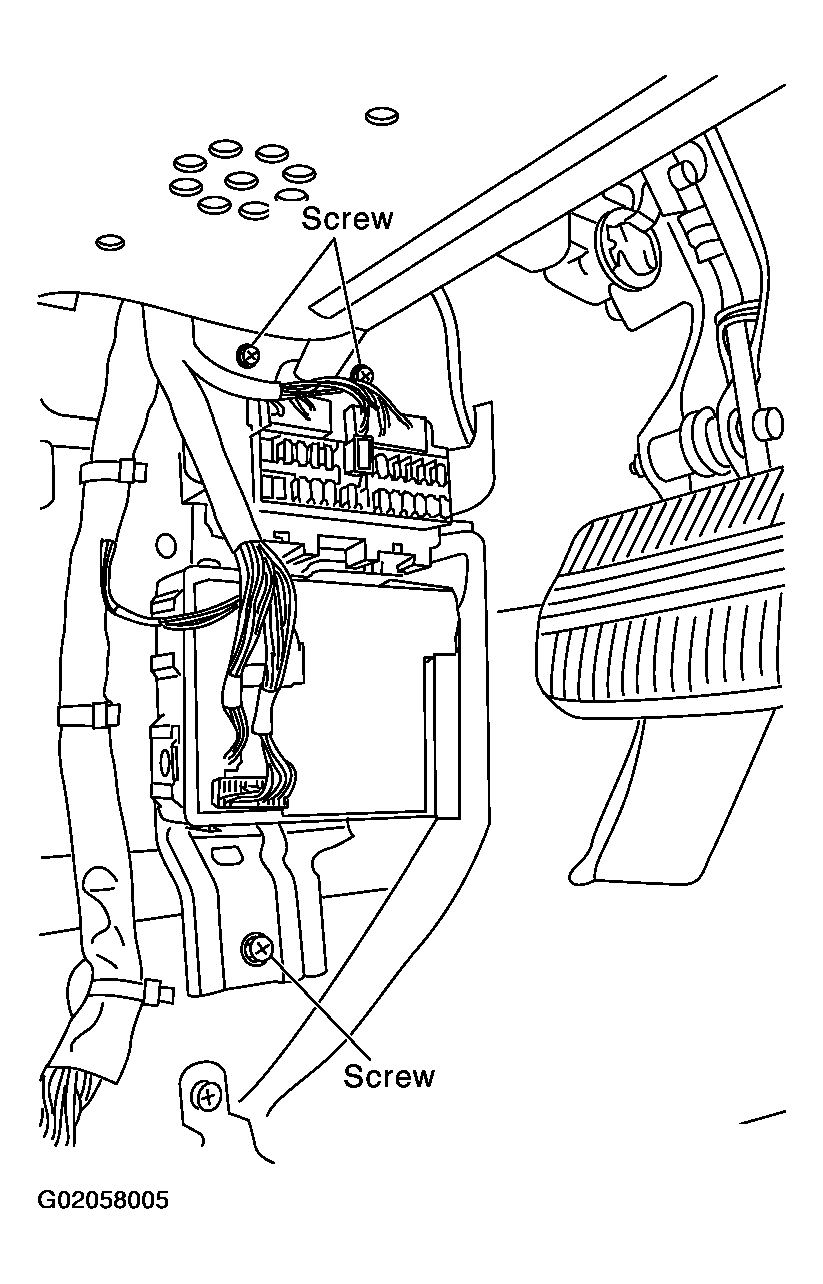

Fig 1: Locating Bracket Mounting Screws For Removing BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.

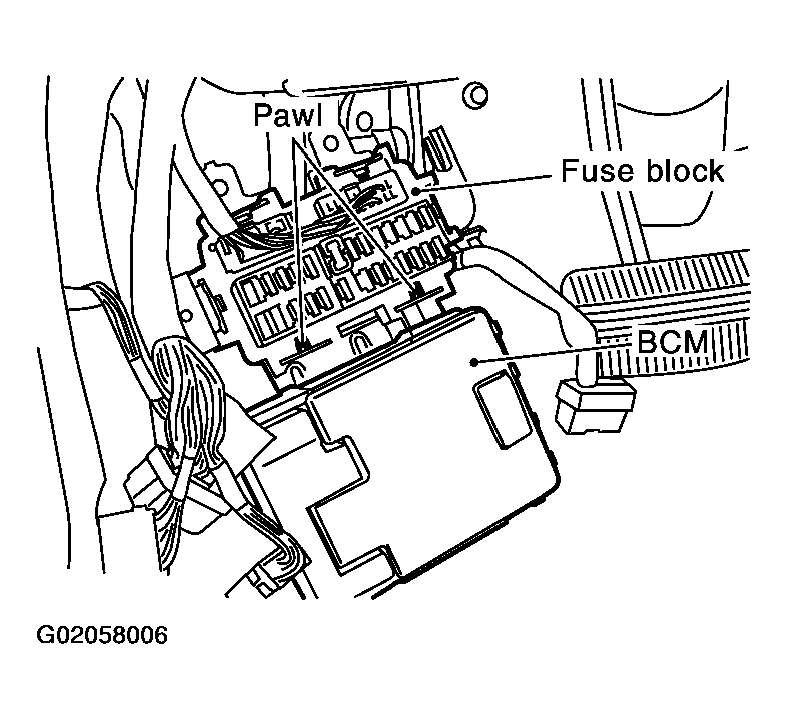

Fig 2: Removing BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
