Trouble Diagnosis Symptom Chart

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check that other systems using the signal of the following systems operate normally.

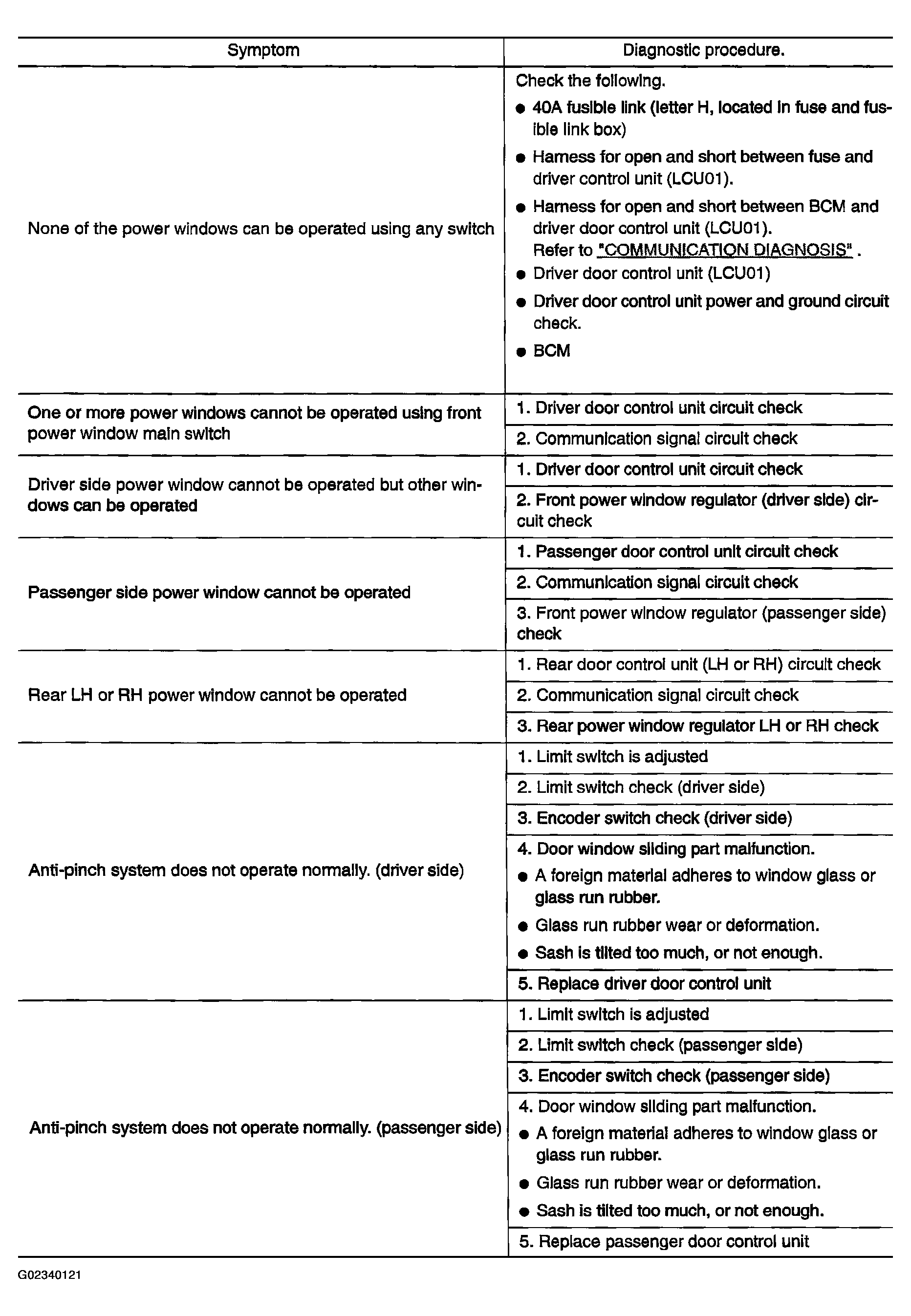

Fig 1: Trouble Diagnosis Symptom Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

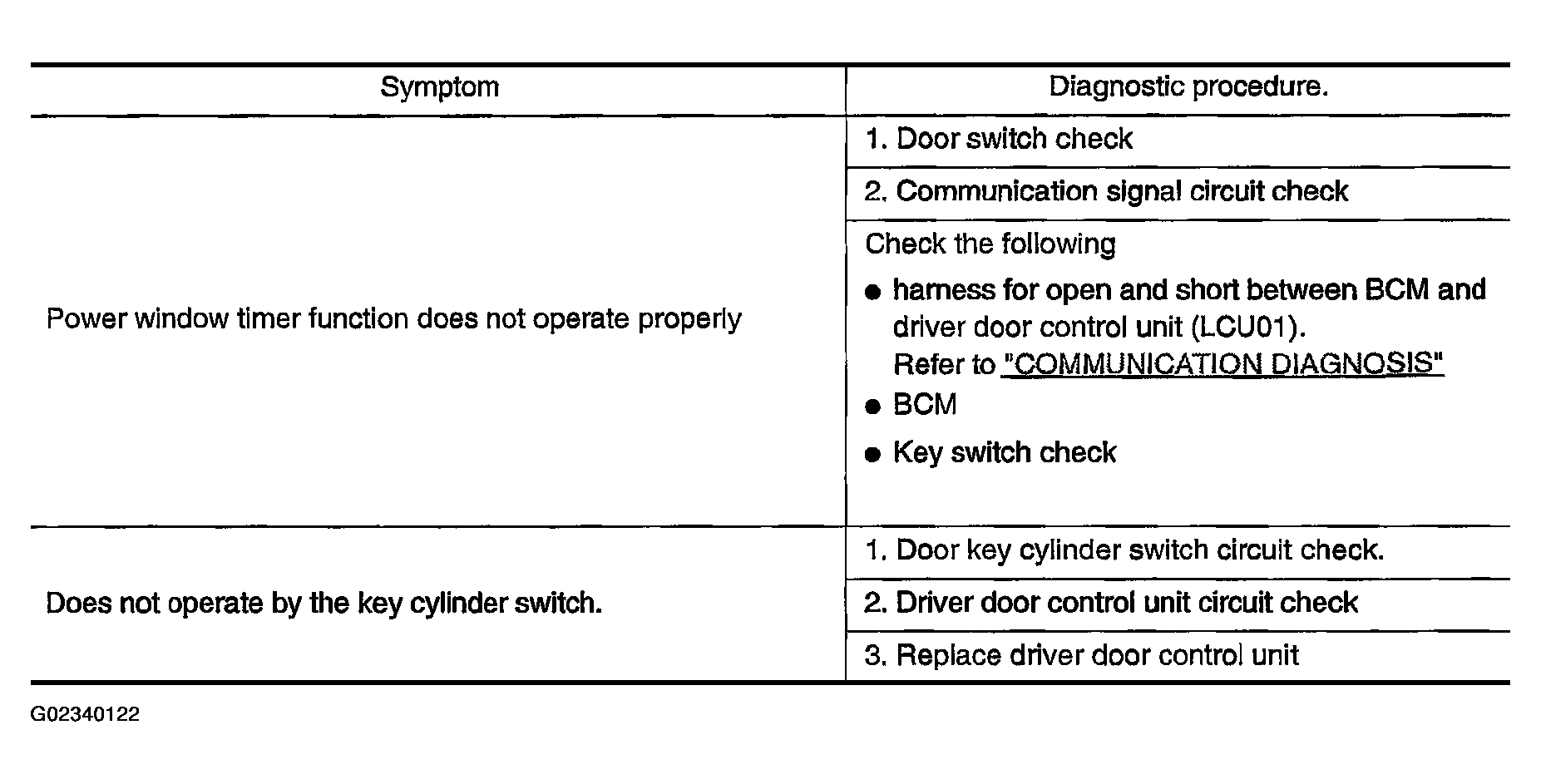

Fig 2: Trouble Diagnosis Symptom Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
