Checking Fluid Level

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Stop engine before performing a fluid level check.
Ensure that the fluid level is between the MAX range and MIN range.
Because the fluid level differs within the HOT range and the COLD range, check it carefully.
1. HOT : Fluid temperatures from 50 to 80°C (122 to 176°F)
2. COLD : Fluid temperatures from 0 to 30°C (32 to 86°F)

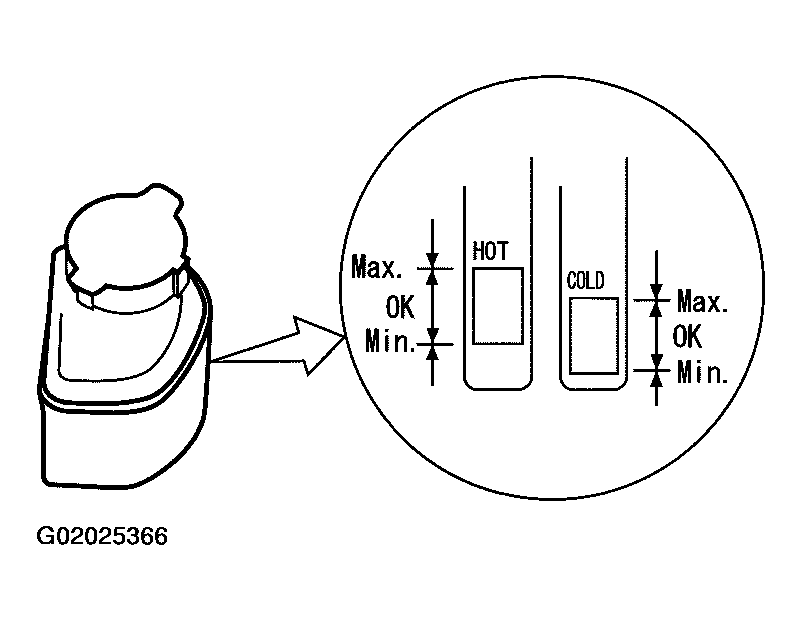

Fig 1: Identifying Correct Steering Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not overfill (above the MAX level) because it is cause of leaks from the cap portion.
- Do not reuse the drained power steering fluid.
- Recommended fluid is Genuine NISSAN PSF or equivalent. Do not use NISSAN PSF special and special and NISSAN matic fluid.
