Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

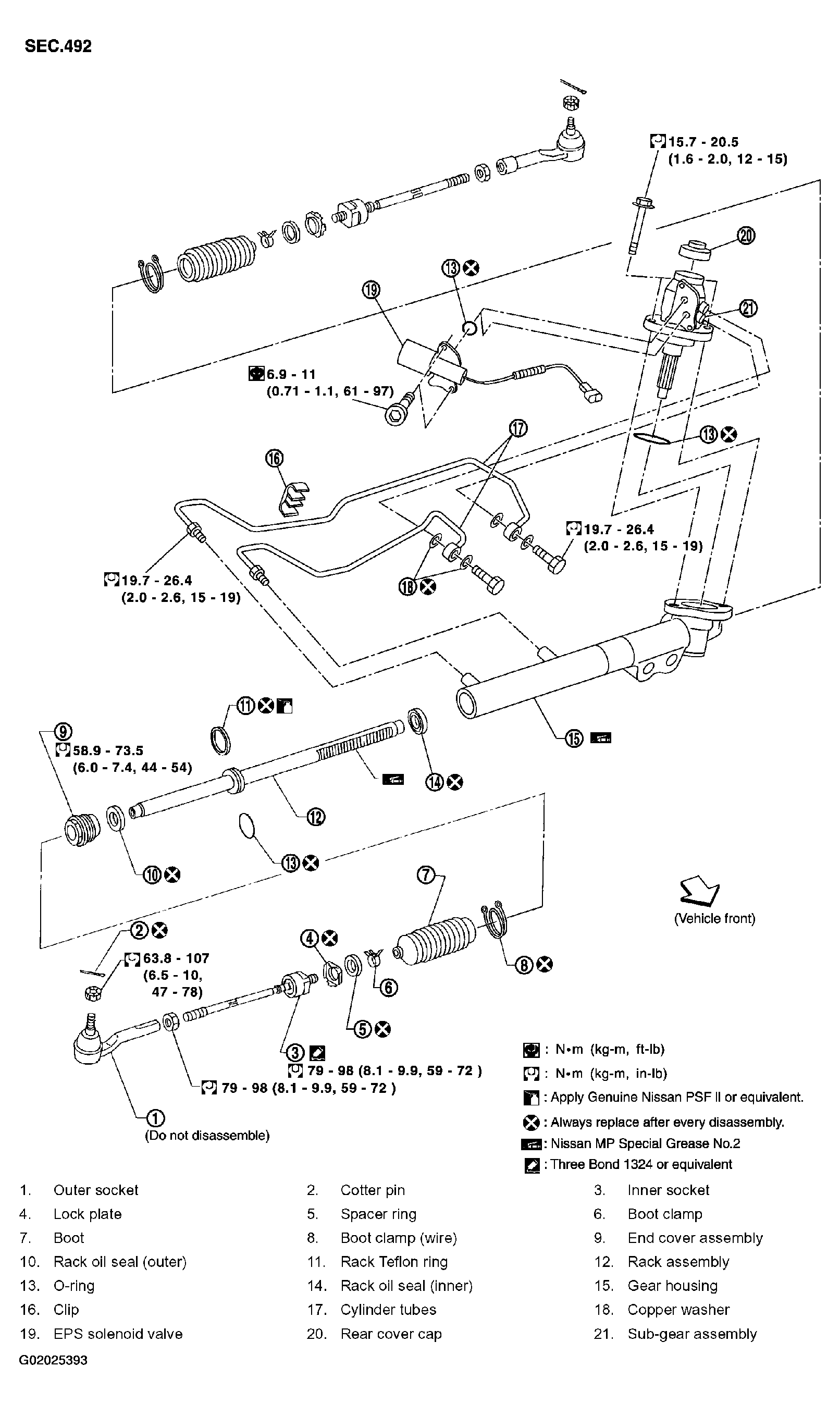

Fig 1: Exploded View Of Power Steering Gear And Linkage Components And Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Secure steering gear with a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder with a vise.
Before performing disassembly, clean power steering gear with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.
