On-Vehicle Service: Notes

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Checking condition of installation Check installation condition of steering gear assembly, front suspension, axle and steering column.
Check if movement exists when steering wheel is moved up and down, to the left and right and to the axial direction.
1. End play of the axle direction for steering wheel:0 mm (0 in)
Check if the mounting bolts for the steering gear are loose or not.

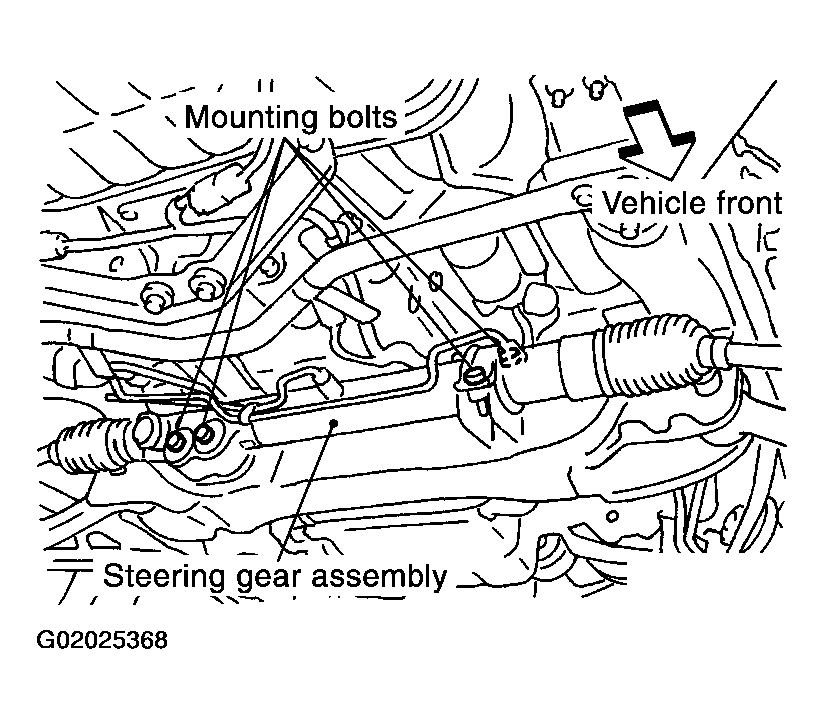

Fig 1: Locating Steering Gear Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Tightening torque:135 - 164 N.m (14-16 kg-m, 100 - 120 ft-lb)
