CHECK FRONT DOOR SWITCH INPUT SIGNAL
With CONSULT-II

Check front door switch ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

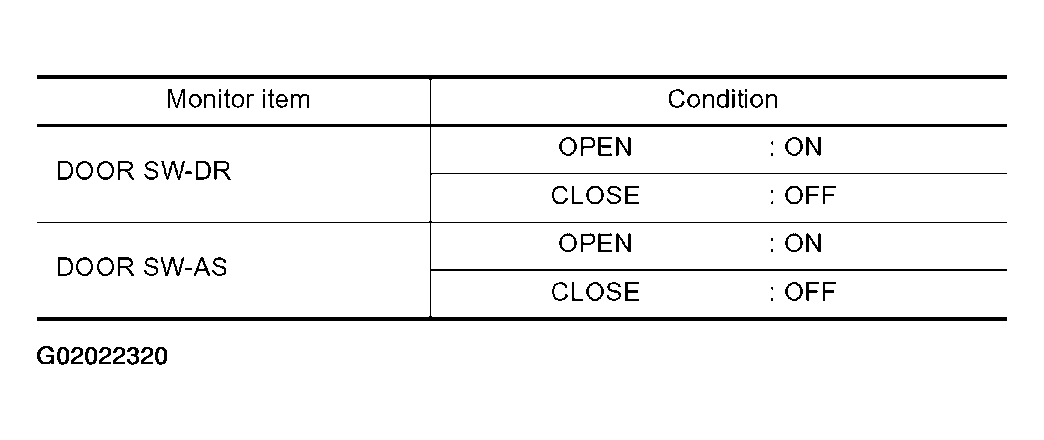

Fig 1: Identifying Front Door Switch Input Signal Table
Courtesy of NISSAN MOTOR CO., U.S.A.

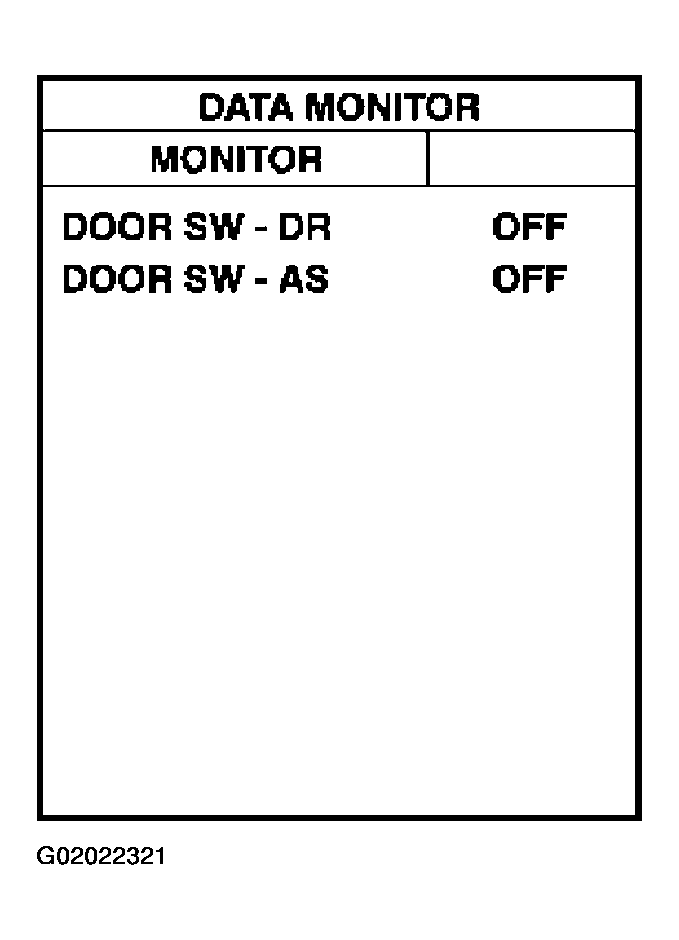

Fig 2: Display Data Monitor Sheet With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check front door switch in "SWITCH MONITOR" mode. Refer to "SWITCH MONITOR ".

OK or NG

OK >> Front door switch is OK.

NG >> GO TO 2
CHECK FRONT DOOR SWITCH
1. Turn ignition switch OFF.
2. Disconnect front door switch connector and BCM connector.
3. Check continuity between front door switch connector B20 (driver side), B220 (passenger side) terminal 1 (R/Y, LG) and BCM connector B4, M4 terminal 142 (R/Y), 37 (LG).
  1. Driver side door switch 1 (R/Y) - 142 (R/Y) : Continuity should exist.
  2. Passenger side door switch 1 (L/G) - 37 (LG) : Continuity should exist.
4. Check continuity between front door switch connector B20 (driver side), B220 (passenger side) terminal 1(R/Y, LG) and ground.
  1. Each door switches
  2. 1 (LG, R/Y) - Ground :Continuity should not exist.
OK or NG

OK >> GO TO 3.

NG >> Repair or replace harness.

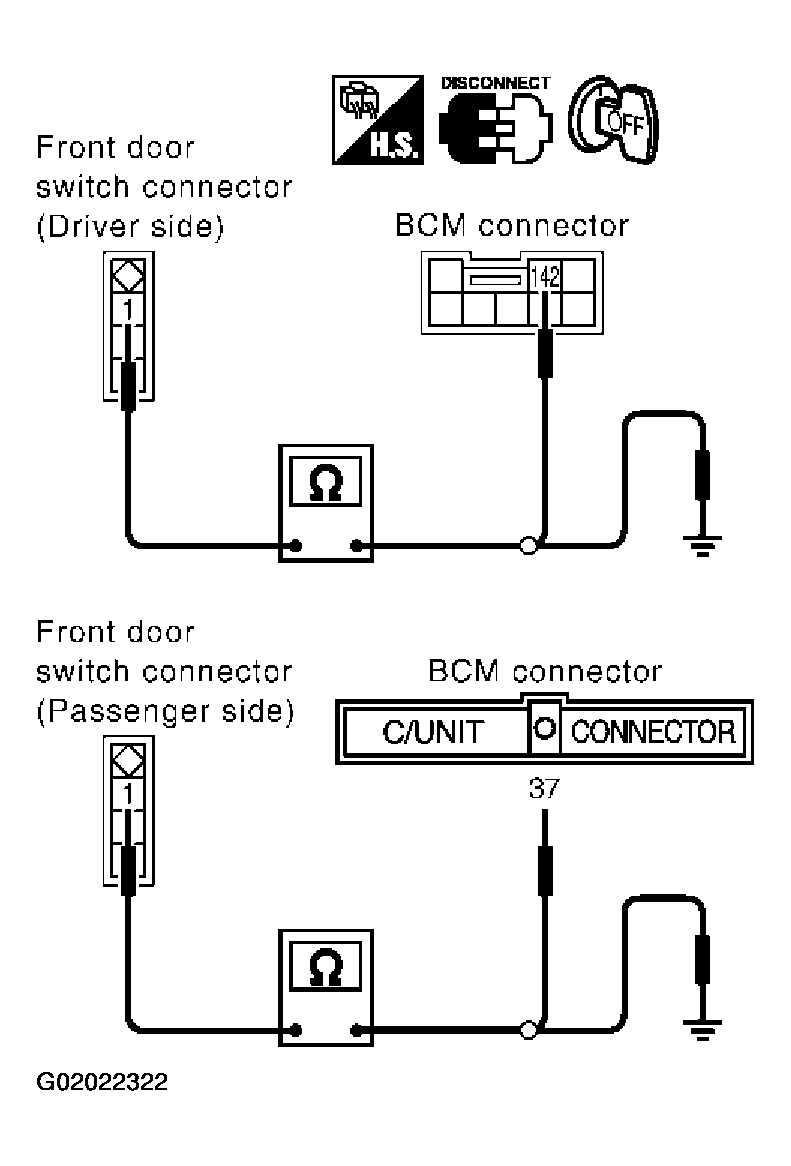

Fig 3: Identifying Front Door Switch Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK FRONT DOOR SWITCH
Check continuity between front door switch connector B20 (driver side), B220 (passenger side) terminal 1 and ground part of door switch.

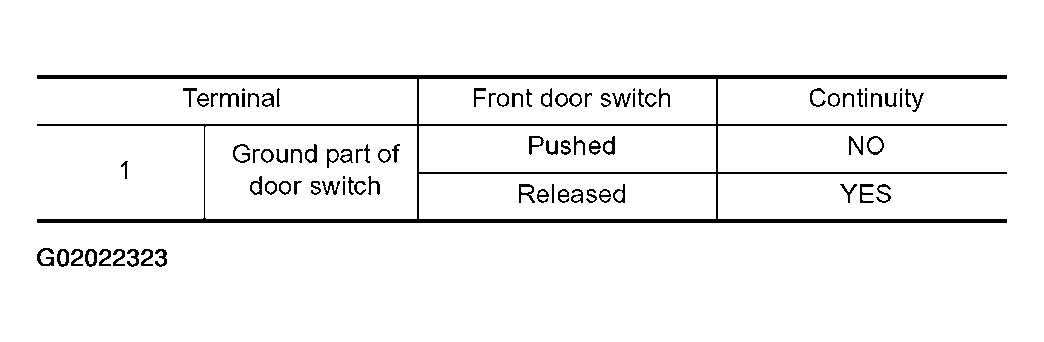

Fig 4: Identifying Front Door Switch Terminal Table
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Check door switch case ground.

NG >> Replace malfunction front door switch.

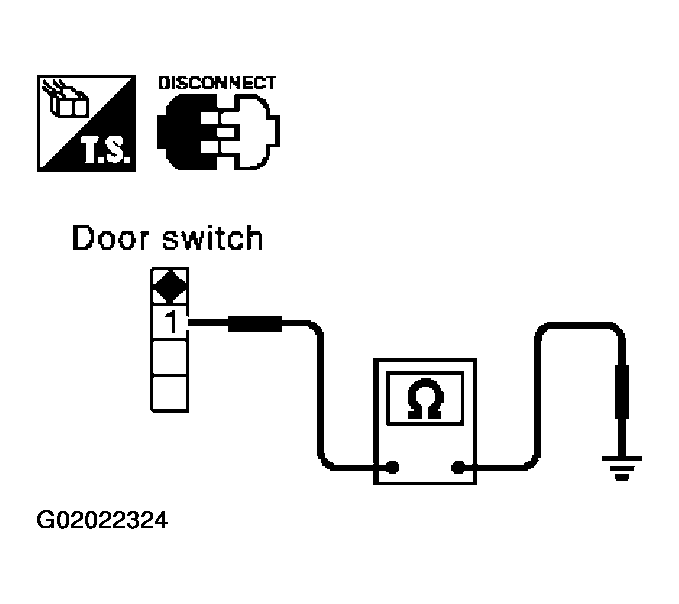

Fig 5: Identifying Front Door Switch Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
