Check Trunk Lid Opener Actuator

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Before carrying out the following diagnosis, check that the trunk opener cancel switch is turned ON.

CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect trunk lid opener actuator connector.
3. Check voltage between trunk lid opener actuator connector B265 terminal 1 (PU/W) and ground.
  1. 1 (PU/W) - Ground : Battery voltage

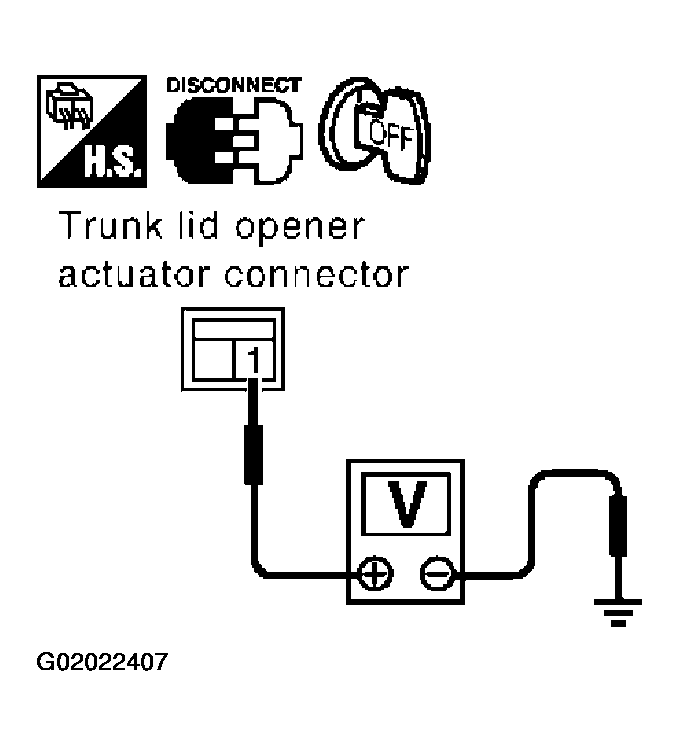

  Fig 1: Checking Voltage Between Trunk Lid Opener Actuator Connector B265 Terminal 1 (PU/W) & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK >> GO TO 2.

NG >> Check the following.
- 10A fuse [No. 15, located in the fuse block (J/B) No. 1]
- Harness for open and short between trunk lid opener actuator and fuse
CHECK TRUNK LID OPENER ACTUATOR

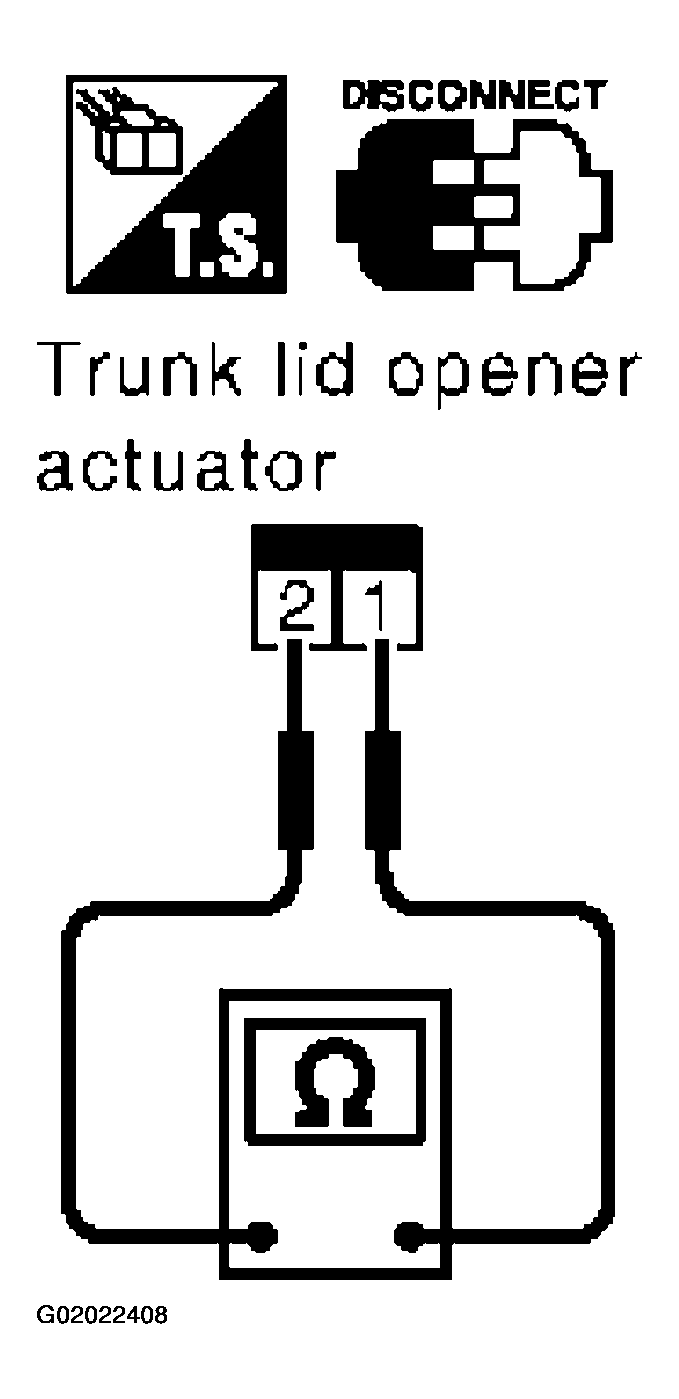

Check continuity between trunk lid opener actuator terminals 1 and 2.
1. 1 - 2 : Continuity should exist.
OK or NG

OK >> GO TO 3.

NG >> Replace trunk lid opener actuator.
CHECK TRUNK LID OPENER RELAY CIRCUIT
1. Remove electronic key from ignition key cylinder.
2. Connect trunk lid opener actuator connector.

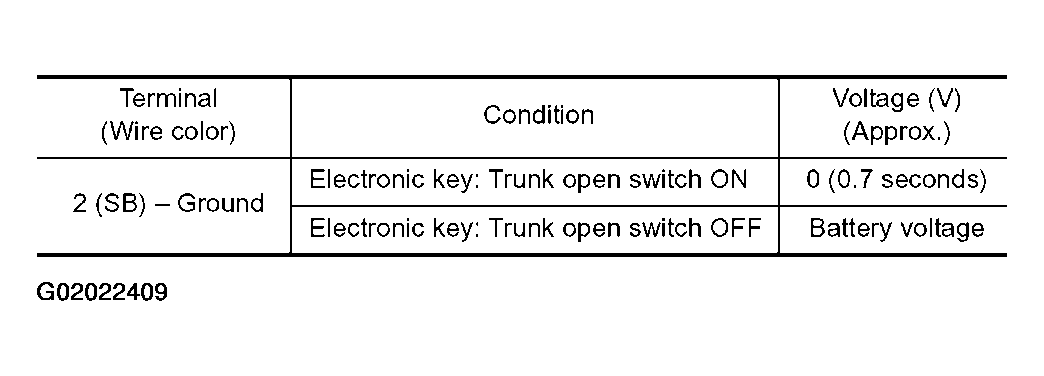

3. Check voltage between trunk lid opener actuator connector B265 terminal 2 (SB) and ground.

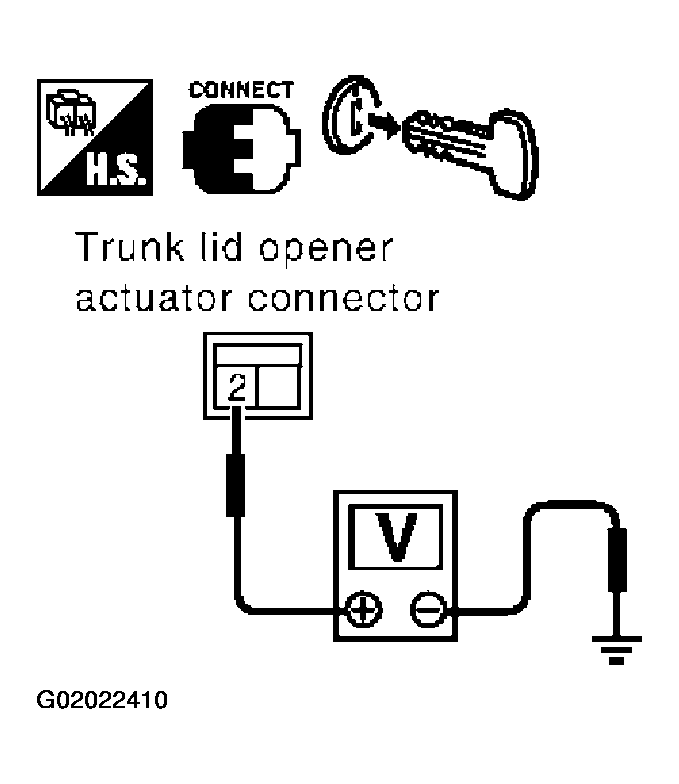

  Fig 3: Trunk Lid Opener Actuator Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 4: Checking Voltage Between Trunk Lid Opener Actuator Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK >> Trunk lid opener actuator circuit is OK.

NG >> Check the following.
- Harness between trunk lid opener actuator and trunk lid opener relay.
- Harness between trunk lid opener relay and ground.
- Trunk lid opener relay
